KMPC885CVR133

The KMPC885CVR133 is a single‑core, 32‑bit MPC8xx microprocessor operating at 133 MHz. Built on Power Architecture™ technology, the device integrates core processing, communications and system integration functionality for embedded and networking applications.

Designed for controller, communications and industrial embedded systems, the KMPC885CVR133 combines a high‑performance core with on‑chip peripheral subsystems—Ethernet controllers, USB 2.0, communications processor module (CPM) and security co‑processing—delivering a compact, RoHS‑compliant solution for designs that require integration, extended temperature operation and hardware cryptography support.

Key Features

• Core Single‑issue MPC8xx 32‑bit core at 133 MHz with integrated MMU and 8 KB instruction and 8 KB data caches for efficient code and data handling.
• Bus and Frequency Modes External bus maximum frequency of 80 MHz; 133 MHz core frequency supports 2:1 mode per device specifications.
• Co‑processors & Security On‑chip Communications Processor Module (CPM) and Security (SEC) blocks with hardware cryptography features for secure communications processing.
• Memory Controller Integrated DRAM controller to support system memory interfacing.
• Connectivity Multiple Ethernet controllers (three 10 Mbps ports and two 10/100 Mbps ports), one USB 2.0 interface and HDLC/SDLC support for common communications protocols.

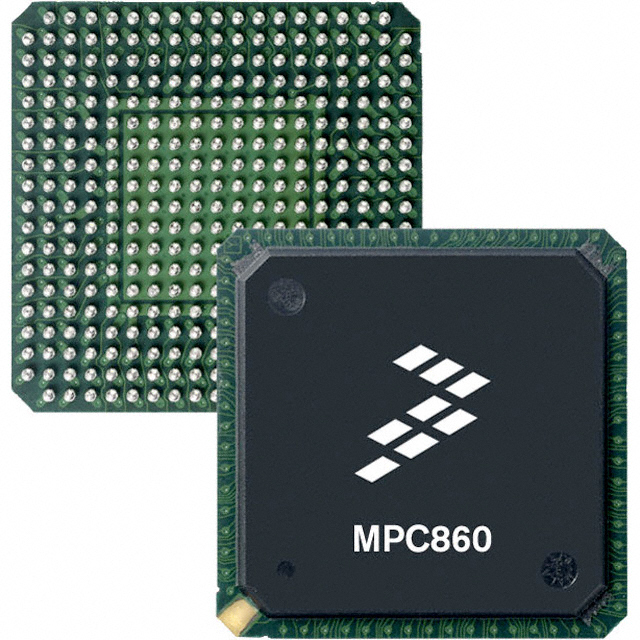

• Package & Mounting 357‑pin PBGA (25 × 25 mm) package, surface‑mountable; package case listed as 357‑BBGA.
• Power & I/O 3.3 V I/O signaling for compatibility with common embedded interfaces.
• Operating Range & Qualification Industrial qualification with operating temperature range of −40 °C to 100 °C and RoHS compliance.

Typical Applications

• Networking & Communications Equipment Use in routers, gateways and network appliances that require multiple Ethernet ports, USB connectivity and dedicated communications processing.
• Embedded Controllers Integration into embedded control systems that need a 32‑bit core with MMU, cache and DRAM support.
• Secure Communications Devices Platforms requiring on‑chip cryptography and a dedicated security co‑processor for encrypted data handling.
• Industrial Systems Deployments in industrial environments that demand extended temperature operation and industrial qualification.

Unique Advantages

• Highly integrated communications capability: On‑chip CPM, multiple Ethernet controllers and USB 2.0 reduce external component count and simplify board design.
• Hardware security support: Built‑in security co‑processor and cryptography features enable secure data processing without adding external crypto engines.
• Deterministic single‑core architecture: Single‑issue 32‑bit core with MMU and caches provides predictable execution characteristics for embedded control and networking tasks.
• Industrial temperature range: Rated for −40 °C to 100 °C operation to support industrial and ruggedized applications.
• Standards‑oriented I/O levels: 3.3 V I/O simplifies interfacing with common peripherals and transceivers.

Why Choose KMPC885CVR133?

The KMPC885CVR133 delivers a balanced combination of processing, communications and security functionality in a single PBGA package. Its MPC8xx core, integrated CPM and security blocks, multiple Ethernet ports and USB make it well suited to embedded networking and secure communications designs that require consolidated functionality and industrial reliability.

For teams targeting compact, integrated embedded systems with extended temperature requirements, the KMPC885CVR133 offers a straightforward platform with hardware cryptography and DRAM support—helping reduce BOM complexity while maintaining a clear upgrade path within the MPC885 family.

Request a quote or submit a procurement inquiry for availability, lead times and pricing for the KMPC885CVR133.
