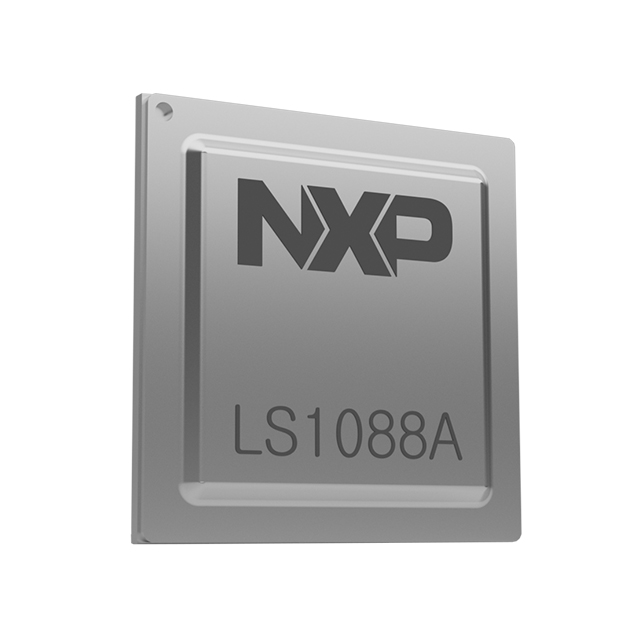

LS1088ASN7Q1A
| Part Description |
ARM® Cortex®-A53 Microprocessor IC QorIQ® Layerscape 8 Core, 64-Bit 1.6GHz 780-FBGA (23x23) |
|---|---|
| Quantity | 1,717 Available (as of October 8, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | LS1088A |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications & Environmental
| Core Processor | ARM® Cortex®-A53 | Device Package | 780-FBGA (23x23) | ECCN | 5A002A1 FRE | ||
|---|---|---|---|---|---|---|---|
| Ethernet | 10GbE (2), 1GbE (8) | HTS Code | 8542.31.0001 | Moisture Sensitivity Level | 3 (168 Hours) | ||
| Mounting Method | Surface Mount | Mounting Type | Surface Mount | Number of Cores/Bus Width | 8 Core, 64-Bit | ||
| Operating Temperature | 0°C ~ 105°C | Package / Case | 780-BFBGA, FCBGA | RAM Controllers | DDR4 | ||
| REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | SATA | SATA 6Gbps (1) | ||
| Security Features | Secure Boot, TrustZone® | Speed | 1.6GHz | Supplier Device Package | 780-FBGA (23×23) | ||
| USB | USB 3.0 (2) + PHY |
Overview of LS1088ASN7Q1A – IC MPU QORIQ 1.6GHZ 780FBGA
The LS1088ASN7Q1A is an NXP QorIQ Layerscape multicore microprocessor featuring up to eight ARM® Cortex®-A53 64-bit cores running at 1.6 GHz. It integrates high-performance datapath acceleration and a rich set of network and I/O interfaces targeted at intelligent edge, networking and industrial applications.
Designed for use cases such as intelligent edge access, NFV solutions, wireless access point control and virtual CPE, the device combines multicore ARM processing with NXP’s DPAA2 data path architecture and a supported software toolkit to simplify development in a Linux® environment.
Key Features
- CPU and Architecture – Eight ARM® Cortex®-A53 64-bit cores at up to 1.6 GHz, providing scalable general-purpose processing for control and data-plane tasks.
- Datapath Acceleration (DPAA2) – NXP’s second-generation datapath acceleration architecture provides hardware engines and infrastructure to offload and share networking functions across CPU cores.
- Memory – Integrated DDR4 memory controller for modern high-speed system memory support.
- Networking Interfaces – Multiple high-speed ports including 2 × 10GbE and 8 × 1GbE to support demanding networking and edge connectivity scenarios.
- High-speed I/O – Includes SATA 6 Gbps (1) and USB 3.0 with PHY (2) to support storage and peripheral connectivity; PCIe 3.0 and 4‑lane SerDes support are included in the device architecture.
- Security – Secure Boot and ARM® TrustZone® support provide foundational hardware security features for trusted system deployment.
- Software Ecosystem – Supported by NXP’s software development kit and a Linux development environment to accelerate bring-up and application development.
- Package and Mounting – 780‑FBGA (23×23) FCBGA package for surface-mount applications.
- Operating Range & Compliance – Operating temperature range 0 °C to 105 °C and RoHS compliant; device qualification is listed as Consumer.
Typical Applications
- Intelligent Edge Access – Edge gateways and access nodes utilizing multicore processing and DPAA2 acceleration for real-time packet processing and service delivery.
- Network Function Virtualization (NFV) – Virtualized network appliances and service functions that leverage multicore ARM processing and hardware offload engines for packet acceleration.
- Wireless Access Point Control – Control-plane and data-path processing for enterprise and carrier wireless access equipment.
- Virtual CPE and iNIC – Customer premises equipment and intelligent NICs that require integrated networking, storage and security capabilities.
- Industrial Applications – High-performance industrial controllers and gateways benefiting from multiport Ethernet, robust I/O and secure boot features.
Unique Advantages
- Integrated Datapath Acceleration: DPAA2 offloads networking tasks from general-purpose cores, reducing CPU load and simplifying traffic sharing across cores.
- Broad, High-Speed Connectivity: Native support for 10GbE, 1GbE, SATA 6 Gbps and USB 3.0 plus PCIe/SerDes enables flexible system and peripheral integration.
- Scalable Multicore Processing: Eight ARM Cortex-A53 64-bit cores running at up to 1.6 GHz provide headroom for compute-intensive networking and edge workloads.
- Security Foundation: Secure Boot and TrustZone® support enable deployment of trusted platforms and protected execution environments.
- Development Ecosystem: NXP’s SDK and Linux-focused tooling accelerate software development and integration for communications and edge applications.
- Compact, Surface-Mount Package: 780‑FBGA (23×23) package supports dense board designs while providing the I/O required for networking systems.
Why Choose LS1088ASN7Q1A?
The LS1088ASN7Q1A positions itself as a highly integrated communications processor combining multicore ARM® Cortex®-A53 performance with NXP’s DPAA2 datapath acceleration and a comprehensive set of high-speed interfaces. This balance of compute, acceleration and connectivity makes it suitable for intelligent edge, NFV and industrial gateway designs that demand both software flexibility and efficient packet processing.
Supported by NXP’s software toolkit and a Linux-based development environment, the LS1088ASN7Q1A offers scalability and a vendor-backed ecosystem that helps reduce development time and streamline deployment of secure, connected systems.
Request a quote or submit a pricing inquiry to get availability and lead-time details for the LS1088ASN7Q1A.
