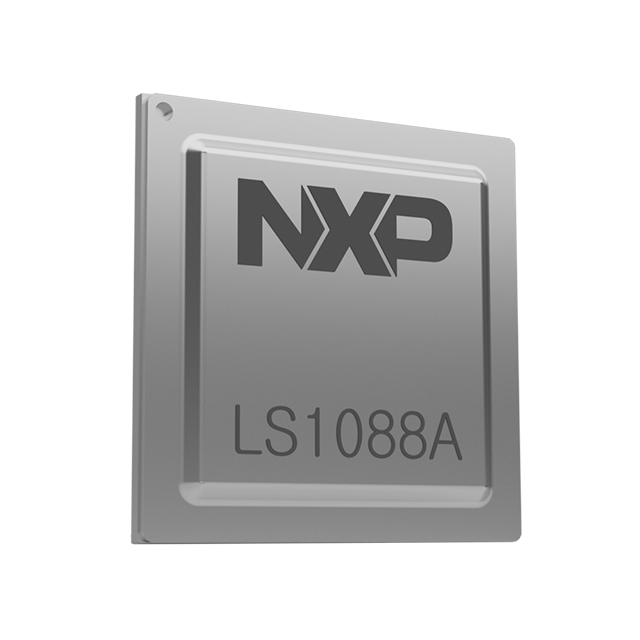

LS1088AXE7Q1A

The LS1088AXE7Q1A is an NXP QorIQ Layerscape microprocessor featuring up to eight ARM® Cortex®-A53 64-bit cores running at 1.6 GHz. It combines high-performance general-purpose CPU cores with NXP’s DPAA2 datapath acceleration architecture and integrated networking interfaces to address intelligent edge, networking infrastructure and industrial embedded applications.

Designed for demanding embedded environments, this industrial-qualified device provides a balance of compute performance, packet-processing acceleration and a broad set of I/O for high-bandwidth connectivity and system integration.

Key Features

• Core and Architecture  Up to eight ARM® Cortex®-A53 64-bit cores with a maximum frequency of 1.6 GHz, delivering multicore processing suitable for virtualized and Linux-based workloads.
• Datapath Acceleration (DPAA2)  NXP’s second-generation DPAA2 datapath architecture provides hardware acceleration and resource sharing for networking and packet-processing tasks, enabling offload of key functions from the CPUs.
• Memory  Integrated 64-bit DDR4 memory controller for high-bandwidth system memory support.
• Networking  High-density Ethernet: two 10GbE ports and eight 1GbE ports for scalable connectivity in access and edge designs.
• Storage and USB  One SATA 6Gbps interface and two USB 3.0 ports with PHY provide native high-speed storage and peripheral connectivity.
• Peripheral and Expansion  Multiple high-speed interfaces including PCIe 3.0 and 4-lane SerDes as described in the processor block diagram for system expansion and high-throughput I/O.
• Security  Hardware-supported Secure Boot and ARM TrustZone® for platform integrity and isolation of secure workloads.
• Package and Mounting  780-ball FCBGA package (780-FBGA, 23×23) in a surface-mount form factor suitable for dense board-level integration.
• Operating Range and Qualification  Industrial qualification with an operating temperature range of −40 °C to 105 °C.
• Software Ecosystem  Supported by NXP’s software toolkit and SDK that deliver foundational technologies for user space, fast path and virtualization, facilitating Linux-based development and deployment.

Typical Applications

• Intelligent Edge Access  Use as a compute and datapath engine for edge devices that require packet acceleration and multi-core processing.
• NFV Solutions  Deploy in network function virtualization environments where DPAA2 acceleration and multicore Linux support help offload and scale virtual network functions.
• Wireless Access Point Control  Serve as the control-plane processor for high-performance wireless access points requiring multiple Ethernet interfaces and USB/SATA connectivity.
• Virtual CPE (vCPE)  Implement virtualized customer-premises equipment where integrated networking, security features and SDK support simplify system software.
• Industrial Systems  Integrate into industrial communications and control platforms that demand industrial qualification and extended temperature operation.

Unique Advantages

• High-performance multicore compute: Eight ARM Cortex-A53 64-bit cores at up to 1.6 GHz provide parallel processing headroom for complex embedded workloads.
• Built-in datapath acceleration: DPAA2 provides hardware acceleration and resource-sharing for networking tasks, reducing CPU overhead for packet processing.
• Broad, high-speed connectivity: On-chip 10GbE and 1GbE interfaces, SATA 6Gbps and USB 3.0 with PHY minimize external controllers and simplify BOM.
• Security-first platform: Secure Boot and TrustZone® support enable hardware-backed platform integrity and secure workload separation.
• Industrial-grade operation: Qualified for industrial use with −40 °C to 105 °C operation, supporting deployment in temperature-challenging environments.
• Software tooling and SDK: NXP’s SDK and software toolkit deliver foundational technologies for fast-path, virtualization and Linux development to accelerate time to market.

Why Choose LS1088AXE7Q1A?

The LS1088AXE7Q1A positions itself as a highly integrated communications processor for embedded and edge networking designs that require multicore compute, hardware datapath acceleration and dense I/O. Its combination of ARM® Cortex®-A53 cores, DPAA2 acceleration, comprehensive networking interfaces and industrial qualification makes it suitable for systems that need reliable packet processing and long-term software support.

Engineers and system designers benefit from its scalable performance, integrated connectivity and the NXP software ecosystem, enabling efficient system-level design and deployment for NFV, vCPE, wireless infrastructure and industrial applications.

Request a quote or submit a product inquiry for LS1088AXE7Q1A to receive pricing and availability information for your next design.
