MC68HC000CRC16

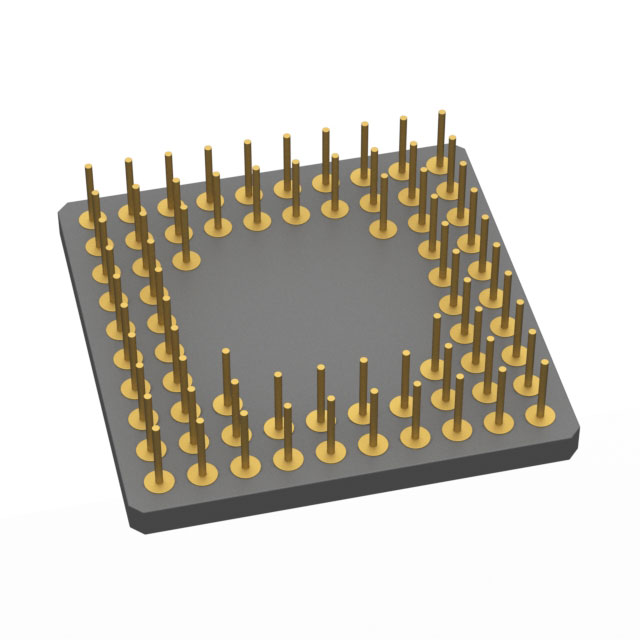

The MC68HC000CRC16 is a single-core EC000 microprocessor in the MC68HC000 series from NXP Semiconductors. It implements a 32-bit core running at 16 MHz and is supplied in a 68‑pin PGA package (26.92 × 26.92 mm).

Designed for embedded applications, this industrial‑qualified device is specified for a 5 V I/O environment and an operating temperature range of −40 °C to 85 °C. The part is RoHS compliant and supplied in a through‑hole 68‑PGA mounting format.

Key Features

• Core EC000 single-core implementation with a 32-bit internal data path.
• Operating Speed 16 MHz clock frequency suitable for a broad range of embedded control tasks.
• Supply and I/O 5 V I/O voltage specified for compatibility with 5 V logic domains.
• Industrial Qualification Rated for industrial use with an operating temperature range of −40 °C to 85 °C.
• Package 68‑PGA (26.92 × 26.92 mm) package case (68‑BCPGA) in a through‑hole mounting format.
• Regulatory RoHS compliant.
• Documentation Part of the MC68000 family with supporting user manual and reference documentation for system integration.

Typical Applications

• Industrial Control Use in industrial embedded controllers and automation equipment that require industrial temperature qualification.
• Embedded Systems General embedded processor duties in systems designed around the M680x0 architecture.
• Legacy and Migration Designs Replacement or refurbishment of legacy M680x0‑based equipment where a 32‑bit EC000 core is required.
• Prototyping and Development Through‑hole 68‑PGA package supports board‑level prototyping and hardware evaluation.

Unique Advantages

• Industry‑rated temperature range: −40 °C to 85 °C operation supports deployment in industrial environments.
• Classic M680x0 architecture: Part of the MC68000 family with reference documentation available for developers working with the series.
• Through‑hole 68‑PGA package: Standard 68‑pin PGA footprint (26.92 × 26.92 mm) suitable for designs that prefer through‑hole mounting and board‑level servicing.
• 5 V I/O compatibility: Direct compatibility with 5 V logic systems commonly found in existing embedded designs.
• RoHS compliant: Conforms to RoHS requirements for environmentally conscious product designs.

Why Choose MC68HC000CRC16?

The MC68HC000CRC16 provides a documented, industrial‑qualified 32‑bit EC000 core in a 16 MHz microprocessor package from NXP Semiconductors. Its combination of 5 V I/O, through‑hole 68‑PGA packaging and −40 °C to 85 °C operating range makes it a practical choice for embedded engineers working with M680x0‑based systems or upgrading legacy designs.

This part is well suited for projects that require a known MC68000‑series architecture, clear reference documentation, and RoHS compliance. It is appropriate for designers seeking a solution that matches the MC68HC000 series specification set and package format.

Request a quote or submit a pricing and availability inquiry to receive detailed ordering information and lead‑time for the MC68HC000CRC16.
