MC68HC000CRC12

The MC68HC000CRC12 is a single-core EC000 microprocessor from the MC68HC000 series, offering a 32-bit core architecture operating at 12 MHz. Designed for embedded applications, this device is qualified for industrial use and packaged in a 68-pin PGA (26.92×26.92 mm) suitable for through-hole mounting.

With 5 V I/O and an extended operating temperature range, the MC68HC000CRC12 is targeted at embedded and industrial designs that require a proven 68000-family architecture and serviceable package form factor.

Key Features

• Core  EC000 core processor, single-core 32-bit architecture for deterministic embedded processing.
• Clock Speed  12 MHz operating frequency for control and processing tasks.
• Supply and I/O  5 V I/O specification compatible with legacy 5 V systems.
• Qualification  Industrial-grade qualification to support deployment in industrial environments.

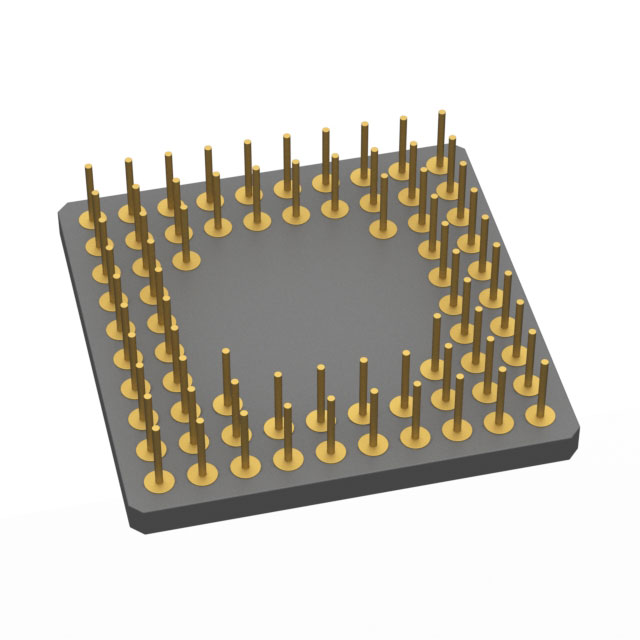

• Package  68-PGA (26.92×26.92 mm) supplier device package in a 68-BCPGA case, optimized for through-hole mounting and serviceability.
• Mounting Type  Through-hole mounting for robust mechanical retention and easier rework or repair.
• Operating Temperature  Rated for −40 °C to 85 °C to meet a wide range of environmental conditions.
• Standards Compliance  RoHS compliant, supporting regulatory requirements for lead-free assembly.
• Graphics  No graphics acceleration (no GPU), focused on CPU-based control and processing.

Typical Applications

• Industrial Control  Use in industrial embedded controllers where an industrial-qualified 32-bit core and extended temperature range are required.
• Embedded Systems  Integration into embedded devices leveraging the M680x0 family architecture for control and data processing tasks.
• Serviceable/Repairable Designs  Through-hole 68-PGA package suits applications that require straightforward replacement or field serviceability.
• Instrumentation and Test Equipment  Deterministic single-core processing in instrumentation where a 5 V I/O interface and industrial qualification are beneficial.

Unique Advantages

• Proven M680x0 Family Architecture: Belongs to the MC68HC000 series and is supported by detailed user documentation for engineers familiar with the 68000 architecture.
• Industrial Temperature Rating: −40 °C to 85 °C rating enables deployment in demanding ambient conditions.
• Through-Hole 68-PGA Packaging: 68-PGA (26.92×26.92 mm) package provides mechanical robustness and ease of replacement or prototyping.
• 5 V I/O Compatibility: Matches legacy 5 V system designs, simplifying integration into existing platforms that use 5 V signaling.
• RoHS Compliant: Supports lead-free assembly processes and regulatory requirements for modern manufacturing.
• Focused Processing Profile: Single 32-bit core without graphics acceleration concentrates device resources on CPU-driven embedded control and system tasks.

Why Choose MC68HC000CRC12?

The MC68HC000CRC12 delivers a practical combination of the EC000 32-bit core, industrial qualification, and a serviceable 68-PGA through-hole package. It is well suited to designers who need a deterministic single-core processor with 5 V I/O and extended temperature capability for embedded and industrial applications.

Backed by MC68000-series documentation and NXP Semiconductors' product support materials, this device provides predictable integration into legacy and new designs where package serviceability and industrial robustness are important.

Request a quote or submit a procurement inquiry to obtain pricing and availability for the MC68HC000CRC12 and to begin integrating this industrial-qualified MC68HC000-series microprocessor into your next embedded design.
