MC68HC000CRC10

The MC68HC000CRC10 is a single‑core EC000 microprocessor in the MC68HC000 series, offering a 32‑bit core implementation running at 10 MHz. Designed for embedded and industrial applications, it provides a classic M680x0 architecture in a through‑hole 68‑PGA package.

This part is specified for a 5 V I/O environment and rated for industrial temperature operation from -40 °C to 85 °C. It is RoHS‑compliant and supplied in a 68‑PGA (26.92 × 26.92 mm) package suitable for through‑hole mounting.

Key Features

• Core and Architecture EC000 core processor implementing a single 32‑bit core from the MC68HC000 family, offering established M680x0 architecture compatibility.
• Clock Speed 10 MHz operating frequency for deterministic, low‑speed embedded processing.
• Voltage and I/O 5 V I/O supply requirement suitable for legacy and industrial 5 V logic systems.

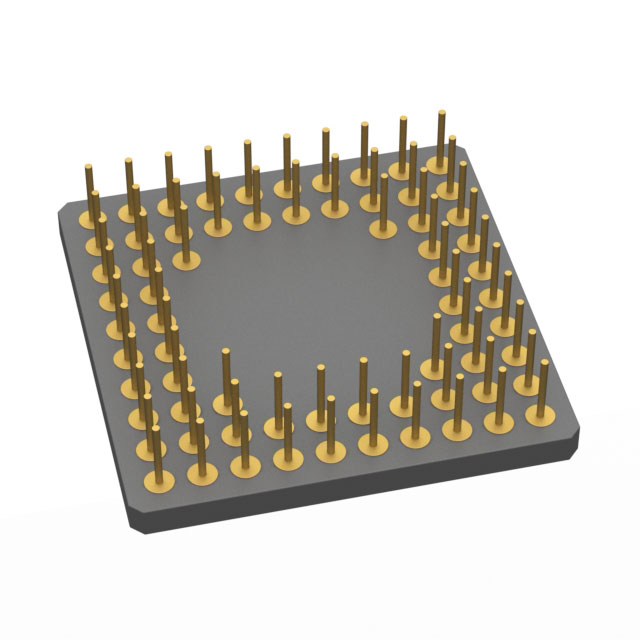

• Package and Mounting Supplied in a 68‑PGA (26.92 × 26.92 mm) package case (68‑BCPGA) with through‑hole mounting for robust board attachment and serviceability.
• Industrial Qualification Specified with an operating temperature range of -40 °C to 85 °C for industrial environments.
• Standards Compliance RoHS‑compliant for regulatory conformity in restriction of hazardous substances.
• Graphics Acceleration No graphics acceleration—suited for general embedded control and computation tasks rather than graphics processing.

Typical Applications

• Embedded Systems Suitable for embedded controller roles that leverage the M680x0 architecture within industrial or legacy embedded designs.
• Industrial Control Industrial qualification and extended temperature range make it appropriate for factory automation and process control electronics.
• Through‑Hole Prototyping and Repair The 68‑PGA through‑hole package supports serviceable boards, refurbishment, and designs that require robust mechanical mounting.
• Temperature‑Critical Equipment Operation from -40 °C to 85 °C supports use in systems exposed to broad environmental conditions.

Unique Advantages

• Proven M680x0 Architecture: Part of the MC68HC000 family and aligned with M68000 series documentation, providing predictable behavior for developers familiar with the architecture.
• Industrial Temperature Range: Rated to operate between -40 °C and 85 °C, enabling deployment in harsh or variable environments.
• Through‑Hole 68‑PGA Packaging: The 68‑PGA (26.92 × 26.92 mm) package with through‑hole mounting offers strong mechanical retention and ease of replacement or rework.
• 5 V I/O Compatibility: Direct compatibility with 5 V logic systems simplifies integration into existing 5 V infrastructures.
• RoHS Compliance: Meets RoHS requirements for restricted substance use, aiding regulatory compliance for product manufacturing.

Why Choose MC68HC000CRC10?

The MC68HC000CRC10 positions itself as a reliable, industrial‑rated microprocessor option within the MC68HC000 series, combining the established EC000 32‑bit core with a 10 MHz operating clock and 5 V I/O compatibility. Its through‑hole 68‑PGA package and extended temperature rating make it suitable for embedded and industrial designs where mechanical robustness and environmental resilience are important.

This device is appropriate for designs that prioritize a known M680x0 architecture footprint, straightforward integration into 5 V systems, and long‑term supportability through serviceable packaging and industry documentation for the M68000 family.

Request a quote or submit your procurement inquiry to receive pricing and availability for MC68HC000CRC10; include required quantities and any application-specific notes to accelerate response.
