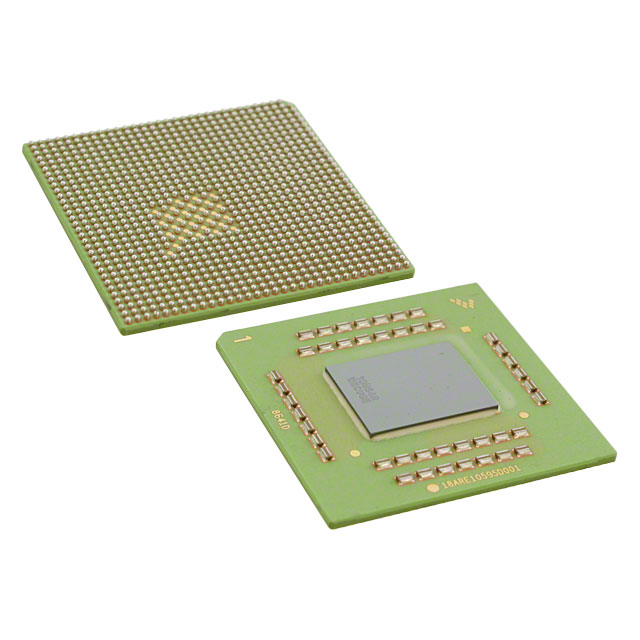

MC8640VU1067NE

The MC8640VU1067NE is a single‑core PowerPC e600 microprocessor operating at 1.067 GHz, designed for embedded applications that require integrated memory and high‑speed Ethernet connectivity. Its on‑chip DDR/DDR2 memory controllers and four 10/100/1000 Mbps Ethernet interfaces provide a compact building block for communication‑centric and compute‑constrained systems.

Packaged in a 994‑pad FCCBGA (33×33) surface‑mount package and specified for an extended junction temperature range of −40 to 105 °C, this MPC8640‑series device targets designs where integration, predictable performance, and robust operating range are important.

Key Features

• Processor Core & Performance Single PowerPC e600 core, 32‑bit architecture running at 1.067 GHz, suitable for single‑threaded embedded workloads.
• Memory Subsystem Integrated DDR and DDR2 memory controllers to support external system memory without additional controller components.
• High‑Speed Ethernet Four 10/100/1000 Mbps Ethernet interfaces for multi‑port LAN/WAN connectivity and networking integration.
• Power Supply Specification Core supply for the 1.067 GHz device is specified at 0.95 V ±50 mV (as documented for the MC8640 1067 MHz variants in the product addendum).
• Package & Mounting 994‑FCCBGA (33×33) supplier device package, surface‑mount tray option for board population and volume assembly.
• Extended Temperature Range Recommended junction temperature range from −40 to 105 °C, supporting operation across broad environmental conditions.

Typical Applications

• Network Appliances Leveraging four gigabit Ethernet interfaces and integrated memory controllers for routing, switching, and gateway functions.
• Embedded Communication Systems Single‑core PowerPC performance and multi‑port Ethernet for protocol handling, control plane tasks, and packet processing.
• Industrial Control Platforms Extended junction temperature range and surface‑mount BGA packaging for deployment in industrial embedded equipment.

Unique Advantages

• Integrated Networking Interfaces Four onboard 10/100/1000 Mbps Ethernet interfaces consolidate multi‑port connectivity within a single device.
• Memory Controller Integration Built‑in DDR/DDR2 controllers simplify board design by reducing the need for separate memory controller ICs.
• Optimized Core Voltage Core supply specified at 0.95 V ±50 mV for the 1.067 GHz device, enabling predictable power and timing behavior per the device addendum.
• Broad Operating Temperature Rated for −40 to 105 °C junction temperatures to support a wide range of operating environments.
• Compact BGA Package 994‑pad FCCBGA (33×33) package provides a high‑density solution for systems requiring multi‑function integration in a small footprint.

Why Choose MC8640VU1067NE?

The MC8640VU1067NE combines a PowerPC e600 single‑core processor running at 1.067 GHz with integrated DDR/DDR2 memory controllers and four gigabit Ethernet interfaces, delivering a well‑integrated platform for embedded systems that demand consolidated communication and memory capabilities. Its specified core voltage and extended junction temperature range support stable operation across a variety of deployment conditions.

This part is suited to engineers and procurement teams building networking, communication, or industrial embedded products that benefit from onboard memory control and multi‑port Ethernet in a compact BGA package, providing a balance of performance, integration, and environmental robustness.

Request a quote or submit an RFQ today to check availability and pricing for the MC8640VU1067NE.
