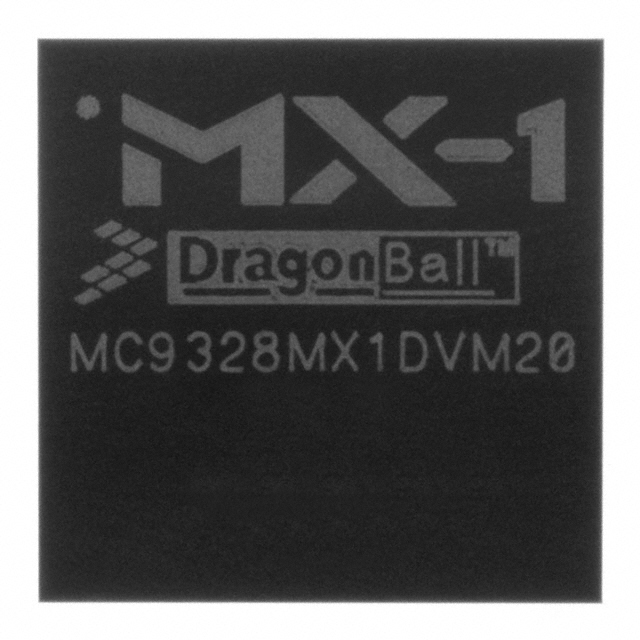

MC9328MX1DVM20R2

The MC9328MX1DVM20R2 is an i.MX1 series applications processor built around a single ARM920T 32-bit core running at up to 200 MHz. It targets compact, portable and multimedia-focused designs by combining an efficient processor core with a broad set of integrated system functions and peripheral controllers.

Designed for personal and portable products, the device integrates display, storage and connectivity interfaces along with power and clock control to simplify system design and accelerate time to market.

Key Features

• Processor Core  ARM920T 32-bit core operating up to 200 MHz for general-purpose embedded processing.
• Memory and Controllers  Integrated SDRAM controller and on-chip eSRAM (128K indicated in datasheet extract) to support system memory needs.
• Display and Human Interface  LCD controller and touch panel support for handheld and user-interface applications.
• USB and Storage  Built-in USB device controller and MMC/SD host controller plus Memory Stick® host controller for removable media and host/device connectivity.
• Serial and Peripheral Interfaces  Multiple UARTs, SPI modules, I2C bus module, synchronous serial interfaces (SSI/I2S) and SmartCard interface for broad peripheral support.
• Timers, RTC and DMA  Multiple timers, watchdog, real-time clock and a direct memory access controller (DMAC) for efficient system control and data movement.
• Analog and Multimedia Support  Analog Signal Processing (ASP) module and Bluetooth accelerator available in the i.MX1 family for multimedia and wireless features.
• Clock and Power Control  DPLL clock and power control modules to manage system timing and power consumption.
• Package and Mounting  256-contact MAPBGA package, surface-mountable for compact PCB integration.
• Operating Range and Compliance  Rated for operation from –30°C to 70°C and RoHS compliant.

Typical Applications

• Portable multimedia devices  Use the integrated LCD controller, audio interfaces and removable-media host controllers to deliver compact multimedia playback and user interfaces.
• Handheld and consumer electronics  Leverage the ARM920T core, SDRAM controller and a variety of serial interfaces for responsive handheld control and data handling.
• Human-machine interfaces  Combine the LCD and touch panel support with GPIO and UART/SPI peripherals for interactive control panels and kiosks.
• Embedded communication endpoints  Built-in USB device, I2C, UART and SPI make the device suitable for connected peripherals and accessory controllers.

Unique Advantages

• Highly integrated peripheral set: On-chip USB device, MMC/SD and Memory Stick host controllers, LCD controller and multiple serial interfaces reduce external component count and simplify BOM.
• Balanced performance and efficiency: ARM920T core at up to 200 MHz delivers embedded processing capability suitable for multimedia and control tasks while maintaining power-aware design through DPLL and power control modules.
• Compact packaging: 256-contact MAPBGA package enables dense, space-efficient board designs for portable products.
• Designed for portable multimedia market: Feature set—display, audio interfaces, removable media and ASP—aligns with the needs of personal and portable product designers seeking integrated multimedia functionality.
• Operational robustness: Specified for −30°C to 70°C operation and RoHS compliance for a broad range of embedded applications and environmental conditions.

Why Choose MC9328MX1DVM20R2?

The MC9328MX1DVM20R2 brings a cohesive combination of an ARM920T 200 MHz core and a wide array of integrated controllers tailored for portable and multimedia applications. Its integration of display, storage, serial and power-control modules reduces system complexity and supports compact designs.

As a member of the i.MX family, this processor is positioned for developers seeking a proven platform for handheld and user-interface devices where integration, predictable operating range and a focused peripheral set matter for product development.

Request a quote or submit an inquiry to obtain pricing and availability for the MC9328MX1DVM20R2 and to discuss how it fits your embedded design requirements.
