MC9328MX21SVK

The MC9328MX21SVK is an NXP Semiconductors i.MX21 family microprocessor featuring a single ARM926EJ-S 32‑bit core running at 266 MHz. Designed for embedded and portable applications, the device integrates CPU performance with a broad set of system peripherals and on-chip controllers to simplify system design and lower BOM cost.

Targeted at handheld and embedded markets, the MC9328MX21SVK combines processing efficiency and peripheral integration—making it suitable for devices that require user interfaces, removable storage, and flexible connectivity while operating within 0 °C to 70 °C.

Key Features

• Processor Core ARM926EJ-S 32‑bit core running at 266 MHz, offering accelerated Java support as described in the i.MX21 family documentation.
• Memory and Storage Controllers Integrated SDRAM controller and a NAND Flash controller with on‑chip ECC and parity checking to offload error correction from the CPU and enable use of low‑cost NAND Flash.
• Display and User I/O On‑chip LCD controller and keypad interface for compact user interface designs.
• USB Connectivity USB On‑The‑Go and host capability with two USB 1.x ports, enabling flexible peripheral and host connectivity options.
• Peripheral Interfaces Multiple serial and expansion interfaces noted in the product documentation, including 1‑Wire, CSPI, SSI, I2C, UART channels, MMC/SD host support, and PCMCIA/CF expansion paths.
• Audio and Multimedia Integrated audio multiplexing and synchronous serial interfaces to support basic audio and peripheral I/O needs.
• System and Debug Support On‑chip system control, power management features and JTAG/Multi‑ICE connectivity for development and debugging.

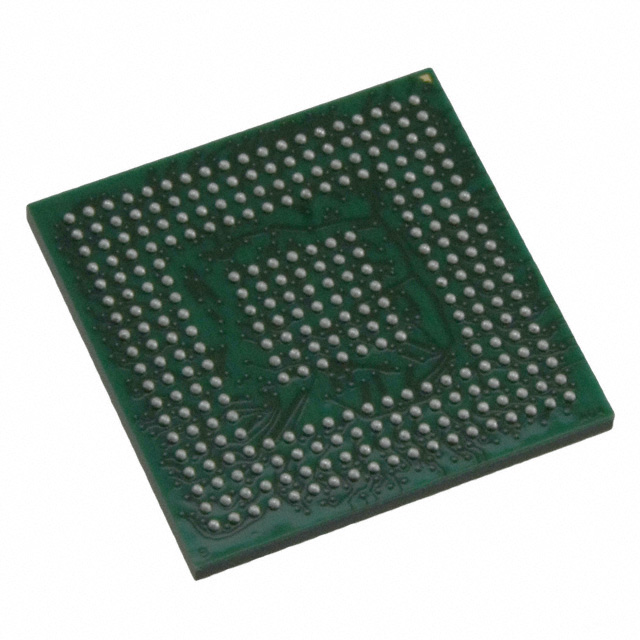

• Package and Mounting 289‑pin MAPBGA (289‑LFBGA) surface‑mount package with a 14×14 mm supplier package footprint.
• Operating Range and Compliance Operating temperature range 0 °C to 70 °C and RoHS compliant.

Typical Applications

• Portable Handheld Devices Compact handheld products that need a combined CPU and peripheral set for user interfaces and removable storage.
• Embedded User Interfaces LCD and keypad driven control panels and HMIs that benefit from an integrated display controller and serial interfaces.
• Connectivity‑Enabled Appliances Devices requiring USB OTG/host and removable media support for data exchange and expansion.
• Cost‑Sensitive Storage Designs Applications using NAND Flash with on‑chip ECC to reduce system complexity and manage non‑volatile storage reliably.

Unique Advantages

• Integrated System Peripherals: Built‑in LCD controller, keypad, USB OTG/host, and multiple serial interfaces reduce external components and simplify PCB layout.
• NAND Flash Support with ECC: On‑chip NAND controller and error correction offload CPU cycles and enable use of economical NAND storage.
• Flexible Connectivity: Two USB 1.x ports with OTG/host capability and standard expansion interfaces support a wide range of external peripherals and memory options.
• Development and Debug Support: JTAG/Multi‑ICE support and standard system control blocks streamline bring‑up and debugging.
• Compact, Industry‑Grade Packaging: 289‑pin MAPBGA in a 14×14 mm footprint provides high pin density for system integration while remaining surface‑mount compatible.
• Regulatory and Environmental Compliance: RoHS compliant to support environmentally conscious manufacturing requirements.
