MCIMX286CVM4B

The MCIMX286CVM4B is an NXP Semiconductors i.MX28 series applications processor featuring an ARM926EJ-S core running at up to 454 MHz. Designed for embedded industrial and consumer markets, the device combines a power-efficient processor core with integrated system-level features to support compact, connected products.

Typical use cases include human‑machine interfaces, industrial control and metering, handheld scanners and printers, portable medical devices, and media gateways where integration, industrial temperature range, and system-level power management are important.

Key Features

• Core — ARM926EJ-S single 32‑bit core operating up to 454 MHz for real‑time embedded processing.
• Memory and Controllers — On‑chip 128 KB SRAM (device-level detail from datasheet) and support for external memory interfaces including LVDDR, LVDDR2 and DDR2 for flexible memory configurations.
• Power Management — Integrated power management unit with a triple‑output DC‑DC switching converter and multiple linear regulators, providing power sequencing and system power control features as described in the i.MX28 datasheet.
• Connectivity — Integrated 10/100 Mbps Ethernet controller (1), dual USB 2.0 controllers with PHY (2), and additional interfaces including CAN for common embedded networking needs.
• Display and I/O — Display interface support for keyboard, LCD and touchscreen controllers to enable HMI and panel applications.
• Security — Hardware security features including boot security, cryptography support and a unique hardware ID to help enable trusted boot and device identity.
• Co-processor — DCP listed in product data for additional data processing support.

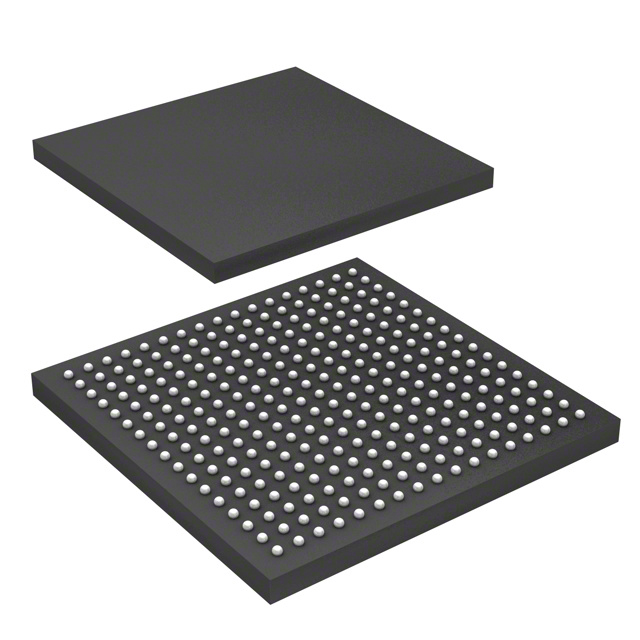

• Package and Mounting — 289‑MAPBGA package (14 × 14 mm, 0.8 mm pitch), surface‑mount assembly.
• Qualification and Temperature — Industrial qualification with an operating temperature range of −40 °C to 85 °C and RoHS compliance.

Typical Applications

• HMI Panels — Industrial and home human‑machine interfaces leveraging LCD and touchscreen controllers for responsive user control panels.
• Industrial Control — PLCs, factory robotics displays and drive control panels benefiting from the processor’s real‑time core and industrial temperature rating.
• Handheld Devices — Scanners and portable printers requiring compact integration, USB connectivity and on‑chip power management.
• Medical and Monitoring — Portable patient‑monitoring devices that need low‑power processing, secure boot capabilities and industrial temperature operation.
• Smart Energy and Gateways — Energy meters and gateways using Ethernet, CAN and robust power sequencing for reliable field operation.

Unique Advantages

• Highly integrated power management: On‑chip PMU with DC‑DC converter and linear regulators reduces external power components and simplifies power sequencing for memories and peripherals.
• On‑chip SRAM for compact RTOS designs: 128 KB on‑chip SRAM (documented in the i.MX28 datasheet) can eliminate the need for external RAM in small‑footprint RTOS applications.
• Industrial robustness: Industrial qualification and −40 °C to 85 °C operating range support deployment in demanding environments.
• Broad memory interface support: Controllers for LVDDR, LVDDR2 and DDR2 enable flexible memory choices to match performance and bill‑of‑materials targets.
• Multiple connectivity options: Integrated Ethernet, dual USB 2.0 with PHY and CAN support simplify system design for connected embedded products.
• Hardware security primitives: Boot security, cryptography support and a hardware ID provide foundations for secure device identity and trusted boot strategies.

Why Choose MCIMX286CVM4B?

The MCIMX286CVM4B positions itself as a compact, integrated application processor suitable for embedded industrial and consumer designs that require a balance of processing capability, system integration and industrial temperature operation. With the ARM926EJ‑S core at up to 454 MHz, integrated power management, on‑chip SRAM and native interfaces for Ethernet, USB and CAN, it targets designs that benefit from reduced board complexity and predictable system behavior.

Backed by NXP Semiconductors’ i.MX28 family documentation and package options, the MCIMX286CVM4B is a pragmatic choice for engineers developing HMIs, industrial controllers, handhelds, portable medical devices and energy gateways where integration, security foundations and industrial qualification matter.

Request a quote or submit an inquiry to receive pricing and availability information for the MCIMX286CVM4B. Our team can provide further technical details and support for integrating this i.MX28 device into your next embedded design.
