MCIMX31LVKN5

The MCIMX31LVKN5 is an NXP Semiconductors multimedia applications microprocessor based on the ARM1136JF-S core. This single-core, 32-bit device operates at 532 MHz and is positioned for embedded multimedia designs requiring on-chip acceleration and a compact surface-mount package.

Designed for portable and feature-rich consumer devices, the processor combines compute performance with integrated multimedia blocks and system-level security features to support applications such as mobile media players, cameras, handheld devices and user-interface driven products.

Key Features

• Core & Performance — ARM1136JF-S single-core, 32-bit processor running at 532 MHz for general-purpose embedded compute.
• Multimedia Engines — Integrated multimedia co-processors including GPU, Image Processing Unit (IPU), MPEG-4 hardware encoder and Vector Floating Point (VFP) to accelerate video and image workflows (datasheet notes MPEG-4 hardware encoder, IPU, and VFP).
• Memory Interfaces — DDR memory controller support for external DRAM connections.
• Display & Input — On-chip controllers for keyboard, keypad and LCD interfaces to simplify user-interface integration.
• Connectivity — USB 2.0 support (USB 2.0 (3) indicated) and additional 1-Wire interface for peripheral connectivity.
• Security Features — Built-in Random Number Generator, RTIC, Secure Fusebox, Secure JTAG and Secure Memory to support device security requirements.
• Power Management & Low-Power Design — Series-level power-saving techniques described in the datasheet (DPTC, DVFS, power gating, clock gating) and 90 nm technology with dual-Vt transistors to balance performance and leakage.

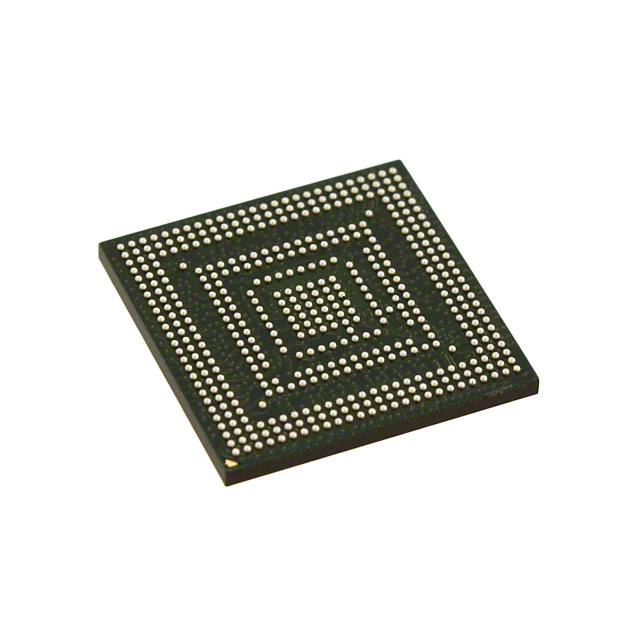

• Package & Mounting — 457-LFBGA surface-mount package (14 × 14 mm, 0.5 mm pitch) for space-constrained designs.
• Operating Range — Commercial operating temperature range: 0 °C to 70 °C.
• Environmental — RoHS compliant.

Typical Applications

• Feature-rich Cellular Phones — On-chip multimedia and display controllers enable integrated multimedia playback and user interfaces.
• Portable Media Players & Mobile Gaming — Hardware MPEG-4 encoder and graphics acceleration help offload media processing tasks.
• Personal Digital Assistants (PDAs) — Integrated I/O and display support streamline handheld device design.
• Portable DVD Players & Digital Cameras — Image Processing Unit and multimedia engines support video/image capture and encoding workflows.

Unique Advantages

• Integrated Multimedia Subsystem — GPU, IPU and MPEG-4 hardware encoder reduce external component count and system BOM for multimedia products.
• Single-Chip System Integration — On-chip display controllers, USB 2.0 support and 1-Wire interface consolidate peripheral interfaces and simplify board-level design.
• Security Building Blocks — Multiple hardware security features (RNG, Secure Fusebox, Secure JTAG, Secure Memory) help address device integrity and secure boot/use cases.
• Designed for Low-Power Operation — Datasheet-described low-power techniques and 90 nm process technology support power-optimized designs.
• Compact Surface-Mount Package — 457-LFBGA (14 × 14 mm) enables compact product layouts without sacrificing connectivity and multimedia capability.

Why Choose MCIMX31LVKN5?

The MCIMX31LVKN5 combines an ARM1136JF-S 32-bit core at 532 MHz with a set of integrated multimedia engines, memory interfaces and security features to deliver a balanced platform for consumer and handheld embedded designs. It is suited to developers seeking a compact, surface-mount multimedia processor with on-chip acceleration and system-level security.

Backed by NXP Semiconductors and documented in the MCIMX31 series technical data, this device provides a scalable foundation for product designs that require multimedia processing, user-interface control and connectivity while meeting commercial temperature and RoHS requirements.

Request a quote or submit your purchase inquiry for MCIMX31LVKN5 to obtain pricing, availability, and lead-time information.
