MCIMX536AVV8B

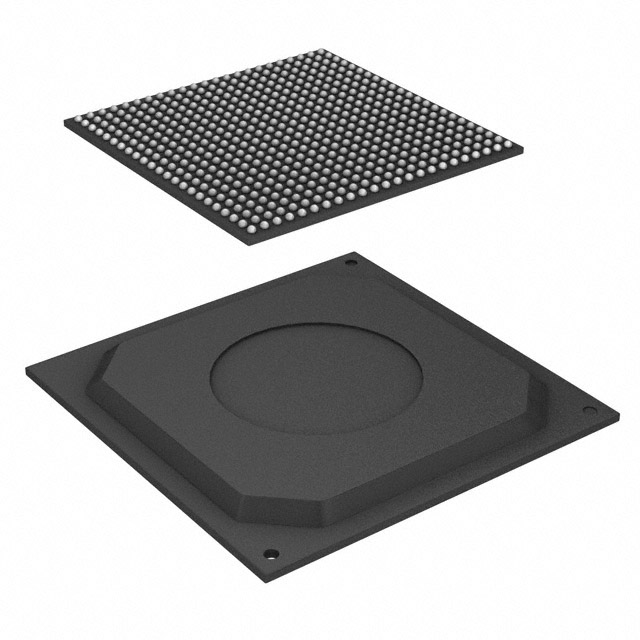

The MCIMX536AVV8B from NXP Semiconductors is a single-core ARM® Cortex®-A8 microprocessor running at 800 MHz in a 529-ball FBGA (19 × 19 mm) package. Designed for multimedia-focused embedded designs, the device integrates processing, graphics and video capabilities alongside a range of high-speed interfaces to support display, audio and data applications.

This i.MX 536 series device targets embedded systems that require integrated multimedia acceleration, flexible memory support and robust security features, delivering a compact, surface-mount package suitable for space-constrained boards.

Key Features

• Core  Single ARM® Cortex®-A8 core, 32-bit, operating at 800 MHz to handle application processing and control tasks.
• Multimedia & Co-Processors  Includes multimedia co-processors and NEON™ SIMD for accelerated audio, speech and media processing; integrated 2D/3D graphics and 1080i/p video processing capabilities are part of the i.MX53xA series architecture.
• Display & User Interface  Integrated display interface controllers supporting LCD and keypad functions, plus dual-display capability referenced in the series documentation for rich HMI and display applications.
• High-speed Interfaces  On-chip interfaces include 10/100 Mbps Ethernet (1) and SATA 1.5 Gbps (1) for networked and storage-connected embedded systems.
• Memory Support  Series documentation specifies compatibility with DDR2/LVDDR2-800, LPDDR2-800 and DDR3-800 memory interfaces for flexible system memory choices.
• Security Features  Hardware security capabilities include ARM TrustZone (ARM TZ), boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection.
• Package & Mounting  529-FBGA (19 × 19 mm) supplier device package with surface-mount construction, provided in tray packaging.
• Qualification & Documentation  Series documentation provides detailed electrical characteristics, boot configuration, package maps and module timing for system integration and validation.

Typical Applications

• Embedded Multimedia Platforms  Use for devices requiring integrated video and audio processing, graphics acceleration and responsive user interfaces.
• Human–Machine Interfaces (HMI)  Drives LCD-based control panels and display systems where dual-display and rich graphics are required.
• Navigation & Speech Processing  Supports high-performance speech processing and large database handling leveraging NEON™ SIMD and multimedia co-processors.
• Networked and Storage-Connected Systems  Integrates Ethernet and SATA for applications that combine data connectivity with local storage.

Unique Advantages

• Integrated Multimedia Engine  On-chip graphics and video processing reduce external component count and simplify board-level multimedia design.
• Flexible Memory Options  Support for multiple DRAM types (DDR2/LVDDR2/LPDDR2/DDR3 at 800 MHz class) lets designers choose the best cost/performance memory configuration.
• Comprehensive Security Suite  Built-in hardware security blocks—including TrustZone, cryptography and secure boot—help protect system integrity and sensitive data.
• Compact, High-Density Package  529-FBGA (19 × 19) package provides a high pin count in a compact footprint for space-constrained embedded PCBs.
• Designed for Multimedia Workloads  NEON™ SIMD and multimedia co-processors accelerate signal processing and rendering tasks to improve system responsiveness.

Why Choose MCIMX536AVV8B?

The MCIMX536AVV8B pairs an 800 MHz ARM® Cortex®-A8 core with dedicated multimedia engines, a broad set of interfaces and a compact FBGA package to deliver a focused solution for embedded multimedia and HMI designs. Its combination of processing, graphics/video support and on-chip security features helps streamline BOM and system integration for products that demand integrated media handling.

Engineers and procurement teams selecting this device benefit from detailed series documentation covering electrical characteristics, boot configuration and package information, helping accelerate development and validation for production designs.

Request a quote or submit an inquiry to receive pricing, availability and technical support information for the MCIMX536AVV8B.
