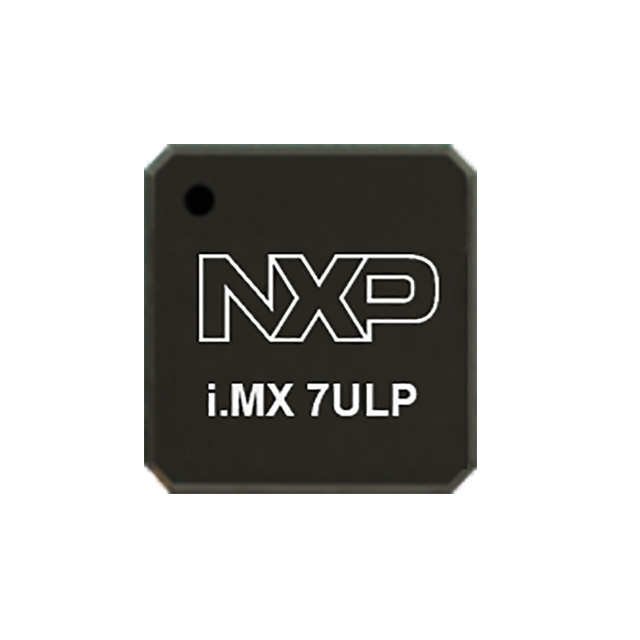

MCIMX7U5DVP07SC

The MCIMX7U5DVP07SC is an ultra-low-power microprocessor from NXP's i.MX 7U family featuring a single ARM® Cortex®-A7 core running at 720 MHz with an integrated Cortex®-M4 coprocessor domain. It targets portable and embedded applications that require efficient processing, heterogeneous real-time control and rich graphics capability.

Designed for consumer applications, the device delivers a balance of performance, low-power operation and integrated connectivity and security features—suitable for wearables, home control, portable healthcare, IoT edge and other embedded markets.

Key Features

• Core & Heterogeneous Processing Single ARM® Cortex®-A7 application core at 720 MHz with an independent ARM® Cortex®-M4 real-time coprocessor domain for offloaded control tasks.
• Memory Support Supports 32-bit LPDDR2 and LPDDR3 memory controllers; series documentation references 32-bit LPDDR2/3 @380 MHz and eMMC/SD memory options.
• Graphics & Display Integrated GC7000 nanoULTRA GPU providing OpenGL ES 2.0/OpenVG support and a GC320 2D composition engine for efficient 2D/3D UI acceleration.
• Connectivity & Interfaces USB 2.0 support (two ports noted) with USB HS OTG and host capability; additional interfaces include FlexIO and multiple peripheral buses documented for I2C, SPI, UART, SDIO and I2S.
• Security & Secure Boot Hardware crypto acceleration (AES, SHA variants), true random number generation (TRNG), eFuses/OTP, secure fuse and uHAB/HAB secure boot mechanisms.
• Process & Low-Power Technology Built on 28 nm FD-SOI process enabling body-bias tuning for improved energy efficiency, ultra-low run current and fast wake-up for battery-operated designs.
• Package & Qualification Surface-mount BGA package options in the i.MX 7ULP family; this specific part is listed as Consumer qualification with an operating temperature range of 0 °C to 95 °C.
• Standards & Compliance RoHS compliant.

Typical Applications

• Wearables — Ultra-low-power cores and fast wake-up behavior support extended battery life while enabling responsive UIs with GPU acceleration.
• Home Control — Integrated connectivity and security features allow secure device control and responsive user interfaces for smart home hubs and controllers.
• Portable Healthcare — Low-power operation, real-time M4 domain and hardware security features support portable medical and monitoring devices requiring data integrity and efficient processing.
• Portable Printing & Gaming Accessories — Combination of application core performance and graphics/2D composition engines supports interactive user interfaces and auxiliary processing tasks.
• IoT Edge & Embedded Control — Heterogeneous processing and flexible I/O enable sensor interfacing, local analytics and secure edge functions.

Unique Advantages

• Ultra-low-power architecture: 28 nm FD-SOI process and body-bias capabilities deliver lower run currents and tuning for performance vs. energy trade-offs.
• Heterogeneous compute domains: Cortex‑A7 application core with a dedicated Cortex‑M4 real-time domain enables task partitioning for performance and responsiveness.
• Integrated graphics acceleration: GC7000 nanoULTRA GPU and GC320 composition engine provide hardware-accelerated 3D and 2D rendering for rich UIs with lower CPU load.
• Comprehensive security stack: Crypto acceleration, TRNG, eFuses/OTP and secure boot support help protect firmware and data integrity in consumer applications.
• Flexible memory and I/O: Support for LPDDR2/LPDDR3, eMMC/SD and a broad set of peripheral interfaces simplifies system design across multiple embedded use cases.
• Consumer-grade temperature and compliance: Rated for 0 °C to 95 °C operation and RoHS compliant for consumer product development.

Why Choose MCIMX7U5DVP07SC?

The MCIMX7U5DVP07SC offers a practical combination of low-power operation, heterogeneous processing and integrated graphics for consumer-focused portable and embedded designs. As a member of the NXP i.MX 7ULP family, it provides scalability within the platform and a feature set that addresses real-time control, secure boot and graphical user interfaces.

This part is well suited for designers building battery-operated consumer products and IoT edge devices that need efficient CPU performance, dedicated real-time control and hardware security, while maintaining a compact surface-mount footprint and consumer temperature qualification.

Request a quote or submit an inquiry for pricing and availability to get started with MCIMX7U5DVP07SC.
