MCIMX7U5DVK07SC

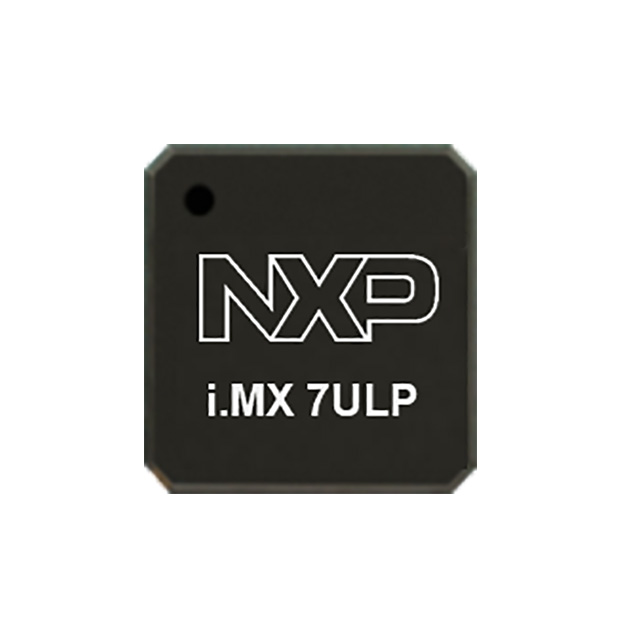

The MCIMX7U5DVK07SC is an ARM® Cortex®-A7 based microprocessor in the i.MX 7ULP family, featuring a single 32‑bit core running at 720 MHz with an integrated Cortex‑M4 coprocessor for real‑time tasks. It targets consumer portable and embedded applications that require ultra‑low power operation, hardware graphics acceleration, and a rich set of connectivity and security features.

Designed for efficient, heterogeneous processing, this device combines application processing, a real‑time domain, and graphics capabilities to support user interfaces, IoT edge devices, portable healthcare, and home control systems while emphasizing low power and secure boot options.

Key Features

• Core and Real‑Time Processing — ARM® Cortex®‑A7 application core at 720 MHz with an ARM® Cortex®‑M4 coprocessor (200 MHz listed in series documentation) for offloading real‑time tasks.
• Memory Support — Supports 32‑bit LPDDR2 and LPDDR3 memory interfaces; memory options and controllers are provided for common low‑power DRAM configurations.
• Graphics and Display — Graphics acceleration included with GC7000 nanoULTRA GPU and GC320 2D composition engine; includes MIPI‑DSI display interface support for rich 2D/3D UIs.
• Connectivity — Two USB 2.0 ports and a wide range of serial interfaces (FlexIO plus I2C, SPI, UART, SDIO and others referenced in series documentation) to support peripherals and host connectivity.
• Security — On‑chip crypto acceleration, TRNG, eFuses/OTP and secure boot (uHAB/HAB‑Secure Boot) for platform integrity and trusted boot flows.
• Ultra‑Low Power Platform — Built on FDSOI process technology with features for body biasing and performance tuning to reduce run current and extend battery life in portable applications.
• Package and Mounting — Surface mount device with package options documented for the i.MX 7ULP family (BGA package options shown in series documentation); consumer qualification and mounting for PCB assembly.
• Operating Range — Consumer qualification with an operating temperature range of 0 °C to 95 °C.

Typical Applications

• Wearables — Low power operation and fast wake capability allow responsive user interfaces and extended battery life in compact wearable designs.
• Home Control — Integrated graphics and multiple connectivity interfaces enable responsive control panels and IoT gateway functionality for smart home devices.
• Portable Healthcare — Heterogeneous processing and secure boot support make it suitable for portable medical instruments that require real‑time control and data security.
• Portable Printing & Gaming Accessories — Graphics acceleration and flexible IO provide the necessary interfaces for interactive peripherals and handheld accessories.

Unique Advantages

• Heterogeneous Processing: Combines a 720 MHz Cortex‑A7 application core with a Cortex‑M4 real‑time coprocessor to allocate tasks efficiently between application and real‑time domains.
• Graphics‑Enabled UI: On‑chip GC7000 nanoULTRA GPU and GC320 composition engine support OpenGL ES and 2D composition workflows for rich user interfaces.
• Ultra‑Low Power Design: FDSOI process and body biasing capability enable lower run currents and performance tuning to optimize power versus performance for portable systems.
• Integrated Security: Crypto acceleration, TRNG, eFuses/OTP and secure boot mechanisms provide layered protection for platform integrity and secure startup.
• Broad Connectivity: Multiple USB 2.0 ports, MIPI‑DSI display interface, FlexIO and numerous serial peripherals support diverse sensor, storage and host interfaces.
• Consumer‑Focused Qualification: Consumer temperature qualification and package options tailored for portable and embedded consumer products.

Why Choose MCIMX7U5DVK07SC?

The MCIMX7U5DVK07SC offers a balanced combination of application processing, real‑time control, graphics acceleration and integrated security, packaged for consumer portable and embedded designs. Its ultra‑low power architecture, FDSOI benefits and heterogeneous domain approach make it suitable for designs that require efficient power management without sacrificing rich UI or real‑time capabilities.

As part of the i.MX 7ULP platform, this device provides a scalable option within the family for developers targeting wearables, home control, portable healthcare and other consumer embedded markets where power efficiency, graphics and secure boot are important.

Request a quote or submit an inquiry to get pricing and availability for MCIMX7U5DVK07SC and review how it fits into your next portable or embedded design.
