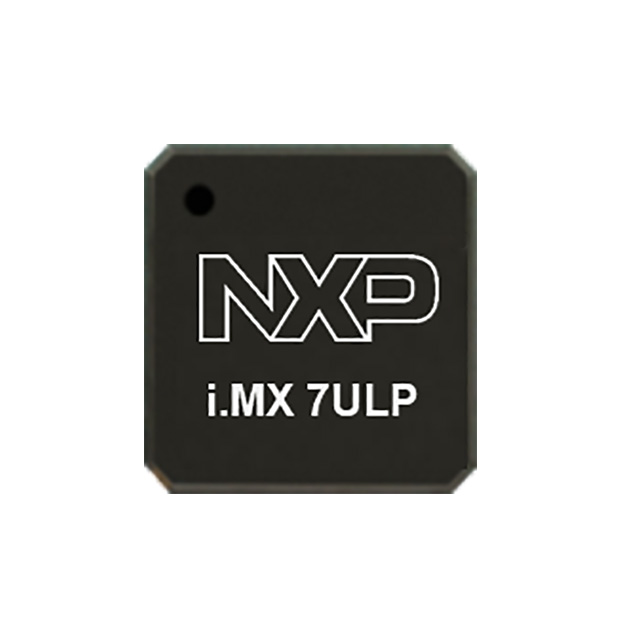

MCIMX7U3DVK07SC

The MCIMX7U3DVK07SC is an NXP i.MX 7ULP-based microprocessor featuring an ARM® Cortex®-A7 application core running at 720 MHz with a Cortex‑M4 co-processor for real-time tasks. It targets ultra-low-power portable and embedded applications that require a balance of application processing, graphics capability, and real-time control.

Designed for consumer-grade products, the device delivers heterogeneous domain computing, integrated graphics acceleration and on-chip security primitives to support use cases such as wearables, home control, portable healthcare and IoT edge devices while minimizing system power consumption.

Key Features

• Core and Processing — ARM® Cortex®-A7 application core at 720 MHz with an ARM® Cortex®-M4 co-processor (200 MHz listed in the product series datasheet) for real-time offload and domain separation; includes Neon co‑processor support noted in the series documentation.
• Memory and Storage — Integrated controllers for 32-bit LPDDR2 and LPDDR3 memory; series documentation also lists support for QSPI (on-the-fly decryption) and eMMC 5.0/SD3.0 storage options.
• Graphics and Display — Graphics acceleration with GC7000 nanoULTRA GPU (OpenGL ES 2.0/1.1, OpenVG 1.1) and GC320 2D composition engine for efficient 2D/3D UI rendering; MIPI‑DSI display interface controller included.
• Connectivity and I/O — USB 2.0 (two ports indicated in product data); FlexIO present for flexible peripheral mapping. Series documentation also lists abundant peripheral options (I2C, SPI, UART, SDIO, I2S) to support diverse I/O requirements.
• Security and Secure Boot — On-chip crypto acceleration, true RNG/TRNG, eFuses/OTP and secure fuse features plus uHAB/HAB secure boot mechanisms to protect system integrity and enable high-assurance boot flows.
• Ultra Low Power Technology — Architecture and 28 nm FD‑SOI process optimizations described in the series documentation enable low run currents, fast wake-up and body-bias tuning for performance-on-demand and extended battery life in portable designs.
• Package, Mounting and Temperature — Surface-mount BGA packaging options are listed in the series documentation; this part is qualified for consumer applications with an operating temperature range of 0 °C to 95 °C.

Typical Applications

• Wearables — Low-power application and real-time co-processing suited for battery-powered wearable user interfaces and sensor fusion.
• Home Control — Responsive UI and secure connectivity for smart home controllers, gateways and control panels.
• Portable Healthcare — Combines application processing, real-time control and on-chip security for portable medical devices that require efficient power consumption.
• Portable Printing & Accessories — Processing and peripheral integration for portable printers and gaming accessories with graphical interfaces.
• IoT Edge and Embedded Control — Heterogeneous processing and flexible I/O to handle sensor interfacing, protocol bridging and edge compute tasks.

Unique Advantages

• Heterogeneous Processing: ARM® Cortex®-A7 plus Cortex‑M4 combination enables separation of application and real-time tasks to optimize responsiveness and power use.
• Graphics-Enabled UI: Integrated 3D/2D GPU and composition engine reduce external graphics requirements and simplify rich user-interface implementation.
• Comprehensive Security: Crypto accelerators, TRNG and secure-boot primitives support device integrity and secure deployment models.
• Low-Power Operation: 28 nm FD‑SOI process characteristics and architectural power features enable low run currents and fast wake-up for battery-operated products.
• Flexible Memory & I/O: LPDDR2/3 controllers, QSPI/eMMC/SD support and a broad set of peripheral interfaces reduce BOM and simplify system design.
• Consumer-Grade Qualification: Product qualification and specified operating temperature range make the device appropriate for mainstream consumer embedded products.

Why Choose MCIMX7U3DVK07SC?

The MCIMX7U3DVK07SC delivers a balanced mix of application performance, real-time processing and graphics acceleration in an ultra-low-power platform tailored for consumer portable and embedded products. Its integrated security features and flexible memory and I/O options make it suitable for designs that require secure boot and responsive user interfaces without extensive external components.

Engineers designing wearable devices, home controls, portable healthcare products or IoT edge nodes will find the MCIMX7U3DVK07SC a practical choice when power efficiency, graphics capability and on-chip security are key considerations, and when consumer-grade qualification and package options align with product requirements.

Request a quote or submit a pricing and availability inquiry for MCIMX7U3DVK07SC to discuss volume, lead time and technical availability for your design needs.
