MCIMX7S5EVM08SC

The MCIMX7S5EVM08SC is an i.MX7S microprocessor IC featuring ARM® Cortex®‑A7 and ARM® Cortex®‑M4 processor cores. The Cortex‑A7 core operates at up to 800 MHz and the device is targeted at connected and portable applications that require a balance of processing capability and integration.

As part of the i.MX 7Solo family, this device delivers a compact, functionally integrated platform with broad peripheral support—suitable for applications such as audio, human‑machine interfaces, access control, portable medical devices, smart appliances, IP phones, point‑of‑sale systems and eReaders.

Key Features

• Core & Performance — ARM® Cortex®‑A7 and ARM® Cortex®‑M4 processor cores with the main core operating up to 800 MHz and 32‑bit operation for responsive embedded processing.
• Memory Support — Integrated memory controllers supporting LPDDR2, LPDDR3, DDR3 and DDR3L; datasheet references support up to 32‑bit DDR3/DDR3L/LPDDR2/LPDDR3‑1066 interfaces for flexible system memory choices.
• Multimedia Acceleration — Includes multimedia co‑processor support and NEON™ MPE to accelerate media and signal processing workloads.
• Display & HMI Interfaces — On‑chip support for keypad, LCD and MIPI interfaces to drive displays and user interfaces in embedded products.
• Connectivity — Integrated Ethernet (10/100/1000 Mbps, 1 port) and dual USB capability (USB 2.0 + PHY and USB 2.0 OTG + PHY) for wired network and peripheral connectivity.
• Audio & Peripheral — Additional AC'97 interface for legacy audio and peripheral connectivity.
• Security & Trust — Hardware security features including A‑HAB, ARM TrustZone (ARM TZ), CAAM, CSU, SJC and SNVS to support secure boot and runtime protection strategies.
• Power & Clocking — On‑chip power management elements are documented in the datasheet, including integrated LDO regulator parameters, PLL electrical characteristics and on‑chip oscillators for system clocking and power control.

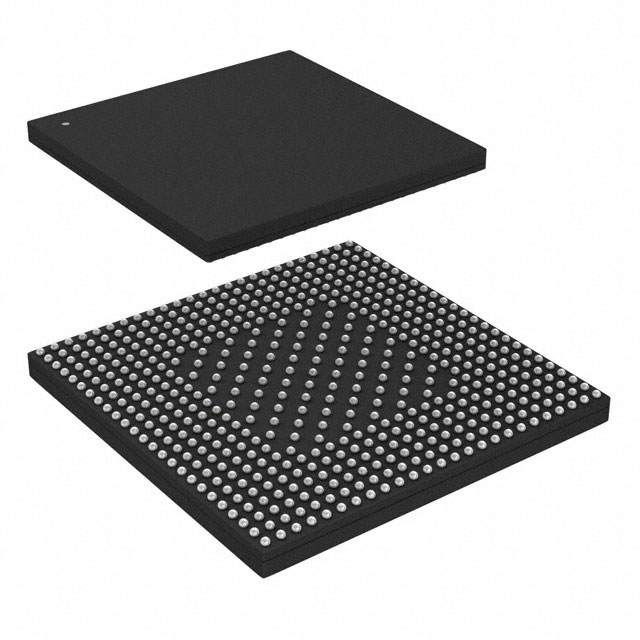

• Package & Environmental — Available in a 541‑MAPBGA (19 × 19 mm, 0.75 mm pitch) BGA supplier package; surface‑mount mounting and an operating temperature range of −20 °C to 105 °C. RoHS compliant.

Typical Applications

• Human‑Machine Interfaces (HMI) — Use the LCD and MIPI display interfaces and Cortex‑A7 performance to implement responsive touch and graphical interfaces for control panels and kiosks.
• Connected Devices — Integrated Ethernet and USB connectivity enable networked devices and edge appliances requiring reliable wired connectivity and peripheral support.
• Portable Medical & Healthcare — The combination of integrated security features, compact BGA packaging and mixed‑core processing supports portable medical instruments and patient monitoring devices.
• Point‑of‑Sale & IP Telephony — Ethernet, USB and multimedia processing capability make the device suitable for POS terminals and IP phones where media handling and networking are needed.
• Smart Appliances & eReaders — Balanced processing performance and extensive peripheral interfaces support embedded consumer devices for media, UI and connectivity functions.

Unique Advantages

• Highly integrated processing platform: Combines ARM Cortex‑A7 and Cortex‑M4 cores with multimedia co‑processor support and NEON MPE to consolidate application and real‑time tasks on a single device.
• Flexible memory support: Broad DDR/LPDDR controller compatibility (LPDDR2/LPDDR3/DDR3/DDR3L and documented support up to LPDDR3/DDR3‑1066) lets designers choose memory technology to meet performance and cost targets.
• Comprehensive connectivity: On‑chip Ethernet (10/100/1000 Mbps) plus USB 2.0 host and OTG PHYs and AC'97 support simplify system integration for networked and multimedia applications.
• Built‑in hardware security: Multiple security engines and trust mechanisms (A‑HAB, ARM TZ, CAAM, CSU, SJC, SNVS) provide hardware foundations for secure boot and protected execution.
• Production‑ready package and temperature range: 541‑MAPBGA (19 × 19 mm) surface‑mount package and −20 °C to 105 °C operating range suit a wide range of embedded product deployments.
• Documented power and clocking infrastructure: Integrated LDO, PLL and on‑chip oscillators are specified in the datasheet for predictable power and timing design integration.

Why Choose MCIMX7S5EVM08SC?

The MCIMX7S5EVM08SC positions itself as a balanced, functionally rich processor for connected and portable embedded systems. With ARM® Cortex®‑A7 performance up to 800 MHz, an accompanying Cortex‑M4 core, extensive memory interface support and broad peripheral integration, it provides a compact foundation for designs that require processing, media handling and secure connectivity.

As part of the i.MX 7Solo family, this device is suitable for developers targeting HMI, audio, healthcare, POS, smart appliance and connected‑device segments where integration, documented power/clocking elements and hardware security features reduce system complexity and support long production lifecycles.

If you would like pricing or availability, request a quote or submit an inquiry to receive a formal sales response and detailed ordering information.
