MCIMX7S3EVK08SD

The MCIMX7S3EVK08SD is an NXP i.MX 7S series microprocessor featuring an ARM® Cortex®-A7 application core paired with an ARM® Cortex®-M4 microcontroller. The Cortex-A7 core runs at up to 800 MHz and the device targets connected and portable designs that require functional integration with modest performance and low-power operation.

Designed for embedded markets, the i.MX 7Solo family supports a range of peripherals and memory interfaces suitable for audio, HMI, portable medical, access control, smart appliances, point-of-sale and similar device categories where integration and connectivity are important.

Key Features

• Core & Microcontroller  Single ARM® Cortex®-A7 32‑bit application core at up to 800 MHz with an integrated ARM® Cortex®-M4 co-processor for real-time tasks.
• Multimedia & DSP Extension  Integrated multimedia co-processors including NEON™ MPE to accelerate media and signal processing workloads.
• Memory Interfaces  Flexible memory controller support for LPDDR2, LPDDR3, DDR3 and DDR3L enabling multiple memory configurations and performance points.
• Connectivity  Integrated Ethernet MAC supporting 10/100/1000 Mbps (1), USB 2.0 + PHY and USB 2.0 OTG + PHY, and additional interfaces such as AC'97 for audio connectivity.
• Display & I/O  Display interface controllers supporting LCD, MIPI and keypad interfaces to drive human‑machine interfaces and display subsystems.
• Security Features  Built-in security blocks including A‑HAB, ARM TrustZone (ARM TZ), CAAM, CSU, SJC and SNVS for hardware-assisted secure boot and system security domains.

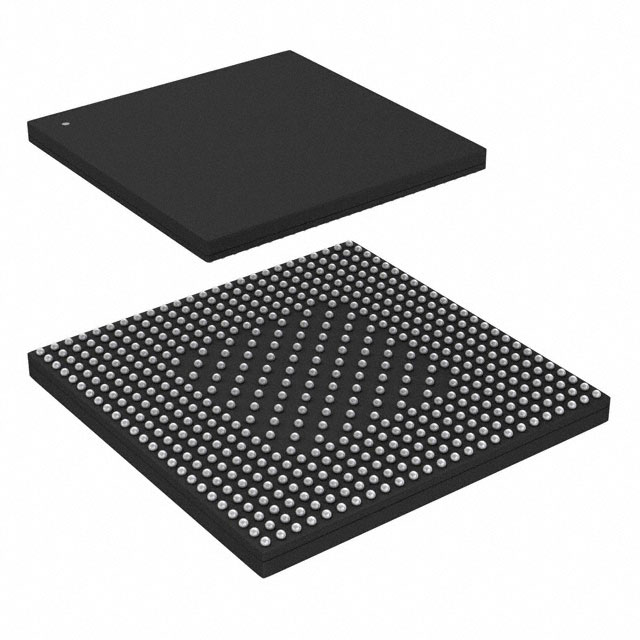

• Package & Mounting  Supplied in a 488‑TFBGA (12 × 12 mm) package, surface-mountable for compact board designs.
• Operating Range & Reliability  Rated for an operating temperature range of −20 °C to 105 °C for extended environmental tolerance in many embedded deployments.

Typical Applications

• Audio systems  Use the multimedia and NEON MPE capabilities for audio processing and codec interfacing in connected audio devices.
• Human‑Machine Interfaces (HMI)  Drive LCD or MIPI displays and keypads for control panels, kiosks and appliance user interfaces.
• Portable medical and health care  Leverage low‑power architecture and integrated peripherals for battery‑sensitive portable medical instruments.
• Smart appliances and Point of Sale (POS)  Provide network connectivity (Gigabit Ethernet), USB interfaces and secure boot features for connected appliance and POS designs.

Unique Advantages

• Highly integrated processing pair: Single Cortex‑A7 application core plus Cortex‑M4 co-processor enables a split between application-level tasks and real‑time control without adding external MCUs.
• Flexible memory support: On‑chip controllers for LPDDR2/LPDDR3 and DDR3/DDR3L allow designers to choose memory types that match performance, cost and power targets.
• Robust connectivity: Built-in Gigabit Ethernet and USB 2.0 host/OTG with PHY support simplify integration of wired networking and peripheral connectivity.
• Hardware security primitives: Multiple security modules (A‑HAB, ARM TZ, CAAM, CSU, SJC, SNVS) enable hardware-assisted secure boot and system protection strategies.
• Compact, production-ready package: 488‑TFBGA (12 × 12 mm) surface-mount package supports compact board layouts and industrial assembly processes.
• Designed for low-power embedded devices: i.MX 7Solo family positioning emphasizes high functional integration for low‑power requirements suitable for portable and connected product designs.

Why Choose MCIMX7S3EVK08SD?

The MCIMX7S3EVK08SD combines an 800 MHz ARM® Cortex®‑A7 application core with an ARM® Cortex®‑M4 microcontroller and a broad set of peripheral controllers, delivering a balanced platform for connected and portable embedded systems. Its support for multiple memory types, integrated connectivity and hardware security features make it suitable for designs that require integration, performance and system-level security.

This device fits development targets for audio, HMI, access control, portable medical, POS and smart appliance applications where a compact package, surface-mount assembly and an extended operating temperature range are required. As part of the NXP i.MX 7S family, it offers a documented technical datasheet and package information to support design and production planning.

Request a quote or submit an inquiry to receive pricing and availability information for the MCIMX7S3EVK08SD.
