MCIMX7S5EVK08SD

The MCIMX7S5EVK08SD is an NXP i.MX 7S family microprocessor featuring ARM® Cortex®-A7 and ARM® Cortex®-M4 processing elements. The device delivers an 800 MHz 32‑bit application core alongside a Cortex‑M4 for real‑time tasks, targeting connected and portable embedded systems.

Designed for low‑power requirements with a high degree of functional integration, this part is suitable for human‑machine interfaces, connected devices, portable medical equipment, point‑of‑sale systems and other embedded applications that require a balance of application processing, peripheral integration and integrated security.

Key Features

• Core Architecture  ARM® Cortex®‑A7 application core with ARM® Cortex®‑M4 co‑processor; 1 core, 32‑bit at up to 800 MHz as specified for the i.MX7S family.
• Memory Interfaces  Integrated memory controller supporting LPDDR2, LPDDR3, DDR3 and DDR3L memory types; datasheet references support for up to DDR‑1066 class interfaces.
• Peripheral Interfaces  Multiple I/O including 10/100/1000 Mbps Ethernet (1), USB 2.0 + PHY (1), USB 2.0 OTG + PHY (1), and AC'97; display controller support for keypad, LCD and MIPI interfaces.
• Security Features  On‑chip security infrastructure including A‑HAB, ARM TrustZone (ARM TZ), CAAM, CSU, SJC and SNVS to support secure boot and runtime protection strategies.

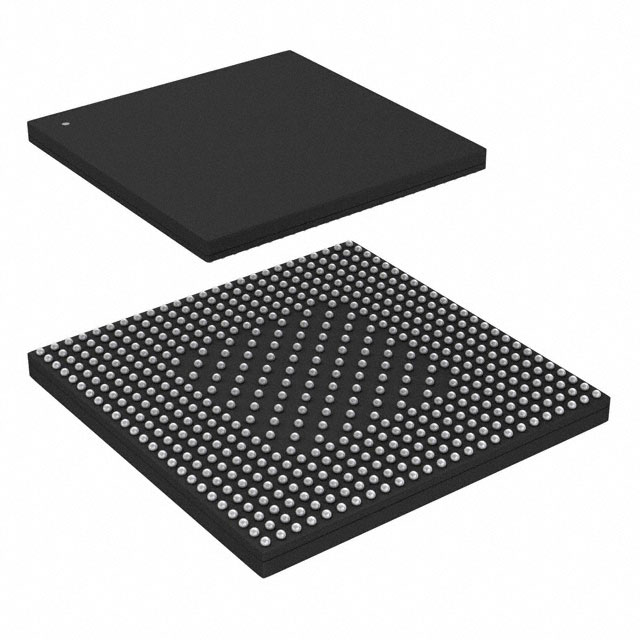

• Packaging and Mounting  488‑TFBGA package in a 12×12 mm footprint with 0.4 mm pitch; surface mount device suited for compact board designs.
• Power & Low‑Power Focus  Part of the i.MX 7Solo/7S family engineered for high performance with low power consumption, enabling battery‑friendly and always‑connected designs.
• Environmental Range & Compliance  Operating temperature range of −20 °C to 105 °C and RoHS compliance for environmental conformity.

Typical Applications

• Human‑Machine Interfaces (HMI)  Drive LCD and keypad interfaces and run responsive user interfaces using the 800 MHz application core.
• Connected Devices  Integrate networking and USB connectivity with on‑chip Ethernet and USB PHYs for IoT gateways and smart appliances.
• Portable Medical & Healthcare  Combine application processing and real‑time control in compact, low‑power portable medical devices.
• Point of Sale (POS) and IP Phones  Support multimedia, network connectivity and peripheral interfaces required in retail terminals and communication devices.
• Embedded Consumer Electronics  Suitable for eReaders, audio devices and smart appliances that require integrated processing, memory support and secure boot capabilities.

Unique Advantages

• Highly integrated processing  Combined ARM® Cortex®‑A7 and Cortex‑M4 elements enable separation of application and real‑time tasks without additional MCUs.
• Broad memory support  Flexible memory controller for LPDDR2/LPDDR3/DDR3/DDR3L lets designers choose memory types that match cost and performance targets.
• Rich peripheral set  Integrated Ethernet, dual USB PHYs, MIPI and display interfaces reduce external components and simplify board routing.
• Integrated security subsystems  A suite of on‑chip security features supports secure boot and protected runtime environments, lowering system integration risk.
• Compact BGA footprint  488‑TFBGA 12×12 mm package enables dense, space‑constrained designs while retaining high pin count.
• Designed for low power  Targeted at low‑power connected and portable applications to extend battery life and reduce thermal design needs.

Why Choose MCIMX7S5EVK08SD?

The MCIMX7S5EVK08SD positions itself as a versatile embedded processor that balances application‑level performance with low‑power operation and extensive on‑chip peripherals. Its integrated security features and flexible memory options make it well suited for designs that require secure connectivity and compact form factors.

This device is a strong fit for developers building connected portable products, HMI systems, medical and retail terminals who need a documented, supported i.MX 7S family part with a compact BGA package and broad peripheral integration.

Request a quote or submit an inquiry for pricing and availability to move your design forward with the MCIMX7S5EVK08SD.
