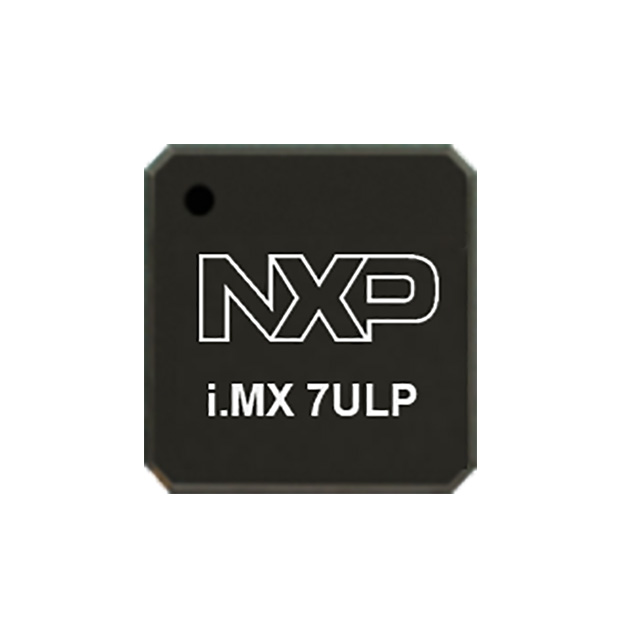

MCIMX7U3CVP06SC

The MCIMX7U3CVP06SC is an NXP i.MX 7U-series microprocessor IC featuring a single ARM® Cortex®-A7 core running at 650 MHz with an ARM® Cortex®-M4 co-processor for real-time tasks. Designed for embedded and portable applications, it combines ultra-low-power operation, graphics acceleration and integrated security to address industrial and IoT edge use cases.

With LPDDR2/LPDDR3 memory controllers, MIPI‑DSI display support, multiple USB 2.0 ports and flexible I/O, this device targets designs that require efficient application processing, display capabilities and robust security across a wide operating temperature range.

Key Features

• Core Processing Single ARM® Cortex®-A7 32-bit core at 650 MHz paired with an ARM® Cortex®-M4 co-processor for real-time and offload tasks.
• Memory Support Integrated controllers for LPDDR2 and LPDDR3 memory to support application and graphics workloads.
• Graphics & Display Graphics acceleration capability and a MIPI‑DSI display interface for connected user interfaces and visual applications.
• Connectivity Dual USB 2.0 ports plus FlexIO for customizable peripheral interfacing and system expansion.
• Security Built-in Crypto/TRNG, eFuses/OTP, secure fuses and uHAB/HAB secure boot functionality to protect system integrity and enable trusted boot flows.
• Low Power Platform Part of the i.MX 7ULP ultra-low-power family, offering design elements focused on reduced run current and power-efficient operation.
• Industrial Qualification & Temperature Range Industrial-qualified device specified for operation from −40 °C to 105 °C.
• Mounting & Compliance Surface-mount package and RoHS-compliant construction for modern board-level assembly and regulatory compliance.

Typical Applications

• Wearables — Compact, low-power processing and display support for battery-powered wearable devices.
• Home Control & Smart Home — Interface and connectivity capabilities for control panels, hubs and smart controllers.
• Portable Healthcare — Low-power operation and security features suited for portable medical monitoring and data integrity.
• IoT Edge & Embedded Control — Heterogeneous processing and flexible I/O for sensor aggregation, protocol handling and edge analytics.
• Portable Consumer Devices — Display acceleration and USB connectivity for handheld printers, gaming accessories and similar products.

Unique Advantages

• Heterogeneous Processing: Combines a 650 MHz Cortex‑A7 application core with a Cortex‑M4 co-processor to separate application and real-time workloads, simplifying system partitioning.
• Ultra-Low-Power Design: i.MX 7ULP platform characteristics provide energy-efficient operation and fast wake-up behavior for battery-powered systems.
• Integrated Security Primitives: Hardware crypto, true random number generation and secure boot support help protect IP and system integrity without adding external security components.
• Flexible Display & I/O: MIPI‑DSI plus FlexIO and multiple USB ports enable rich user interfaces and adaptable peripheral connections.
• Industrial Temperature Range: Specified operation from −40 °C to 105 °C supports deployment in harsher environments and industrial applications.
• Reduced BOM and System Complexity: On-chip memory controllers, graphics acceleration and connectivity reduce the need for external subsystems and simplify board design.

Why Choose MCIMX7U3CVP06SC?

The MCIMX7U3CVP06SC positions itself as a balanced embedded application processor for designs that require efficient application performance, real-time responsiveness and integrated security within an ultra-low-power envelope. Its combination of a Cortex‑A7 application core, Cortex‑M4 co-processor, memory interface support and display/connectivity features makes it well suited for industrial, portable and IoT edge products.

Choose this device when your design demands a compact, industrial-qualified processor that reduces external component count while providing secure boot, graphics capability and flexible I/O for diverse embedded use cases.
