MCIMX7S5EVM08SD

The MCIMX7S5EVM08SD is an NXP Semiconductors i.MX 7S series microprocessor featuring ARM® Cortex®-A7 and ARM® Cortex®-M4 processor technology with an A7 application core up to 800 MHz. It targets connected and portable embedded designs that require balanced application performance and low-power integration.

Typical use cases include audio, human‑machine interfaces, connected devices, access control panels, portable medical and health care equipment, IP phones, smart appliances, point-of-sale terminals and eReaders. The device combines processing, multimedia acceleration support and a broad set of I/O to support these markets.

Key Features

• Processor Cores — ARM® Cortex®-A7 and ARM® Cortex®-M4 cores; primary core speed up to 800 MHz and 32-bit bus width.
• Multimedia Acceleration — Includes multimedia co-processor support and NEON™ MPE for SIMD acceleration in media workloads.
• Memory Interfaces — Compatible with LPDDR2, LPDDR3, DDR3 and DDR3L memory types for flexible system memory choices.
• Display and HMI — Integrated controllers for keypad, LCD and MIPI interfaces to support a wide range of user interfaces and displays.
• Connectivity — Integrated 10/100/1000 Mbps Ethernet (1 port) and USB 2.0 + PHY plus USB 2.0 OTG + PHY for wired networking and host/device USB connectivity.
• Audio and Peripherals — Additional AC'97 interface for legacy audio connectivity and peripheral integration.
• Security — On-chip security features including A-HAB, ARM TrustZone (TZ), CAAM, CSU, SJC and SNVS to support secure boot and runtime protection schemes.

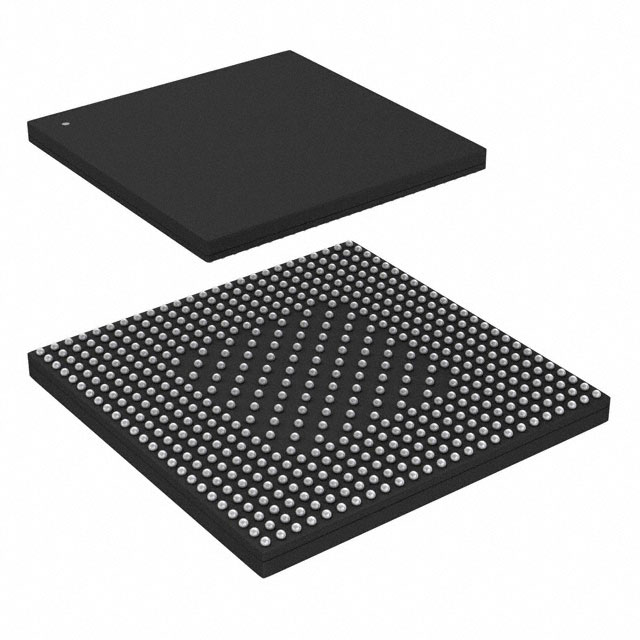

• Package and Assembly — 541-ball MAPBGA supplier package (19 × 19 mm, 0.75 mm pitch) suitable for surface-mount assembly; alternate 541-LFBGA package information available in documentation.
• Operating Range — Industrial operating temperature range of −20 °C to 105 °C for deployment in demanding environments.
• Compliance — RoHS compliant.

Typical Applications

• Audio systems — Use the processor’s multimedia support and AC'97 interface for audio processing and playback in consumer and enterprise devices.
• Connected devices — Integrated Ethernet and USB connectivity make it suitable for IoT gateways, connected appliances and networked endpoints.
• Human–Machine Interfaces (HMI) — LCD and MIPI display controllers and keypad support enable responsive HMIs for control panels and kiosks.
• Portable medical and health-care devices — Processing capability and memory interface flexibility support embedded medical instruments and portable monitoring equipment.
• Point-of-Sale and IP phones — Balanced processing, connectivity and security features support transactional terminals and voice devices.

Unique Advantages

• Heterogeneous compute — Combination of ARM® Cortex®-A7 and Cortex®-M4 cores enables separation of application and real-time tasks for efficient system design.
• Flexible memory support — Compatibility with LPDDR2/LPDDR3 and DDR3/DDR3L provides designers options to match cost, performance and power targets.
• Comprehensive connectivity — Integrated Gigabit Ethernet and dual USB 2.0 interfaces simplify system-level connectivity without extensive external controllers.
• On-chip security suite — Multiple hardware security blocks (A‑HAB, TrustZone, CAAM, CSU, SJC, SNVS) help implement secure boot and protected runtime environments.
• Production-ready packaging — 541-MAPBGA (19 × 19 mm) surface-mount package and documented BGA package information support high-volume PCB assembly and thermal planning.
• Wide operating temperature — −20 °C to 105 °C rating enables deployment across a variety of environmental conditions.

Why Choose MCIMX7S5EVM08SD?

The MCIMX7S5EVM08SD positions itself as a versatile embedded processor option that balances application performance, low-power integration and a broad peripheral set from a single silicon platform by NXP Semiconductors. Its combination of ARM® Cortex® processing, multimedia acceleration support, flexible memory interfaces and extensive security features makes it suitable for connected and portable embedded systems where integration and proven vendor support matter.

This device is well suited to engineers designing HMI, audio, connected appliances, portable medical instruments and point-of-sale solutions who need a compact BGA package, industrial temperature operation and integrated connectivity options.

Request a quote or submit a purchase inquiry to get pricing and availability for the MCIMX7S5EVM08SD.
