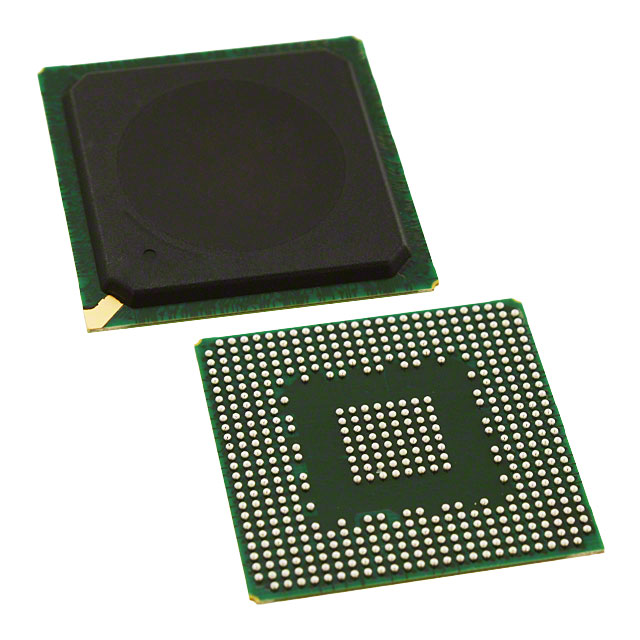

MPC8313CVRADDC

The MPC8313CVRADDC is a PowerPC e300c3-based 32-bit microprocessor operating at 267 MHz, supplied in a 516-TEPBGA (27×27) surface-mount package. It targets embedded and industrial designs that require an integrated host processor with on-chip peripherals and memory controllers.

Built as part of the MPC83xx / PowerQUICC II Pro family, the device provides a balanced mix of processing, security and I/O integration suited for networking, industrial controllers and system I/O applications where industrial qualification and extended temperature operation are required.

Key Features

• Core PowerPC e300c3 single-core 32-bit processor running at 267 MHz with integrated L1 caches and memory management units.
• Security On-chip security co-processor (SEC 2.2) providing cryptography and security-related acceleration functions.
• Memory Integrated DDR and DDR2 SDRAM controllers to interface directly with system memory.
• Ethernet Two independent three-speed Ethernet controllers supporting 10/100/1000 Mbps operation for high-bandwidth network connectivity.
• USB USB 2.0 controller with integrated PHY (1) for host or device connectivity.
• Peripheral Interfaces Includes DUART and a range of on-chip serial and local bus interfaces for system expansion and control.
• Package & Mounting 516-TEPBGA (27×27) / 516-BBGA exposed pad package; surface-mount mounting type suitable for compact board designs.
• Qualification & Temperature Industrial qualification with operating temperature range from −40 °C to 105 °C for deployment in demanding environments.

Typical Applications

• Networking Equipment Processor and I/O controller for switches, VPN routers, intelligent NICs and other network access devices using dual Gigabit Ethernet.
• Storage & NAS Host processing in NAS and networked storage appliances leveraging integrated memory controllers and Ethernet interfaces.
• Industrial Controllers Embedded control and communication in industrial automation systems requiring industrial qualification and extended temperature range.
• Printing & Imaging Systems Main CPU or I/O processor in printing and imaging equipment where integrated connectivity and peripheral support are required.

Unique Advantages

• Integrated I/O and Memory Controllers: Dual Gigabit Ethernet, DDR/DDR2 controllers and USB 2.0 + PHY reduce the need for multiple discrete controllers on the board.
• On-chip Security Acceleration: SEC 2.2 security co-processor provides hardware cryptography support for secure networking and storage applications.
• Industrial-ready Packaging and Temperature Range: 516-TEPBGA package with exposed pad and −40 °C to 105 °C operation supports robust deployment in harsh environments.
• Single-chip Integration for Compact Designs: Surface-mount 516-BBGA footprint enables compact system designs while maintaining a broad set of peripheral interfaces.
• Proven Architecture Family: Part of the MPC83xx / PowerQUICC II Pro family with documented hardware specifications and system design guidance for integration.

Why Choose MPC8313CVRADDC?

The MPC8313CVRADDC combines a PowerPC e300c3 core with extensive on-chip peripherals—dual three-speed Ethernet, DDR/DDR2 memory controllers, USB 2.0 with PHY and hardware security (SEC 2.2)—to deliver a tightly integrated solution for embedded and industrial designs. Its industrial qualification and −40 °C to 105 °C operating range make it suitable for applications that demand reliability across temperature extremes.

This part is well suited for designers seeking a single-chip host processor with integrated networking, memory and security features, enabling streamlined board design, reduced component count and clear documentation support from the MPC83xx family materials.

Request a quote or submit a purchasing inquiry for the MPC8313CVRADDC to discuss availability, lead times and how this processor fits your next embedded design.
