OMAP3515DCBC

The OMAP3515DCBC is a single-core ARM® Cortex®-A8 microprocessor IC running at 600 MHz, designed for embedded applications requiring integrated multimedia and display support. It combines a 32-bit Cortex-A8 core with multimedia DSP/NEON SIMD capabilities, graphics acceleration and on-chip controllers to support LPDDR memory and LCD displays.

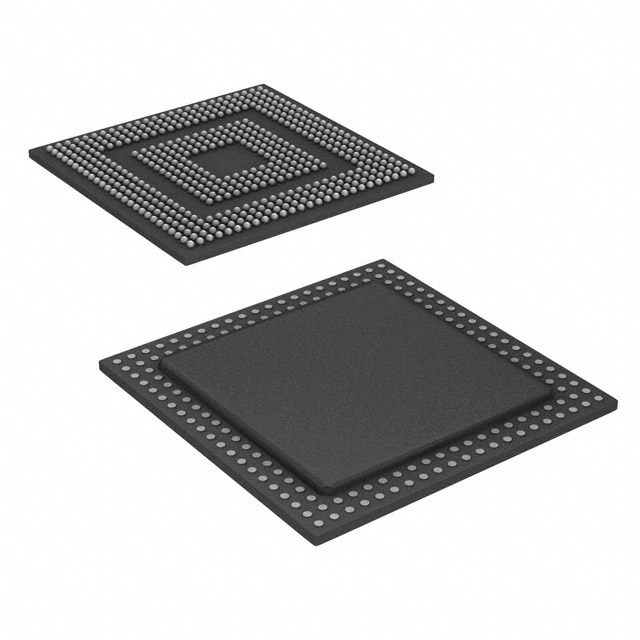

Manufactured by Texas Instruments and supplied in a 515-POP-FCBGA (14×14) package, this commercial-grade device targets embedded product designs that need a compact, integrated processing subsystem with multiple USB interfaces and auxiliary I/O.

Key Features

• Core  ARM® Cortex®-A8 single 32-bit core running at 600 MHz for general-purpose embedded processing.
• Multimedia & SIMD  Integrated multimedia co-processor with NEON™ SIMD support for accelerated signal and media processing.
• Graphics Acceleration  On-chip graphics acceleration to support display and UI workloads.
• Memory & Display  LPDDR memory controller and LCD display interface controller for direct system integration with common embedded memory and display technologies.
• Connectivity & I/O  Multiple USB ports (USB 1.x ×3, USB 2.0 ×1) plus HDQ/1-Wire for auxiliary device and sensor interfacing.
• Package & Mounting  515-POP-FCBGA (14×14) supplier device package; 515-VFBGA / FCBGA package case; surface-mount device suitable for compact board designs.
• Operating Conditions  Commercial grade with an operating temperature range of 0 °C to 90 °C.
• Compliance  RoHS compliant.

Typical Applications

• Embedded Multimedia Devices  Use the integrated NEON SIMD and graphics acceleration for media decoding and UI rendering in embedded systems.
• Display-Based Interfaces  Drive LCD-based human interfaces and control panels leveraging the on-chip LCD controller.
• USB-Enabled Peripherals  Integrate multiple USB 1.x and USB 2.0 ports for peripheral connectivity and host/device functions.
• Compact Consumer/Commercial Products  Implement compact system designs using the 515-POP-FCBGA (14×14) package and surface-mount mounting.

Unique Advantages

• Integrated Processing and Acceleration: Combines a 600 MHz Cortex-A8 core with multimedia DSP and NEON SIMD plus graphics acceleration for efficient media and UI tasks.
• On-Board Memory and Display Support: LPDDR controller and LCD display interface simplify memory and display subsystem design.
• Flexible Connectivity: Multiple USB ports and HDQ/1-Wire support enable a range of peripheral and sensor interfaces without separate controllers.
• Compact Package Options: Available in a 515-POP-FCBGA (14×14) supplier package and FCBGA case for space-constrained PCBs.
• Commercial Temperature Range: Rated for 0 °C to 90 °C operation to match many commercial embedded product environments.
• Environmental Compliance: RoHS compliant status supports regulatory and manufacturing requirements.

Why Choose OMAP3515DCBC?

The OMAP3515DCBC positions itself as an integrated microprocessor solution for embedded systems that require a balance of general-purpose compute, multimedia processing and display connectivity. Its ARM® Cortex®-A8 core at 600 MHz, combined with NEON SIMD and graphics acceleration, addresses media and UI workloads while on-chip LPDDR and LCD controllers reduce external component requirements.

Backed by Texas Instruments manufacturing and supplied in compact FCBGA/POP packages, the OMAP3515DCBC is suitable for designers of commercial embedded products who need a compact, integrated MPU with multiple USB interfaces and auxiliary I/O, helping shorten system integration and validation cycles.

Request a quote or submit an inquiry to receive pricing and availability for the OMAP3515DCBC and to discuss your design requirements with our product specialists.
