P1010NSE5FFB

The P1010NSE5FFB is a single‑core PowerPC e500v2 microprocessor from NXP's QorIQ P1 series, delivering a 1.0 GHz 32‑bit processing core in a highly integrated communications-focused device. It targets cost‑sensitive networking, storage and industrial applications that require on‑chip connectivity, storage interfaces and a trusted security platform.

Designed as a value‑performance solution with low‑power implementation, the device combines processing, multi‑port Ethernet, SATA and security features to simplify system design for routers, access points, NAS and industrial controllers.

Key Features

• Core & Performance — PowerPC e500v2 single 32‑bit core running at 1 GHz, providing deterministic processing for embedded communications tasks.
• Memory and Storage — Integrated DDR3/DDR3L memory controllers and dual SATA 3 Gbps ports for local storage and NAS applications.
• Ethernet & Connectivity — Three 10/100/1000 Mbps Ethernet ports and additional interfaces including CAN and USB 2.0 with PHY for broad I/O support.
• Security Subsystem (SEC 4.4) — On‑chip security engine with cryptographic accelerators, random number generator and support for secure boot and a secure fusebox to protect boot and keys.
• Peripheral Integration — Integrated peripherals such as SPI, I2C, DUART, SD/MMC and GPIO reduce external component count and simplify BOM.

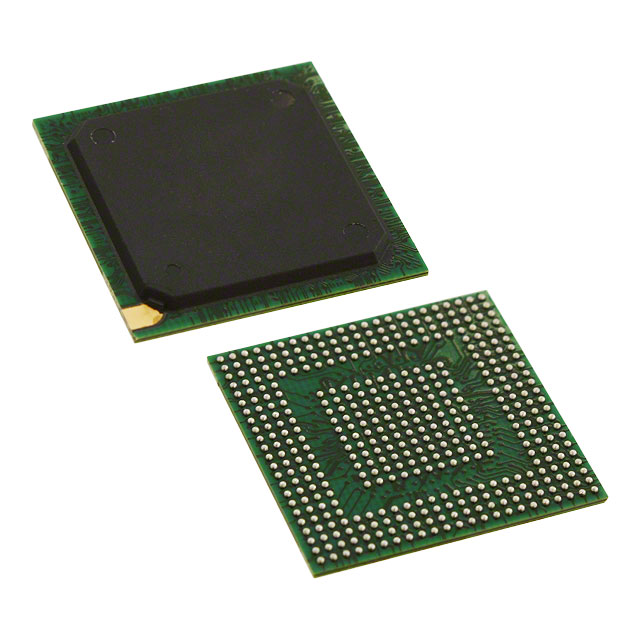

• Package & Thermal — 425‑TEPBGA surface‑mount package (19 × 19 mm) and an operating temperature range of 0 °C to 105 °C; RoHS compliant.

Typical Applications

• Wireless LAN access points — Single‑core processing plus integrated Ethernet and security engine for secure wireless gateway and access point designs.
• SOHO/SMB routers — Multi‑port Gigabit Ethernet, USB 2.0 and DDR3 memory controller enable compact, feature‑rich router platforms.
• Network attached storage (NAS) — Dual SATA 3 Gbps ports, XOR engine for RAID parity and storage‑oriented security acceleration support entry‑level NAS systems.
• Video surveillance — Integrated networking and storage interfaces combined with secure boot and cryptography provide a foundation for secure video recording and distribution.
• Factory automation and industrial control — Deterministic 1.0 GHz core, CAN interface and broad I/O make the device suitable for embedded controllers and automation gateways.

Unique Advantages

• Highly integrated communications peripherals: Multiple Gigabit Ethernet ports, dual SATA, USB 2.0 with PHY and CAN reduce external components and simplify board design.
• Built‑in storage and RAID support: Dual SATA 3 Gbps ports and XOR engine capability (from the series specification) enable efficient local storage and RAID parity tasks.
• Trusted security foundation: Secure boot, secure fusebox, cryptographic accelerators and an RNG provide hardware mechanisms to protect code, keys and data.
• Balanced single‑core performance and low power: A 1.0 GHz e500v2 core implemented for low‑power operation delivers suitable throughput for value‑tier communications products.
• Compact BGA package: 425‑TEPBGA (19×19 mm) surface‑mount package supports high‑density board designs while maintaining thermal and mechanical consistency.
• Standards‑oriented feature set: On‑chip interfaces and accelerators align with common networking and storage standards used in embedded communications equipment.

Why Choose P1010NSE5FFB?

The P1010NSE5FFB positions itself as a single‑core, communications‑centric microprocessor that balances integration and efficiency. With a PowerPC e500v2 core at 1.0 GHz, multiple Gigabit Ethernet ports, SATA storage interfaces, DDR3 memory support and a comprehensive security subsystem, it addresses the needs of cost‑sensitive networking, storage and industrial systems.

As a member of the QorIQ P1 family, this device offers designers a compact, secure and well‑rounded platform for deployments where integrated connectivity, storage support and trusted boot/security are required. Its combination of interfaces and accelerators helps reduce BOM and streamline system software integration for entry‑level to mid‑range embedded products.

Request a quote or submit an RFQ to obtain pricing and availability for P1010NSE5FFB and to discuss lead times and volume options.
