R9A06G032VGBA#AC0

The R9A06G032VGBA#AC0 is a Renesas RZ/N1D-series microprocessor IC featuring a three-core, 32-bit architecture that includes ARM® Cortex®-A7 and ARM® Cortex®-M3 processors. It integrates memory controllers, high-speed Ethernet, USB, and on-chip security engines to target industrial embedded systems requiring connectivity, secure processing and display control.

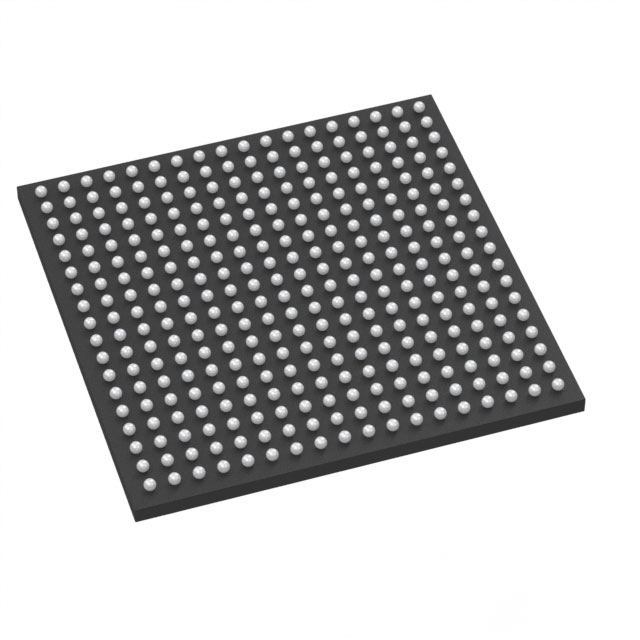

Delivered in a 324-LFBGA (15×15) surface-mount package and specified for industrial operation, this device is positioned for designs that need combined application-processing and microcontroller-class co-processing with hardware cryptography support.

Key Features

• Core Architecture – Three 32-bit cores leveraging ARM® Cortex®-A7 and ARM® Cortex®-M3 processors for combined application and real-time/co-processor tasks.
• Clock Performance – Documented core frequencies shown in the product description include 125 MHz and 500 MHz, suitable for mixed-performance embedded workloads.
• Memory Interfaces – Built-in DDR2 and DDR3 memory controller support for system memory interfacing and flexible memory subsystem design.
• Ethernet Connectivity – Integrated 10/100/1000 Mbps Ethernet for wired networking and high-throughput communication use cases.
• USB Support – Two USB 2.0 ports providing standard host/device connectivity for peripherals and external devices.
• Display Support – On-chip LCD display interface controller for human‑machine interface and panel integration.
• Security Engines – Hardware crypto primitives including AES, ARC4, DES, 3DES, MD5, SHA-1, SHA-224 and SHA-256 to accelerate secure communications and data protection.
• Industrial Qualification & Thermal Range – Specified for industrial operation with an operating temperature range of -40°C to 85°C.
• Package & Mounting – 324-LFBGA package (15×15) optimized for surface-mount PCB assembly in space-constrained embedded boards.
• RoHS Compliance – Environmentally compliant with RoHS requirements.

Typical Applications

• Industrial Networking – Gigabit Ethernet and integrated security enable field gateways, protocol converters and industrial communication controllers.
• Human‑Machine Interfaces (HMI) – LCD controller and application-processing cores support touchscreen displays, menu systems and operator panels.
• Secure Embedded Systems – On-chip cryptographic engines and hashing algorithms provide hardware-accelerated security for encrypted communications and data integrity.
• Edge/IoT Gateways – Combined application cores, USB connectivity and memory interface support make the device suitable for local aggregation and preprocessing of sensor and peripheral data.

Unique Advantages

• Combined Application and Real-Time Processing: Three-core arrangement with ARM® Cortex®-A7 and Cortex®-M3 enables separation of high-level application tasks and deterministic control or co-processing.
• Integrated High-Speed Networking: 10/100/1000 Mbps Ethernet reduces external component needs for networked embedded products.
• On-Device Cryptography: Comprehensive hardware security features offload compute-intensive algorithms and simplify secure system design.
• Flexible Memory Support: DDR2/DDR3 controller compatibility allows use of common memory technologies to match system cost and performance targets.
• Industrial Temperature Range: Specified -40°C to 85°C operation supports deployment in industrial environments.
• Compact LFBGA Package: 324-LFBGA (15×15) package offers high pin density and compact footprint for space-constrained boards.

Why Choose R9A06G032VGBA#AC0?

The R9A06G032VGBA#AC0 positions itself as a versatile embedded processor for industrial and connected applications by combining multi-core processing, wired networking, USB connectivity, display control and hardware security in a single 324-LFBGA package. Its industrial temperature rating and RoHS compliance make it suitable for robust deployments.

Supported by Renesas RZ/N1D documentation and user manuals, the device is appropriate for designers seeking an integrated platform that balances application processing, real-time co-processing and on‑chip cryptography while leveraging standard DDR memory options.
