T2080NSN8PTB

The T2080NSN8PTB is a PowerPC e6500-based QorIQ T2 series microprocessor featuring four 64-bit cores running at 1.533 GHz. Designed for embedded applications, it combines multi-core processing, multi-protocol I/O and on-chip security features to address demanding communications and compute tasks.

With integrated DDR3/DDR3L memory controllers, a broad array of Ethernet interfaces and storage/USB connectivity, the T2080NSN8PTB targets embedded networking, storage and secure edge compute designs that require balanced performance and system integration.

Key Features

• Core and Performance
  PowerPC e6500 architecture with four 64-bit cores at 1.533 GHz for parallel processing and multi-threaded embedded workloads.
• Memory Subsystem
  On-chip controllers for DDR3 and DDR3L memory to support system memory requirements and platform responsiveness.
• High‑Speed Networking
  Multiple integrated Ethernet interfaces: eight 1 Gbps, four 2.5 Gbps and four 10 Gbps lanes to support diverse networking topologies and throughput requirements.
• Storage and Peripheral I/O
  Dual SATA 3 Gbps ports and two USB 2.0 ports with PHY for local storage and peripheral connectivity.
• Security Features
  Built-in Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection and Volatile Key Storage to protect firmware, keys and critical system assets.
• Package and Mounting

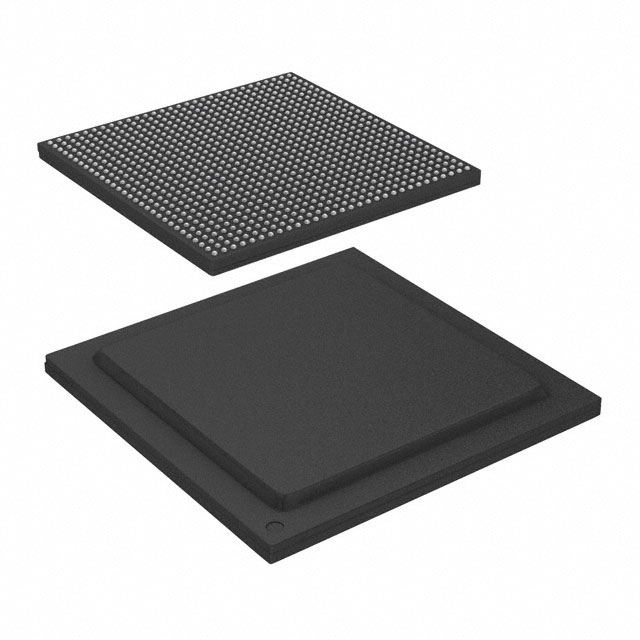

  Delivered in an 896-FCPBGA (25×25) package suitable for surface-mount PCB assembly.
• Operating Range and Compliance
  Rated for operation from 0 °C to 105 °C and RoHS compliant for regulatory alignment in product builds.

Typical Applications

• Embedded Networking Equipment
  Multi-rate Ethernet interfaces make the device suitable for routers, switches and network appliances that require varied port speeds and high aggregate throughput.
• Storage Appliances and NAS
  Dual SATA 3 Gbps ports and integrated USB support enable use in compact storage controllers and network-attached storage systems.
• Secure Communications and Gateways
  On-chip cryptography and secure debug/boot features support devices that need protected firmware, key storage and secure data paths.
• Edge Compute and Control Platforms
  Quad-core 64-bit processing and DDR3/DDR3L memory support local compute tasks, protocol handling and control functions at the network edge.

Unique Advantages

• Balanced Multi‑Core Processing: Four 64-bit e6500 cores at 1.533 GHz provide parallel compute capacity for multitasking embedded workloads.
• Comprehensive Networking I/O: Integrated 1 Gbps, 2.5 Gbps and 10 Gbps Ethernet lanes reduce external PHY and switch requirements for network-centric designs.
• Integrated Security Suite: Hardware support for boot security, cryptography, secure fusebox and tamper detection simplifies implementation of secure devices.
• Flexible Memory and Storage Support: DDR3/DDR3L controllers with SATA and USB interfaces enable a variety of system memory and local storage configurations.
• Compact BGA Package: The 896-FCPBGA (25×25) package delivers dense integration for space-constrained boards while supporting surface-mount assembly processes.
• RoHS Compliant: Meets RoHS requirements to align with environmental compliance objectives.

Why Choose T2080NSN8PTB?

The T2080NSN8PTB positions itself as an integrated embedded microprocessor combining a quad-core 64-bit PowerPC e6500 compute subsystem with a rich set of networking, storage and security features. Its mix of multi-rate Ethernet, SATA and USB connectivity with DDR3/DDR3L memory support provides system designers with a compact platform for building connected, secure embedded products.

This device is well suited for teams developing embedded networking equipment, storage appliances, secure gateways and edge compute nodes that require multi-core performance, hardware security features and consolidated I/O in a single surface-mount BGA package.

Request a quote or submit an inquiry to receive pricing and availability for the T2080NSN8PTB and to discuss how it can fit into your next embedded design.
