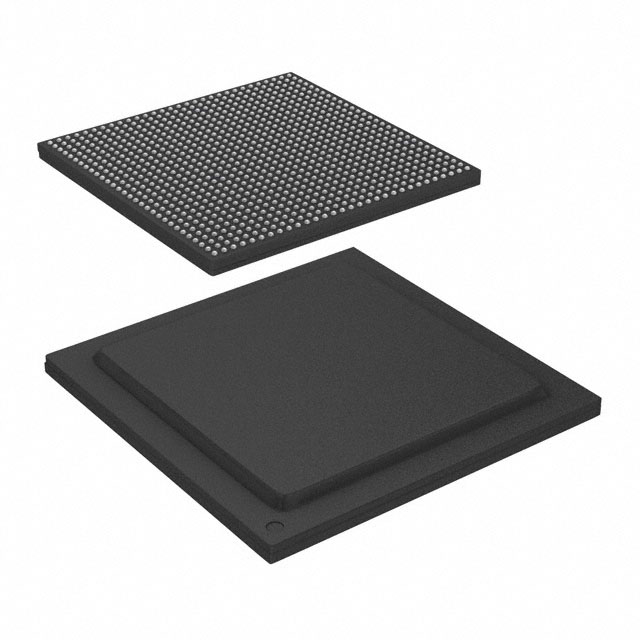

T2080NSN8TTB

The T2080NSN8TTB is a PowerPC e6500 microprocessor from NXP Semiconductors' QorIQ T2 series. It integrates four 64-bit e6500 cores running at 1.8 GHz in an 896-FCPBGA (25×25) package for embedded system designs.

Designed for embedded applications that require multi-core processing, a broad set of high-speed interfaces and on-chip security, the device combines compute performance with integrated connectivity and security features to simplify system design.

Key Features

• Core and Performance  Quad PowerPC e6500 cores, 64‑bit architecture operating at 1.8 GHz for multi-threaded embedded workloads.
• Memory  Integrated DDR3 and DDR3L memory controllers to support system memory configurations.
• Networking and I/O  Multiple Ethernet interfaces with eight 1 Gbps ports, four 2.5 Gbps ports and four 10 Gbps ports, plus USB 2.0 with PHY support for peripheral connectivity.
• Storage  Two SATA 3 Gbps interfaces for direct attachment of storage devices.
• Security  On-chip Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection and Volatile Key Storage for system hardening and secure boot flows.
• Package and Mounting  896‑FCPBGA (25×25) surface-mount package (896‑BFBGA / FCBGA family) suitable for compact board designs.
• Operating Range  Operational temperature range from 0 °C to 105 °C for a range of embedded environments.
• Compliance  RoHS compliant.

Typical Applications

• Networking Equipment  Multi-port Ethernet capability and multi-core processing make it suitable for routers, switches and network appliances that need high-density interfaces.
• Secure Gateways and Firewalls  Integrated cryptography, secure boot and tamper detection support security-focused edge devices and gateway applications.
• Storage Controllers  Dual SATA 3 Gbps interfaces enable use in storage front-ends, NAS controllers or hybrid storage appliances.
• Industrial Embedded Systems  DDR3/DDR3L memory support, robust package and a 0 °C to 105 °C operating range suit industrial embedded deployments.

Unique Advantages

• Multi-core 64-bit Performance: Four e6500 cores at 1.8 GHz provide parallel processing capability for compute-intensive embedded tasks.
• Extensive Interface Integration: On-chip Ethernet (1 Gbps, 2.5 Gbps, 10 Gbps), SATA and USB reduce external controller requirements and simplify board design.
• Built-in Security Primitives: Boot Security, Cryptography and Secure Fusebox features enable hardware-anchored security models without adding external security ICs.
• Memory Flexibility: DDR3 and DDR3L controller support allows system designers to choose memory options that match power and cost targets.
• Compact BGA Package: 896‑FCPBGA (25×25) packaging balances I/O density with a compact footprint for space-constrained systems.
• Extended Operating Range: Rated from 0 °C to 105 °C to meet a range of embedded environment temperature requirements.

Why Choose T2080NSN8TTB?

The T2080NSN8TTB positions itself as an integrated microprocessor solution for embedded designs that need multi-core 64‑bit performance alongside a comprehensive set of high-speed interfaces and on-chip security. Its combination of four e6500 cores at 1.8 GHz, multiple Ethernet speeds, SATA, USB and dedicated security features helps reduce external components and streamline system architecture.

Backed by NXP Semiconductors and supplied in a compact 896‑FCPBGA package, this device is suited to customers developing networking, secure gateway, storage and industrial embedded systems where integration, performance and predictable operating range are key selection criteria.

Request a quote or submit an inquiry to check availability, pricing and lead time for the T2080NSN8TTB. Our team can provide ordering details and support for your design evaluation needs.
