T2080NXE8MQB

The T2080NXE8MQB is a PowerPC e6500-based QorIQ T2 series microprocessor from NXP Semiconductors. It integrates four 64-bit cores running at 1.2 GHz and a broad set of I/O and security features for embedded and industrial applications.

Designed for systems that require multi-core processing, extensive networking and storage connectivity, and hardware security, the device delivers consolidated integration for space-constrained and rugged embedded designs.

Key Features

• Core and Architecture Four PowerPC e6500 64-bit cores operating at 1.2 GHz, delivering multi-threaded compute for embedded workloads.
• Memory Support Integrated controllers for DDR3 and DDR3L memory to support system memory requirements.
• High‑Speed Networking Multiple Ethernet interfaces including eight 1 Gbps ports, four 2.5 Gbps ports, and four 10 Gbps ports for scalable networking and communications designs.
• Storage and USB Two SATA 3 Gbps channels and two USB 2.0 ports with PHY support enable local storage and peripheral connectivity.
• Security Features Hardware boot security, cryptography, secure fusebox, secure debug, tamper detection, and volatile key storage for embedded system protection.
• System Interfaces Additional standard interfaces such as I2C are available for sensor and control connectivity.

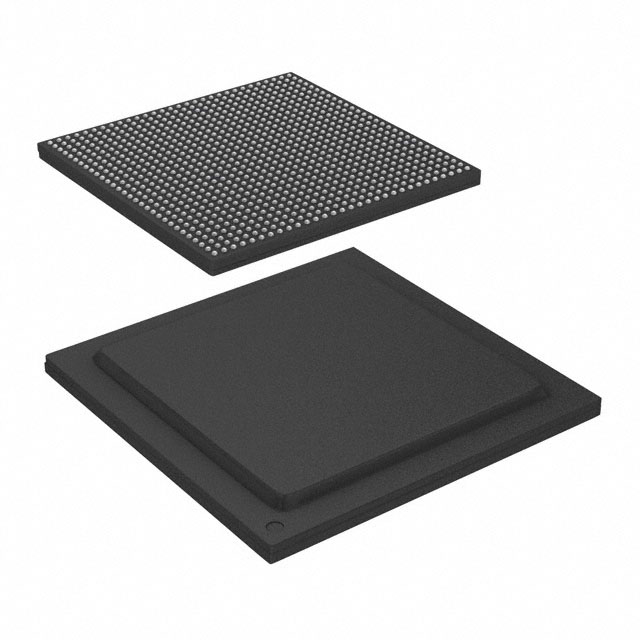

• Package and Mounting Supplied in a 896‑FCPBGA (25×25) package; package family listed as 896‑BFBGA/FCBGA and intended for surface mount assembly.
• Operating Range and Qualification Industrial qualification with an operating temperature range of −40°C to 105°C for deployment in demanding environments.
• Graphics No graphics acceleration is provided by this device.

Typical Applications

• Industrial Control Systems — Multi-core processing and industrial temperature qualification make this device suitable for control and automation platforms.
• Network Appliances — Extensive Ethernet ports and high-speed interfaces support routing, switching, and network edge devices.
• Storage and NAS Solutions — Dual SATA channels and integrated USB PHYs enable compact storage controllers and network-attached storage implementations.
• Secure Embedded Platforms — On-chip security primitives and tamper detection support secure boot and trusted system designs.

Unique Advantages

• Multi-Core 64‑Bit Processing: Four PowerPC e6500 cores at 1.2 GHz provide parallel compute capacity for multi-threaded embedded workloads.
• Comprehensive Networking Integration: Up to eight 1 Gbps, four 2.5 Gbps and four 10 Gbps Ethernet ports reduce external PHY and switch requirements for network-centric designs.
• Integrated Storage and I/O: Built-in SATA and USB PHY support simplifies system design for local storage and peripheral connectivity.
• Robust Hardware Security: Boot security, cryptography, secure fusebox, secure debug and tamper detection enable stronger device trust models.
• Industrial Temperature Qualification: Rated from −40°C to 105°C for reliable operation in harsh environmental conditions.
• Compact BGA Package: 896‑FCPBGA (25×25) package supports high I/O density in compact board layouts.

Why Choose T2080NXE8MQB?

The T2080NXE8MQB combines multi-core PowerPC e6500 processing with extensive networking, storage and security features in a single industrial-qualified device from NXP Semiconductors. Its mix of interfaces and integrated security primitives makes it well suited for embedded systems that require consolidated compute, high-speed I/O and robust protection.

Designers targeting industrial control, network appliances, secure embedded platforms or compact storage systems will find the T2080NXE8MQB offers a balanced combination of performance, integration and environmental resilience to support long-term deployments.

Request a quote or submit an inquiry for pricing and availability of the T2080NXE8MQB to move your design forward.
