XAM6958ATGGHAALY

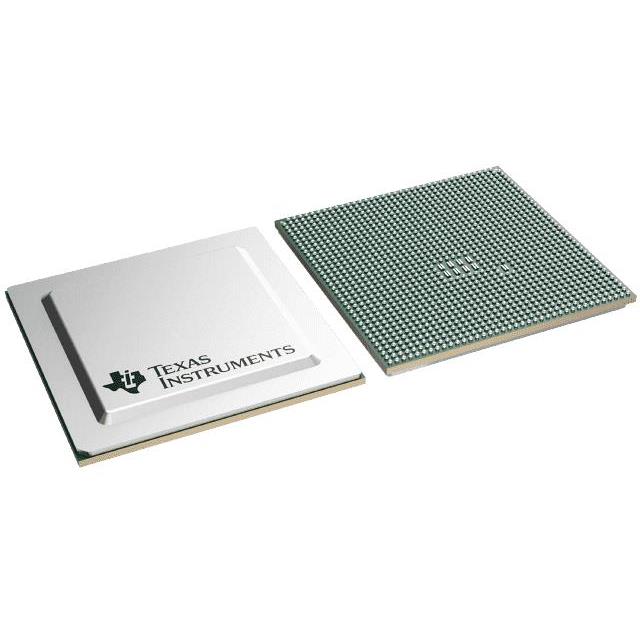

The XAM6958ATGGHAALY is an AM69Ax-series microprocessor IC from Texas Instruments featuring an ARM® Cortex®-A72 8-core, 64-bit architecture running at 2 GHz in a 1414-FCBGA (31×31) package. Designed for embedded and industrial applications, it combines multi-core application processing with integrated security, high-speed connectivity, and display/multimedia interfaces.

Key Features

• Core & Performance  ARM® Cortex®-A72 eight-core, 64-bit processor running at 2 GHz for multi-threaded application workloads.
• Co-processors  Integrated ARM® Cortex®-R5F co-processor plus multimedia and GPU capabilities for real-time control and graphics acceleration.
• Memory  LPDDR4 memory controller support for high-bandwidth system memory.
• Display & Multimedia  Display interface controllers including DPI, eDP and MIPI-DSI, and graphics acceleration for rich user interfaces.
• Ethernet & Networking  Multiple Ethernet options: two 10/100/1000 Mbps ports and eight 2.5 Gbps ports for broad networking flexibility.
• USB & Peripheral I/O  USB 3.0 support (1) plus additional interfaces including CANbus for peripheral and vehicle/industrial networks.
• Security Features  On-chip security and cryptography primitives including 3DES, AES, RSA, ECC, SHA, MD5, PKA, DRBG and a random number generator, with secure boot support.
• Package & Mounting  1414-FCBGA (31×31) surface-mount package (1414-BFBGA, FCBGA listed) suitable for board-level integration.
• Industrial Temperature Range  Specified operating temperature from −40 °C to 105 °C for industrial-grade deployments.
• Compliance  RoHS compliant.

Typical Applications

• Industrial Automation  Multi-core processing, real-time co-processor and robust operating temperature support control, monitoring and analytics in industrial systems.
• Networking & Communications  Multiple Gigabit and 2.5 Gbps Ethernet ports enable routing, switching and gateway applications requiring high-throughput connectivity.
• Human-Machine Interfaces (HMI)  Display interfaces (DPI, eDP, MIPI-DSI) and graphics acceleration support rich graphical UIs and visualization.
• Multimedia Gateways  USB 3.0, GPU and multimedia co-processing make the device suitable for media handling and device aggregation tasks.

Unique Advantages

• High-performance multi-core processing: Eight 64-bit Cortex-A72 cores at 2 GHz provide substantial application throughput for compute-intensive embedded tasks.
• Integrated real-time and multimedia co-processing: ARM Cortex-R5F and GPU/multimedia blocks enable concurrent real-time control and graphics or media processing.
• Comprehensive security feature set: Cryptography primitives, secure boot and RNG support help implement hardware-assisted security functions.
• Flexible connectivity: A mix of Ethernet ports including 2.5 Gbps lanes, USB 3.0 and CANbus accommodates diverse network and peripheral requirements.
• Industrial-ready thermal range: Rated from −40 °C to 105 °C for deployment in temperature-challenging environments.
• Board-level integration: 1414-FCBGA surface-mount package enables compact system designs.

Why Choose XAM6958ATGGHAALY?

The XAM6958ATGGHAALY positions itself as a high-performance, highly integrated microprocessor for embedded and industrial designs. With an eight-core ARM® Cortex®-A72 engine, real-time co-processor, extensive security features and a wide set of connectivity and display interfaces, it meets the needs of applications requiring compute density, secure operation and flexible I/O.

Manufactured by Texas Instruments and supplied in a 1414-FCBGA package with industrial temperature rating and RoHS compliance, this device is suited for designers targeting scalable, robust embedded platforms that combine application processing, networking and multimedia capabilities.

Request a quote or submit a purchase inquiry for XAM6958ATGGHAALY to begin evaluating this Sitara AM69x-series microprocessor for your next embedded or industrial design.
