XAM69A98ATNGHAALY

The XAM69A98ATNGHAALY is a Sitara AM69A series microprocessor from Texas Instruments featuring an ARM® Cortex®-A72 8-core, 64-bit architecture running at 2 GHz. It is targeted at industrial embedded systems that require multi-core compute, rich multimedia interfaces, high-speed networking, and integrated security features.

Designed for industrial-grade deployments, this device consolidates application processors, real-time coprocessors, display controllers and a range of connectivity options to simplify system-level integration.

Key Features

• Core and Performance  ARM® Cortex®-A72 8-core, 64-bit processor running at 2 GHz for multi-threaded application workloads.
• Coprocessors and Acceleration  Includes ARM® Cortex®-R5F coprocessors plus multimedia and GPU acceleration to offload real-time and graphics tasks.
• Memory Support  LPDDR4 memory controller compatibility for high-bandwidth system memory.
• Display Interfaces  Integrated display controllers supporting eDP and MIPI-DSI for advanced human-machine interfaces and displays.
• High-speed Networking  Multiple Ethernet options: 10/100/1000 Mbps (2 ports) and 2.5 Gbps (8 ports) to support LAN and high-throughput networking functions.
• USB and Peripheral Connectivity  Includes USB 3.1 (1) and additional interfaces such as CANbus for broad peripheral support.
• Security and Cryptography  Hardware security features including 3DES, AES, ECC, RSA, SHA, MD5, PKA, DRBG, Random Number Generator and Secure Boot.

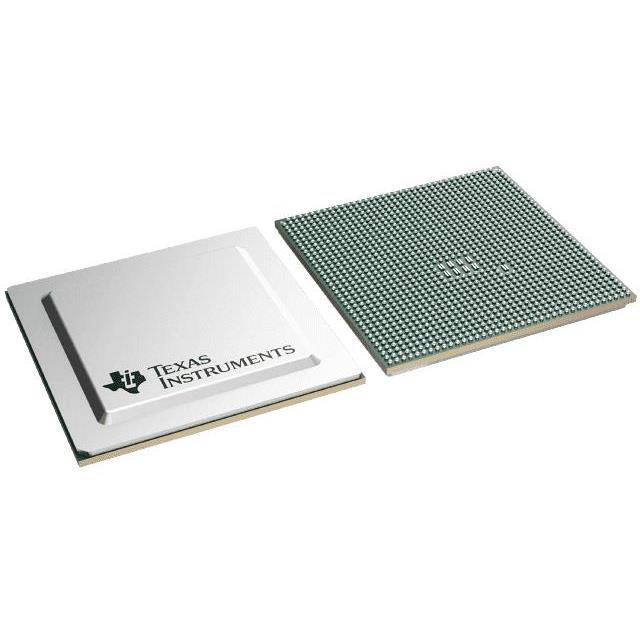

• Package and Mounting  1414-FCBGA (31×31) package, surface mount, suitable for compact embedded system designs.
• Industrial Temperature Range  Rated for operation from -40 °C to 105 °C, supporting deployment in industrial environments.
• Compliance  RoHS compliant.

Typical Applications

• Industrial Control  Multi-core processing and industrial temperature rating enable reliable control and monitoring systems.
• Edge Networking & Gateways  Multiple 2.5 Gbps and Gigabit Ethernet ports provide the bandwidth needed for network aggregation and edge routing.
• Human-Machine Interfaces (HMI)  eDP and MIPI-DSI display controllers with GPU acceleration support responsive, graphics-rich operator panels.
• Secure Embedded Systems  Integrated cryptography and secure boot features help protect firmware and data in industrial deployments.

Unique Advantages

• High multi-core compute density: 8 Cortex‑A72 cores at 2 GHz deliver scalable application performance for demanding embedded workloads.
• Integrated multimedia and real-time support: On-chip Cortex‑R5F coprocessors and GPU/multimedia blocks separate real-time and graphics tasks from application processing.
• Extensive wired connectivity: A mix of Gigabit and 2.5 Gbps Ethernet ports plus USB 3.1 and CANbus streamlines networked and peripheral designs.
• Comprehensive hardware security: Built-in cryptographic engines and secure boot reduce system-level security design effort.
• Industrial-ready thermal range: -40 °C to 105 °C rating supports deployment in harsh environments without additional thermal qualification.
• Compact BGA footprint: 1414‑FCBGA (31×31) package enables high-density board layouts for space-constrained systems.

Why Choose XAM69A98ATNGHAALY?

The XAM69A98ATNGHAALY places multi-core Cortex‑A72 performance, real-time coprocessors, rich display and multimedia support, and extensive networking in a single industrial-grade package from Texas Instruments. Its combination of compute, connectivity, and hardware security makes it suited for embedded designs that demand consolidated functionality and reliable operation across a wide temperature range.

Choose this device when your design requires scalable application processing, integrated multimedia and security, and high-speed wired connectivity in a compact, surface-mount FCBGA package.

Request a quote or contact sales to discuss availability and volume pricing for XAM69A98ATNGHAALY and to receive technical ordering information.
