XJ7200GALM

The XJ7200GALM is a microprocessor from Texas Instruments' Jacinto J7200 series featuring a heterogeneous quad-core configuration: dual ARM® Cortex®-A72 and dual ARM® Cortex®-R5F cores. It delivers up to 2 GHz core clocking and integrates high-speed interfaces and hardware security primitives for demanding embedded applications.

Built with LPDDR4 memory controller support, multiple gigabit Ethernet ports and a USB 3.0 interface, the device targets embedded systems that require a balance of high-performance application processing, real-time control, and integrated security features.

Key Features

• Core Architecture Dual ARM® Cortex®-A72 plus dual ARM® Cortex®-R5F cores, providing a 4‑core heterogeneous processing platform combining 64‑bit and 32‑bit execution.
• Performance Up to 2 GHz operating speed for high-throughput application processing.
• Memory Support LPDDR4 memory controller compatibility for high-bandwidth system memory.
• Networking and I/O Two 10/100/1000 Mbps Ethernet interfaces and one USB 3.0 port for high-speed connectivity and peripheral support.
• Security Engine Hardware security features including 3DES, AES, DRBG TRNG, MD5, PKA, SHA1 and SHA2 to support cryptographic and secure boot workflows.

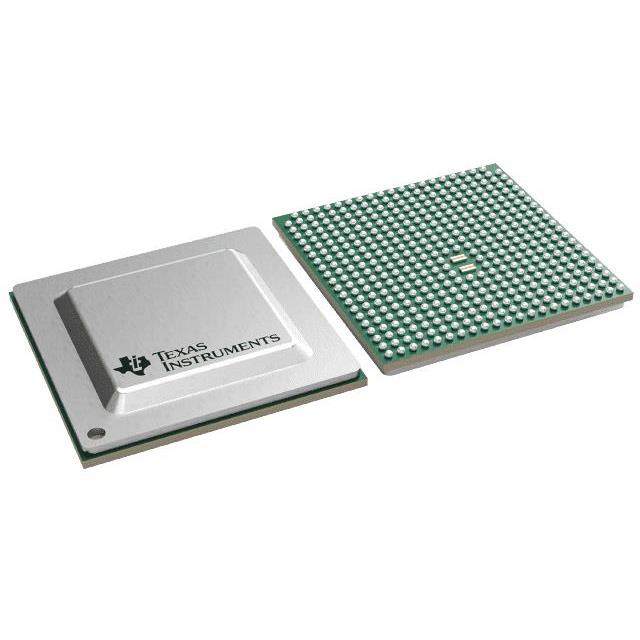

• Package & Mounting Available in a 433‑ball FCBGA package (433‑FCBGA, 17.2×17.2 mm) suitable for surface mount PCB assembly.
• Operating Range Designed for wide temperature operation from −40 °C to 125 °C for thermally demanding environments.
• Environmental Compliance RoHS compliant.
• Additional Interfaces I²C interface for peripheral control and system management.

Typical Applications

• Embedded Systems Used as the primary processing element in embedded platforms that require mixed 64‑bit application processing and 32‑bit real‑time control.
• Industrial Control Suitable for industrial controllers and automation where wide operating temperature range and integrated I/O are important.
• Networked Devices Applied in networked embedded devices leveraging the dual gigabit Ethernet interfaces and USB 3.0 for connectivity and data transfer.
• Secure Processing Deployed in systems that require hardware cryptography and random number generation to protect data and communications.

Unique Advantages

• Heterogeneous Quad‑Core Design: Combines dual Cortex‑A72 and dual Cortex‑R5F cores to separate high‑level application workloads from real‑time tasks.
• High Clock Speed: 2 GHz frequency headroom for compute‑intensive application processing.
• Integrated High‑Speed I/O: Dual gigabit Ethernet and USB 3.0 simplify system architecture for connected embedded designs.
• Robust Security Feature Set: On‑chip AES, 3DES, SHA, PKA and TRNG support secure communications and cryptographic operations without external accelerators.
• Wide Temperature Capability: −40 °C to 125 °C operating range supports deployment in thermally challenging environments.
• Compact FCBGA Package: 433‑ball FCBGA (17.2×17.2 mm) enables high integration density for space‑constrained PCBs.

Why Choose XJ7200GALM?

The XJ7200GALM positions itself as an integrated microprocessor solution for embedded designs that need a mix of high‑performance application processing, deterministic real‑time control and on‑chip security. Its combination of dual Cortex‑A72 and dual Cortex‑R5F cores, LPDDR4 support, multiple Ethernet ports and hardware crypto primitives provides a focused platform for complex embedded systems.

Design teams targeting connected, secure and thermally demanding deployments will find the XJ7200GALM suited to scalable architectures where performance, integrated I/O and cryptographic capabilities are required for long‑term system robustness.

Request a quote or submit an inquiry to receive pricing, availability, and technical support information for the XJ7200GALM. A sales contact will provide the next steps to procure samples or production quantities.
