Z8018006VEC00TR

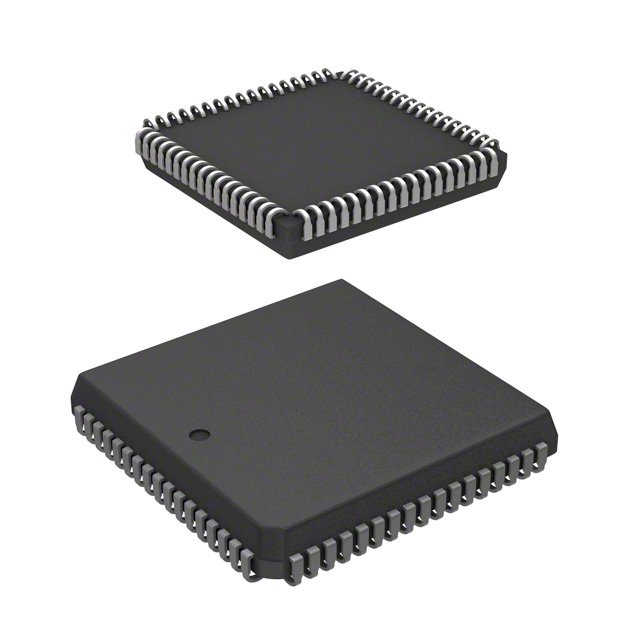

The Z8018006VEC00TR is a Zilog Z80180 microprocessor IC featuring a single 8-bit core running at 6 MHz. It combines the Z80180 core architecture with on-chip support for external DRAM and a serial ASCI interface, packaged for surface-mount assembly in a 68-pin PLCC.

Designed for embedded and industrial applications, this device offers 5 V I/O compatibility and an industrial temperature rating of −40 °C to 100 °C, making it suitable for deployments that require proven 8-bit processing, external memory support, and reliable operation across a wide temperature range.

Key Features

• Z80180 8-bit core  Single-core 8-bit Z80180 processor running at 6 MHz for deterministic embedded control tasks.
• DRAM controller  On-chip DRAM controller simplifies external memory interfacing and reduces system design complexity.
• 5 V I/O  Standard 5 V I/O voltage for compatibility with common legacy and industrial logic levels.
• ASCI serial interface  Integrated ASCI support for serial communication with peripherals and subsystems.
• Surface-mount 68‑PLCC package  Supplier device package is 68-PLCC (68-LCC J-lead) for surface-mount assembly and compact board layouts.
• Industrial temperature grade  Operating temperature range from −40 °C to 100 °C for reliable field operation in harsh environments.
• RoHS compliant  Meets RoHS requirements for reduced hazardous substances.

Typical Applications

• Industrial control  Use as a main controller in industrial equipment where 8-bit processing, 5 V I/O compatibility, and wide temperature operation are required.
• Embedded systems  Ideal for embedded designs that need a compact surface-mount microprocessor with external DRAM support and serial connectivity.
• Legacy system integration  Suitable for integration into systems that rely on 5 V logic levels and PLCC form factors for replacement or maintenance.
• Memory‑dependent peripherals  Applies to designs that benefit from on-chip DRAM controller support for external memory interfacing.

Unique Advantages

• Integrated DRAM support: Reduces external glue logic and simplifies BOM by providing a DRAM controller on-chip.
• Industrial temperature rating: −40 °C to 100 °C specification enables deployment in temperature-critical and industrial environments.
• 5 V I/O compatibility: Ensures straightforward interfacing with legacy and widely used embedded logic levels.
• Compact surface-mount PLCC: 68-PLCC package supports automated assembly and offers a compact footprint for PCB designs.
• Serial connectivity with ASCI: Built-in ASCI interface enables simple serial communication with peripherals and subsystems.
• RoHS compliant: Helps meet regulatory and environmental requirements for electronic assemblies.

Why Choose Z8018006VEC00TR?

The Z8018006VEC00TR positions itself as a practical, industrial-grade 8-bit microprocessor solution within Zilog's Z180 family. With a 6 MHz Z80180 core, integrated DRAM controller, ASCI interface, and 5 V I/O, it addresses embedded designs that require predictable, low-complexity processing and external memory support.

Engineers building industrial controllers, embedded appliances, or legacy-system upgrades will find long-term value in the device's wide operating temperature range, RoHS compliance, and standard 68‑PLCC surface-mount package—combining deployment-ready reliability with straightforward board-level integration.

Request a quote or submit an inquiry to obtain pricing and availability for Z8018006VEC00TR.
