Z8018006VSC

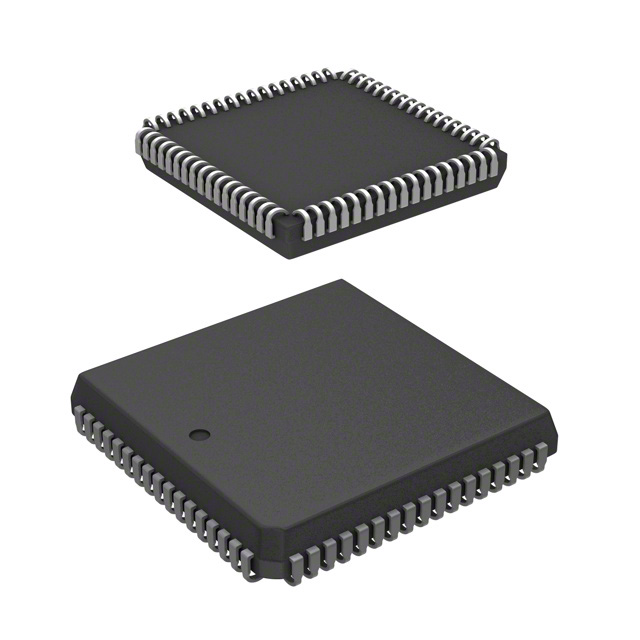

The Z8018006VSC is a Zilog Z80180-based microprocessor packaged in a 68-pin PLCC J-lead surface-mount package. It provides a single 8-bit core running at 6 MHz with on-chip DRAM controller support and an ASCI interface, targeting embedded applications that require established 8-bit processing and standard interconnects.

Designed for commercial-grade embedded systems, the device operates from a 5 V I/O domain and is specified for an ambient temperature range of 0 °C to 70 °C. The part is RoHS compliant and offered in a compact 68‑LCC (J‑Lead) package for space-efficient board designs.

Key Features

• Core and Architecture Z80180 single-core, 8-bit processor operating at 6 MHz, suitable for legacy and resource-constrained embedded control tasks.
• Memory Interface On-chip DRAM controller support to simplify external memory interfacing and reduce board-level logic.
• Interfaces Includes an ASCI interface for serial communication between peripherals and host systems.
• Power 5 V I/O supply domain, matching common legacy and embedded power architectures.
• Package and Mounting 68-LCC (J-Lead) / 68-PLCC surface-mount package for compact PCB integration and reliable J‑lead terminations.
• Commercial Grade and Temperature Rated for commercial-grade operation with an ambient temperature range of 0 °C to 70 °C.
• Environmental Compliance RoHS compliant to meet common environmental and manufacturing requirements.

Typical Applications

• Embedded Control Suited for embedded control modules that require 8-bit processing with DRAM support and serial interfacing.
• Industrial and Commercial Equipment Applicable in commercial-grade equipment operating within the 0 °C to 70 °C range where a compact PLCC package is preferred.
• Legacy System Maintenance Useful for designs that need a drop-in 8-bit Z80180 MPU solution in a 68‑pin PLCC form factor.

Unique Advantages

• Proven Z80180 Core: Utilizes the Zilog Z80180 core to deliver predictable 8-bit processing at 6 MHz for established embedded workflows.
• Integrated DRAM Support: Built-in DRAM controller reduces external support circuitry and simplifies memory system design.
• Standard Serial Interface: ASCI interface provides a straightforward serial communications path for peripherals and system peripherals.
• Compact Surface-Mount Package: 68‑PLCC (J‑Lead) surface-mount package enables dense PCB layouts while maintaining reliable solder terminations.
• Commercial Operating Range: Rated 0 °C to 70 °C for typical commercial embedded deployments.
• RoHS Compliant: Complies with RoHS requirements to support modern manufacturing and regulatory needs.

Why Choose Z8018006VSC?

The Z8018006VSC positions itself as a straightforward, commercially graded microprocessor solution for embedded designs that require an 8-bit Z80180 core, 6 MHz operating speed, DRAM controller capability, and a compact 68‑PLCC surface-mount package. Its 5 V I/O domain and ASCI interface make it compatible with common legacy and commercial embedded architectures.

This part is appropriate for designers maintaining or developing compact embedded systems where predictable 8-bit performance, standard interface options, and RoHS compliance are important selection criteria. As a member of the Zilog Z180 series, it provides a familiar feature set for engineers specifying Z80180-based components.

If you would like pricing, availability, or to submit a quote request for Z8018006VSC, please request a quote or submit your purchase inquiry today.
