Z8018233FSG

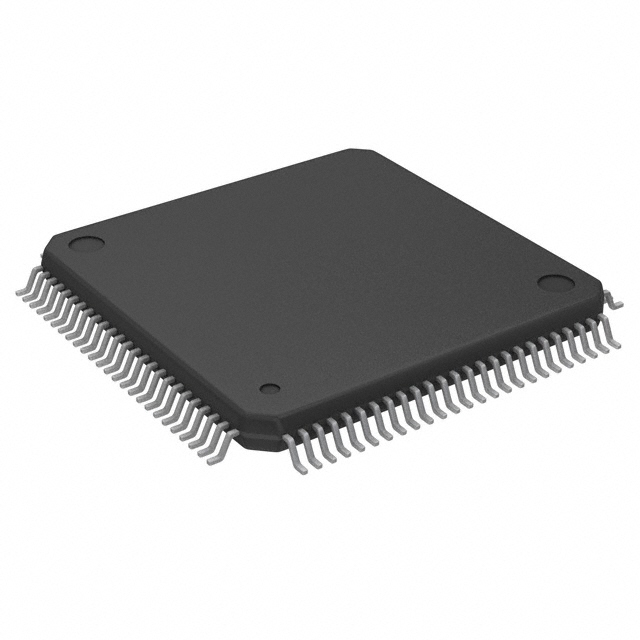

The Z8018233FSG is a Zilog Z180 (Z80182) series microprocessor in a ZIP™ configuration, featuring a single Z80180 core with an 8-bit bus running at 33 MHz. Designed for embedded applications, this commercial-grade MPU integrates a DRAM controller and serial ASCI interface and is supplied in a 100-pin QFP surface-mount package.

This device suits embedded designs requiring 5 V I/O, a compact surface-mount footprint, and operation within a 0 °C to 70 °C commercial temperature range. The part is RoHS compliant for environmentally conscious implementations.

Key Features

• Core and Performance Single Z80180 core with an 8-bit bus operating at 33 MHz, providing deterministic processing for embedded control tasks.
• Memory Controller Integrated DRAM controller to support external dynamic memory in system designs.
• Interfaces Includes ASCI as an additional serial interface for peripheral communication.
• Voltage and I/O 5 V I/O voltage compatibility for systems and peripherals designed around standard 5 V signaling.
• Package and Mounting 100-QFP supplier device package in a surface-mount form factor suitable for compact PCB layouts.
• Operating Range and Grade Commercial grade device specified for operation from 0 °C to 70 °C.
• Environmental Compliance RoHS compliant to meet regulated material requirements.

Typical Applications

• Embedded control — Single-core 8-bit processing at 33 MHz for general-purpose embedded control and interface tasks within the specified commercial temperature range.
• Board-level integration — 100-QFP surface-mount package and 5 V I/O compatibility simplify integration into compact PCB designs.
• Memory-driven designs — Built-in DRAM controller supports applications that require external dynamic memory for data buffering or program storage.
• Serial communication systems — ASCI interface enables serial peripheral connectivity and data exchange in embedded systems.

Unique Advantages

• Single-chip Z80180 core: Delivers an 8-bit processing solution at 33 MHz for predictable embedded performance.
• Integrated DRAM controller: Reduces external memory-interface complexity by providing direct support for dynamic memory.
• 5 V I/O compatibility: Ensures straightforward interfacing with legacy 5 V peripherals and system logic.
• Compact 100-QFP surface-mount packaging: Supports high-density PCB layouts while maintaining a standardized footprint.
• Commercial temperature grade: Specified for 0 °C to 70 °C operation to match typical commercial embedded deployments.
• RoHS compliant: Meets regulated materials requirements for environmentally compliant product designs.

Why Choose Z8018233FSG?

The Z8018233FSG positions itself as a focused embedded MPU option within the Zilog Z180 family, combining a single Z80180 8-bit core at 33 MHz with an integrated DRAM controller and ASCI serial interface. Its 5 V I/O and 100-QFP surface-mount package make it a practical choice for compact, board-level embedded designs operating in commercial environments.

Engineers and procurement teams seeking a RoHS-compliant, commercially graded microprocessor from the Zilog Z180 series will find the Z8018233FSG suitable for applications that require straightforward memory support, serial connectivity, and established 5 V interfacing in a standardized QFP package.

Request a quote or submit a purchasing inquiry to obtain pricing and availability for the Z8018233FSG.
