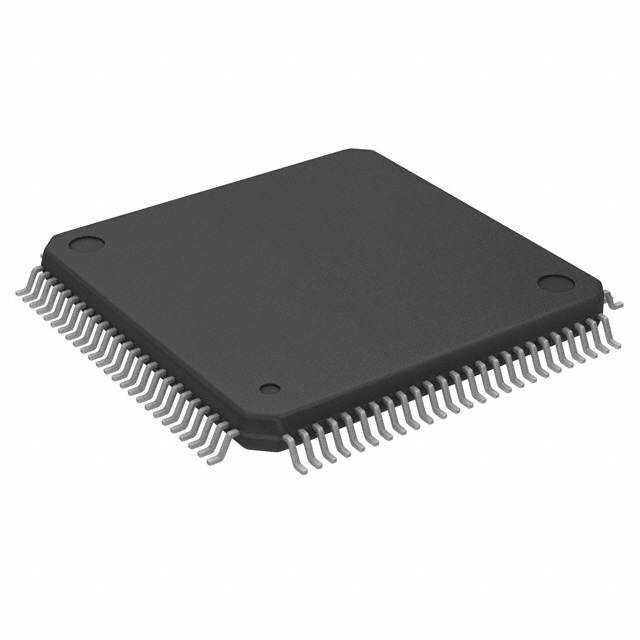

Z8019520FSC

The Z8019520FSC is a Zilog Z180-series microprocessor featuring a single Z8S180 8-bit core running at 20 MHz. Designed for embedded applications, this surface-mount device integrates a DRAM controller and CSIO interface while operating with 5 V I/O.

Targeted at commercial-grade embedded designs, the Z8019520FSC delivers straightforward processing and memory interfacing in a 100‑lead QFP package with a standard commercial operating range and RoHS compliance.

Key Features

• Core & Performance Single Z8S180 8-bit core running at 20 MHz for deterministic, low-complexity processing.
• Memory Support Integrated DRAM controller to simplify external memory interfacing.
• Power & I/O 5 V I/O voltage compatibility for designs that use standard 5 V logic levels.
• Interfaces Additional CSIO interface included for serial communication and peripheral control.
• Package & Mounting 100‑lead QFP package in a surface-mount form factor for compact PCB integration.
• Operating Range & Grade Commercial grade device with an operating temperature range of 0 °C to 70 °C and RoHS compliance.
• Graphics No graphics acceleration — focuses on control and memory interfacing tasks.

Typical Applications

• Embedded Control Control and coordination tasks in embedded systems that require an 8-bit microprocessor and DRAM support.
• Commercial Equipment Platforms and devices with commercial temperature requirements (0 °C to 70 °C) that use 5 V I/O.
• Memory‑Centric Designs Systems needing direct DRAM interfacing where an integrated DRAM controller reduces external logic.
• Serial Peripheral Interfaces Applications utilizing CSIO for serial communication and peripheral management.

Unique Advantages

• Integrated DRAM Controller: Reduces external memory interface components and simplifies PCB design.
• Standard 5 V I/O: Facilitates compatibility with legacy and widely used 5 V peripheral devices.
• Compact Surface‑Mount Package: 100‑lead QFP enables high pin count connectivity in a space-efficient footprint.
• Documented Z180 Series Heritage: Part of the Zilog Z180 (Z80195) series, providing a consistent architecture for design reuse within the family.
• RoHS Compliant: Meets lead‑free regulatory requirements for environmental compliance.
• Commercial Temperature Rating: Suitable for standard commercial environments with an operating range of 0 °C to 70 °C.

Why Choose Z8019520FSC?

The Z8019520FSC positions itself as a practical, integration-focused microprocessor for embedded commercial designs that need an 8-bit Z8S180 core with onboard DRAM control and CSIO connectivity. Its 20 MHz clock, 5 V I/O compatibility, and 100‑QFP surface-mount package make it well suited for compact systems where straightforward memory interfacing and reliable control are primary requirements.

As a member of Zilog’s Z180 (Z80195) series, this part offers a clear upgrade path within the series architecture and aligns with RoHS requirements for modern production. Choose the Z8019520FSC when your design calls for a documented, commercially rated 8-bit MPU with integrated memory support and standard I/O compatibility.

Request a quote for Z8019520FSC to check pricing and availability for your next embedded design.
