Z8019520FSG

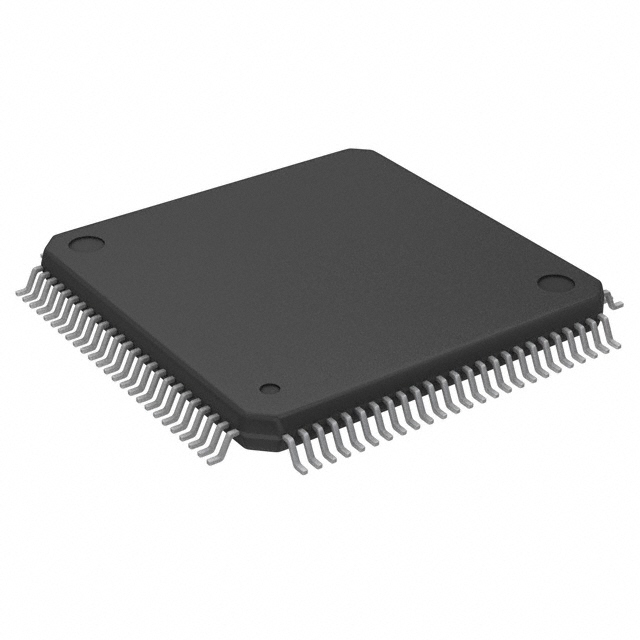

The Z8019520FSG is a Zilog Z180-series microprocessor IC based on the Z8S180 core. It is a single-core, 8-bit embedded MPU designed for commercial-grade applications and integration into surface-mount board designs.

Key attributes include a 20 MHz clock rating, integrated DRAM controller functionality, a 5 V I/O voltage domain, and a 100-QFP package, making it suitable for a range of embedded control and interface tasks within the commercial temperature range.

Key Features

• Core  Z8S180 single-core 8-bit processor providing the Z180 series architecture in a compact MPU.
• Operating Frequency  20 MHz clock speed for deterministic embedded processing consistent with the part's specification.
• Voltage  I/O voltage rated at 5 V, matching common legacy and industrial I/O levels.
• Memory Controller  Includes DRAM controller support as specified, enabling direct interfacing with DRAM memory subsystems.
• Interfaces  Additional interface listed as CSIO to support external connectivity requirements.
• Package & Mounting  100-QFP supplier device package in a surface-mount form factor for PCB space efficiency and automated assembly.
• Temperature Grade  Commercial operating temperature range of 0 °C to 70 °C for typical commercial deployments.
• Environmental Compliance  RoHS compliant to meet standard environmental requirements for electronic assemblies.

Typical Applications

• Embedded Control Systems  Used as the main MCU in embedded systems where an 8-bit Z8S180 core and 20 MHz operation meet control and timing needs.
• Commercial Electronics  Integration into commercial-grade consumer or industrial devices that require a surface-mount microprocessor with DRAM interface capability.
• Interface and I/O Management  Suitable for designs that leverage the part's CSIO interface and 5 V I/O domain for peripheral connectivity.

Unique Advantages

• Single-chip Z8S180 core:  Provides a well-defined 8-bit processing engine for embedded firmware and control logic.
• Integrated DRAM support:  On-chip DRAM controller simplifies memory subsystem design and reduces external glue logic.
• Industry-standard I/O voltage:  5 V I/O compatibility reduces level-shifting requirements for legacy peripherals.
• Surface-mount 100-QFP package:  Compact package compatible with automated assembly and dense PCB layouts.
• Commercial temperature rating:  0 °C to 70 °C operation aligns with a broad set of commercial applications.
• RoHS compliant:  Meets common environmental directives for electronic assemblies.

Why Choose Z8019520FSG?

The Z8019520FSG positions itself as a practical Z180-series microprocessor option for designers needing a single-core 8-bit solution with DRAM controller capability and a 20 MHz clock domain. Its 100‑QFP surface-mount package and 5 V I/O make it straightforward to integrate into existing commercial embedded designs.

Choose Z8019520FSG for projects that require a compact, RoHS-compliant MPU with defined commercial temperature operation and direct DRAM interfacing. The combination of Zilog's Z8S180 core, standard I/O voltage, and surface-mount packaging supports repeatable assembly and deployment in commercial embedded systems.

Request a quote or submit an inquiry to receive pricing and availability information for Z8019520FSG.
