SQCPJC Series – 14.0MM X 9.8MM Plastic SMD Quick Turn 4 Pad CMOS Oscillator
3D Product View
Features
• ±25ppm (Frequency Stability) Available
• Plastic J-Lead Package
• CMOS
• Programmed Oscillator
• Tape and Reel
Applications
• Micro Processors
• FPGA
• Storage Area/Networking
• Digital Video
• Portable Computers
Part Number Builder
Please choose your parameters to build a part number:

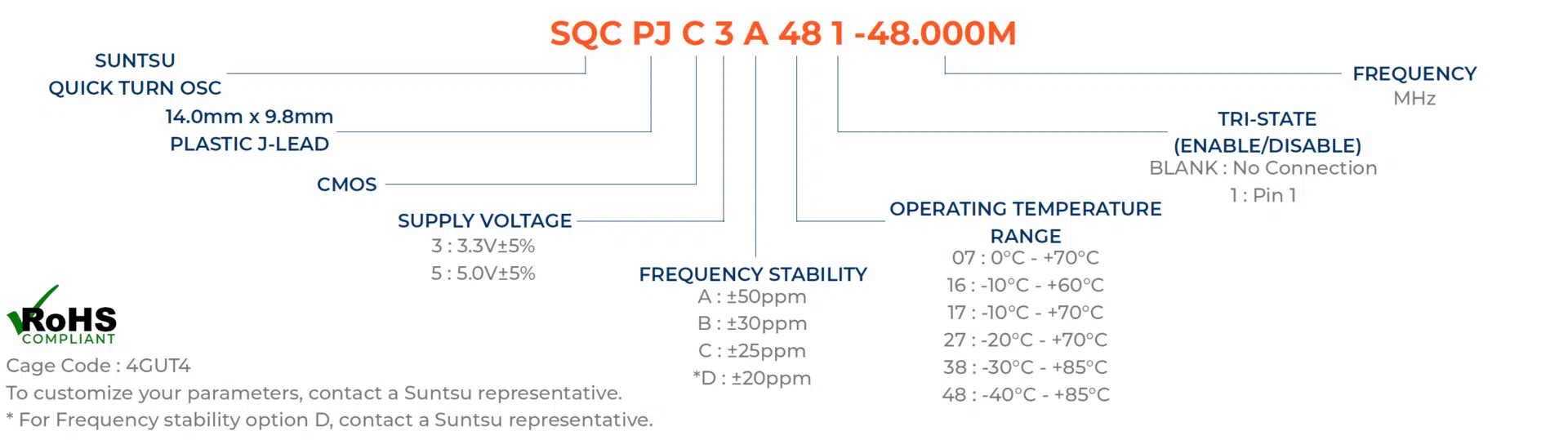

Part Numbering Guide
Electrical Parameters
| Parameters | Units | Min | Typical | Max | Remarks |
|---|---|---|---|---|---|
| Frequency Range | MHz | 1 | 133 | ||
| Frequency Stability (Includes Initial Tolerance at 25°C, Frequency Stability over Operating Temperature, Output Load Change, Supply Voltage Change, and First Year Aging at 25°C.) | ppm | -20 | +20 | See part numbering guide for options. | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Storage Temperature | °C | -55 | +125 | ||
| Supply Voltage (VDD) - 3.3V Option | V | 3.125 | 3.3 | 3.465 | |
| Supply Voltage (VDD) - 3.3V Option | V | 4.750 | 5.0 | 5.250 | |
| Current (IDD) - 3.3V Option | mA | 25 | |||
| Current (IDD) - 5.0V Option | mA | 45 | |||
| Output Load (CMOS) | pF | 15 | |||
| Output Logic Levels High (VOH) | V | 0.9*VDD | |||
| Output Logic Levels Low (VOL) | V | 0.1*VDD | |||
| Rise (TR) and Fall (TF) Time | ns | 4 | |||
| Symmetry (Duty Cycle) | % | 45 | 50 | 55 | |
| Tri-State Input Voltage - 3.3V - Enable | V | 0.7*VDD | No Connection | ||
| Tri-State Input Voltage - 3.3V -Disable | V | 0.3*VDD | No Connection | ||
| Tri-State Input Voltage - 5.0v - Enable | V | 2.0 | |||
| Tri-State Input Voltage - 5.0v -Disable | V | 0.8 | |||
| Start-Up Time | ms | 10 | |||
| Phase Jitter (12kHz ~ 20MHz) | ps | 11 |

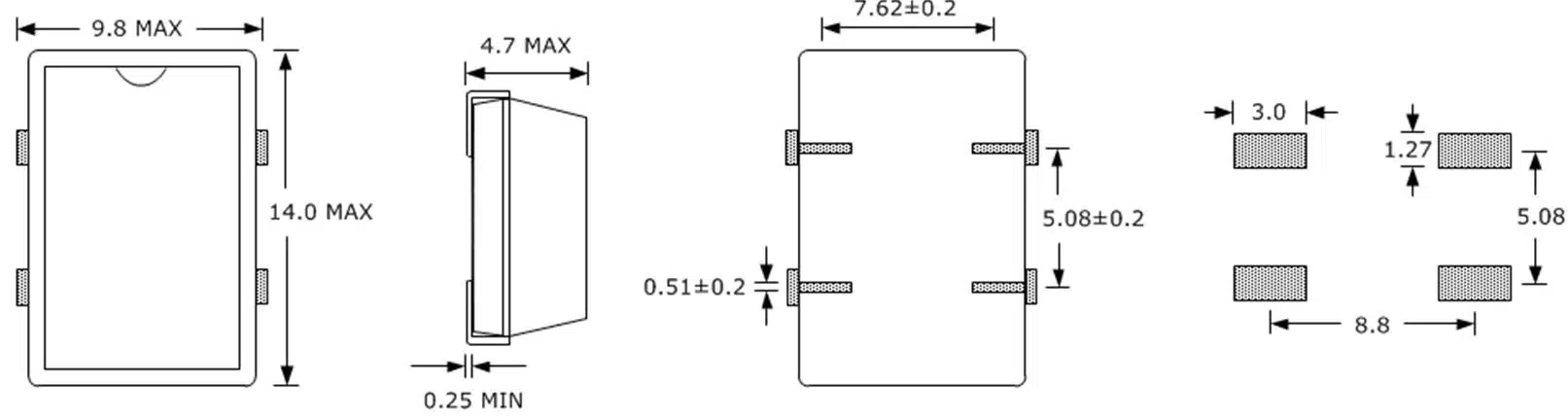

Outline Drawing & Recommended Landed Pattern
All dimensions are in millimeters (mm) unless otherwise noted. Drawings are not to scale.
