10AX057K4F35I3LG

The 10AX057K4F35I3LG is an Intel Arria 10 GX field programmable gate array implementing a 20‑nm mid‑range FPGA architecture. It combines high logic density, extensive embedded memory, and flexible I/O to support demanding midrange applications across wireless, wireline, broadcast, computing, medical and defense markets.

Designed for performance and power efficiency, this industrial‑grade device provides integrated transceiver and hard IP capabilities alongside on‑chip memory and programmable logic, enabling system designers to accelerate high‑bandwidth, compute‑intensive functions while maintaining power and thermal control.

Key Features

• Logic Capacity — 570,000 logic elements, providing substantial programmable fabric for complex combinational and sequential designs.
• Embedded Memory — 42,082,304 total RAM bits to support large buffering, caching and on‑chip data structures.
• I/O and SerDes — 396 user I/Os and support for low‑power serial transceivers and transceiver channels, enabling high‑speed external interfaces and board‑level connectivity.
• Hard IP and Interfaces — Integrated PCIe Gen1/Gen2/Gen3 hard IP and enhanced PCS hard IP with support for Interlaken and 10 Gbps Ethernet as documented for the Arria 10 family.
• Power and Operating Range — Core supply range of 870 mV to 930 mV and industrial operating temperature from −40 °C to 100 °C for deployment in temperature‑sensitive environments.

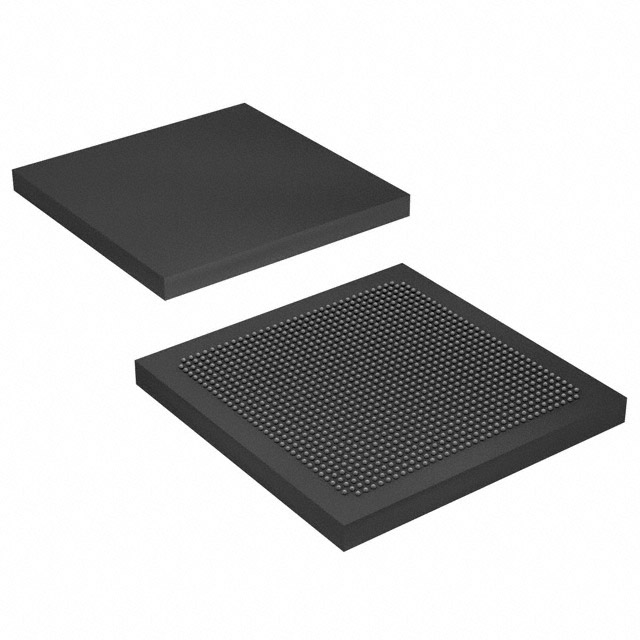

• Package and Mounting — 1152‑FCBGA (35 × 35 mm) supplier package, surface‑mount device suitable for compact, high‑density PCB designs.
• Reconfiguration and Reliability — Supports dynamic and partial reconfiguration and SEU error detection and correction mechanisms as described in Arria 10 documentation, enabling runtime flexibility and improved system resilience.
• Compliance — RoHS compliant.

Typical Applications

• Wireless infrastructure — Channel and switch cards in remote radio heads and mobile backhaul implementations where programmable logic and high throughput are required.
• Wireline networking — 40G/100G muxponders, transponders and 100G line cards that benefit from integrated high‑speed interfaces and hard IP.
• Broadcast and media — Studio switching, transport and professional audio/video processing leveraging large on‑chip memory and logic for data handling and formatting.
• Compute and storage acceleration — Flash cache, server acceleration and cloud computing tasks that require programmable acceleration and substantial on‑device memory.
• Medical and defense systems — Diagnostic imaging, radar and electronic warfare applications that need industrial temperature operation and high logic/memory resources.

Unique Advantages

• High logic density: 570,000 logic elements enable implementation of large custom accelerators and complex state machines on a single device.
• Large on‑chip memory: Over 42 million RAM bits reduce dependence on external memory for buffering and real‑time data processing.
• High‑bandwidth connectivity: 396 I/Os combined with low‑power serial transceivers and hard IP for PCIe and 10 Gbps Ethernet simplify integration of high‑speed links.
• Industrial temperature rating: −40 °C to 100 °C operation supports deployment in harsh or temperature‑variable environments.
• Compact, manufacturable package: 1152‑FCBGA (35×35) surface‑mount package balances density and board‑level integration for space‑constrained systems.
• Programmability and runtime flexibility: Support for dynamic and partial reconfiguration enables in‑field updates and resource reuse without full system downtime.

Why Choose 10AX057K4F35I3LG?

The 10AX057K4F35I3LG Arria 10 GX FPGA positions itself as a scalable, power‑aware solution for midrange systems that require significant programmable logic, abundant on‑chip memory, and robust high‑speed I/O. Its combination of 20‑nm architecture, integrated hard IP, and industrial operating range makes it suitable for network, broadcast, compute acceleration, and mission‑critical applications.

Backed by Arria 10 device documentation and Intel's device family resources, this device is well suited to designers seeking a balance of performance, integration and deployment flexibility while keeping BOM and board complexity under control.

Request a quote or submit a pricing request for the 10AX057K4F35I3LG to get availability and volume pricing details tailored to your project needs.
