5962-9957401QXA

The 5962-9957401QXA is a Virtex® QPro™ FPGA from AMD designed for military-grade embedded designs. It provides a through-hole 28-CDIP (0.300", 7.62mm) package, a wide operating temperature range, and a balance of logic capacity, RAM, and I/O suitable for demanding environments.

This device targets applications that require robust temperature performance and a high number of I/O and logic resources, offering a programmable platform for custom digital logic, signal processing, and control functions.

Key Features

• Logic Capacity  27,648 logic elements to implement complex programmable logic and custom digital architectures.
• On-Chip Memory  131,072 total RAM bits for buffering, state storage, and local data handling within the FPGA fabric.
• I/O Density  404 user I/O pins to interface with multiple peripherals, sensors, and external devices.
• Gate Count  1,124,022 gates indicating substantial functional integration potential on a single device.
• Power  Operating supply range of 2.375 V to 2.625 V to match system power domains.

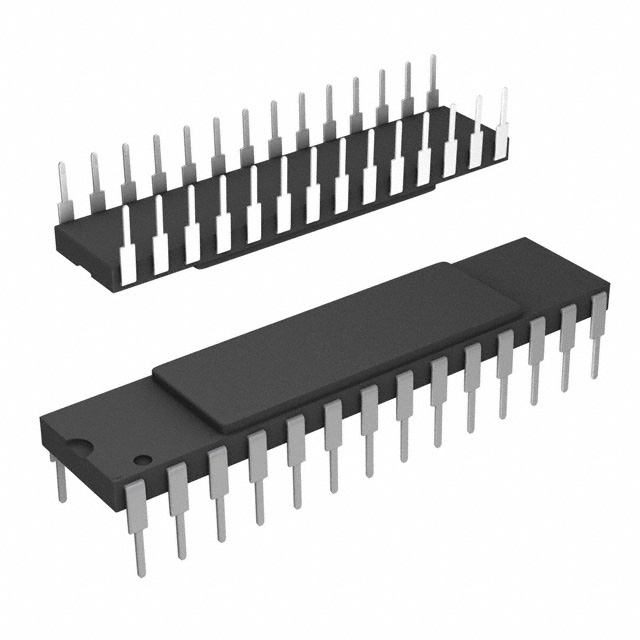

• Package  28-pin CDIP through-hole package (0.300", 7.62mm) for applications requiring socketed or hand-inserted assemblies.
• Temperature and Grade  Military-grade device rated for −55°C to 125°C operation, suitable for harsh-environment electronics.
• Environmental Compliance  RoHS compliant.

Typical Applications

• Military and Aerospace Electronics  Military-grade temperature rating and robust packaging make this FPGA suitable for avionics, radars, and mission-critical electronics.
• Rugged Embedded Systems  Through-hole CDIP packaging and wide temperature range are useful where mechanical stress, serviceability, or legacy board layouts are factors.
• High-Density I/O Control  With 404 I/O pins, it supports systems that require extensive peripheral interfacing and signal routing.
• Custom Signal Processing  Substantial logic elements and on-chip RAM enable implementation of tailored digital signal processing blocks and control algorithms.

Unique Advantages

• Substantial Logic Resources: 27,648 logic elements enable implementation of complex designs without multiple devices.
• Significant On-Chip Memory: 131,072 RAM bits reduce external memory dependency for many buffering and stateful functions.
• High I/O Count: 404 I/O pins provide flexibility to connect numerous sensors, actuators, and high-speed interfaces.
• Military Temperature Rating: Rated −55°C to 125°C for reliable operation in extreme environments.
• Through-Hole Package: 28-CDIP (0.300", 7.62mm) supports socketed installation, field replaceability, and compatibility with legacy assemblies.
• Regulatory Compliance: RoHS compliance supports environmentally conscious procurement and manufacturing.

Why Choose 5962-9957401QXA?

The 5962-9957401QXA positions itself as a robust, military-grade FPGA option combining substantial logic capacity, on-chip RAM, and a high I/O count in a through-hole package. It is suited to designers who need programmable flexibility alongside wide temperature tolerance and serviceable mounting.

For projects requiring a balance of integration and ruggedness—such as aerospace, defense, and other harsh-environment embedded systems—this AMD Virtex® QPro™ device delivers verifiable specifications that support long-term deployment and maintainability.

Request a quote or submit an inquiry to obtain pricing and availability for the 5962-9957401QXA.
