A54SX32A-2TQ100I

The A54SX32A-2TQ100I is an SX-A family FPGA in a 100-pin quad-flat package designed for industrial-temperature embedded designs. It delivers a deterministic, nonvolatile single-chip programmable logic solution with a balance of logic capacity, I/O density and mixed-voltage I/O support for board-level and system integration tasks.

Built for applications that require in-system programmability, secure programming and predictable timing, this device combines 48,000 system gates with 2,880 logic elements and 81 user I/Os in a surface-mount 100-pin package.

Key Features

• Logic Capacity — 48,000 system gates and 2,880 logic elements provide substantial combinational and sequential logic resources for glue logic, custom peripherals and control functions.
• User I/O — 81 user-programmable I/Os in the 100-pin package support mixed-voltage interfaces and board-level connectivity.
• Performance (SX-A family) — Family-level performance includes up to 250 MHz system performance and 350 MHz internal performance; this part uses the –2 speed grade for increased performance relative to standard.
• Configurable Mixed-Voltage I/O — Supports 3.3 V / 5 V PCI signals, 5 V TTL, 3.3 V LVTTL and 2.5 V LVCMOS2; family features include 5 V input tolerance and 5 V drive strength for flexible interfacing.
• Nonvolatile Single-Chip Architecture — The SX-A family is offered as a nonvolatile single-chip solution with features for secure programming and in-system configuration.
• System and Test Support — Hot-swap compliant I/Os, power-up/power-down friendly operation (no supply sequencing required) and IEEE 1149.1 boundary-scan (JTAG) support simplify system integration and test.
• Security and Diagnostics — Family-level Actel Secure Programming Technology with FuseLock and in-system diagnostic/verification capability via Silicon Explorer II provide protection and visibility for deployed designs.
• Industrial Temperature Grade — Rated for operation from −40°C to 85°C, suitable for industrial environments.

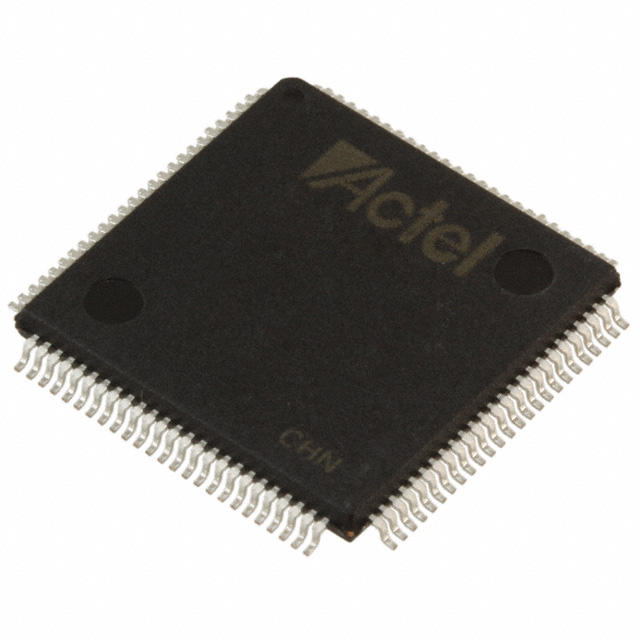

• Package & Mounting — Surface-mount 100-LQFP package case; supplier package referenced as 100-TQFP (14×14).
• Supply Voltage — Flexible supply range from 2.25 V to 5.25 V to support a wide variety of system architectures.
• RoHS Compliant — Device is RoHS compliant for environmental and manufacturability considerations.

Typical Applications

• Industrial control and automation — Deterministic logic capacity and industrial temperature rating make this FPGA suited for board-level control, protocol handling and custom I/O in automation systems.
• PCI and legacy bus interfacing — Family-level 66 MHz PCI compliance and mixed-voltage I/O support enable bridging and interface logic for PCI-based designs and legacy bus integration.
• Embedded system glue logic — Use the device to consolidate glue logic, peripheral controllers and custom state machines, reducing BOM and PCB routing complexity.
• Secure programmable logic — Built-in secure programming and in-system verification features support IP protection and controlled field updates for critical applications.

Unique Advantages

• Nonvolatile, single-chip programmability: Eliminates external configuration memory and simplifies board design and power sequencing.
• Flexible mixed-voltage I/O: Direct support for 2.5 V, 3.3 V and 5 V signaling with 5 V tolerance enables simpler interfacing to a wide range of peripherals and legacy devices.
• Industrial temperature capability: Rated −40°C to 85°C for deployment in harsher environments where commercial-grade parts are not suitable.
• Built-in security and diagnostics: FuseLock secure programming and Silicon Explorer II in-system diagnostics provide IP protection and faster in-field validation.
• Deterministic timing and testability: Family features include deterministic, user-controllable timing and IEEE 1149.1 boundary-scan for predictable performance and easier manufacturing test.
• Compact, surface-mount package: 100-pin quad-flat package simplifies placement on compact PCBs while offering 81 user I/Os for practical system I/O needs.

Why Choose A54SX32A-2TQ100I?

The A54SX32A-2TQ100I pairs significant logic density — 48,000 system gates and 2,880 logic elements — with 81 user I/Os and flexible mixed-voltage I/O support, making it a practical choice for embedded designs that require predictable timing, secure in-system programmability and industrial-temperature operation. Its nonvolatile single-chip architecture and family-level tool support for in-system diagnostics and security simplify system integration and field maintenance.

This device is positioned for engineering teams and procurement tasked with consolidating custom logic, implementing protocol interfaces (including PCI-capable boards) or protecting IP in programmable hardware while maintaining a compact, surface-mount footprint and industrial temperature rating.
