AGL030V2-CSG81

The AGL030V2-CSG81 is an IGLOO Field Programmable Gate Array (FPGA) IC from Microchip Technology that provides a compact, commercial-grade programmable logic solution. It delivers 768 logic elements and approximately 30,000 gates in a small surface-mount package.

With a 1.14 V to 1.575 V supply range, 66 user I/O pins, RoHS compliance and an operating temperature range of 0 °C to 70 °C, this device is suited to commercial embedded designs that require programmable logic in a confined footprint.

Key Features

• Core Logic 768 logic elements (cells) and approximately 30,000 gates provide mid-range programmable logic capacity for control, glue-logic and interface tasks.
• I/O Capacity 66 user I/O pins support connection to peripherals, sensors and external interfaces within compact systems.
• On-Chip Memory Total RAM Bits: 0 — this part does not include embedded on-chip RAM.
• Power Operates from a 1.14 V to 1.575 V supply, enabling low-voltage designs and compatibility with modern power rails.

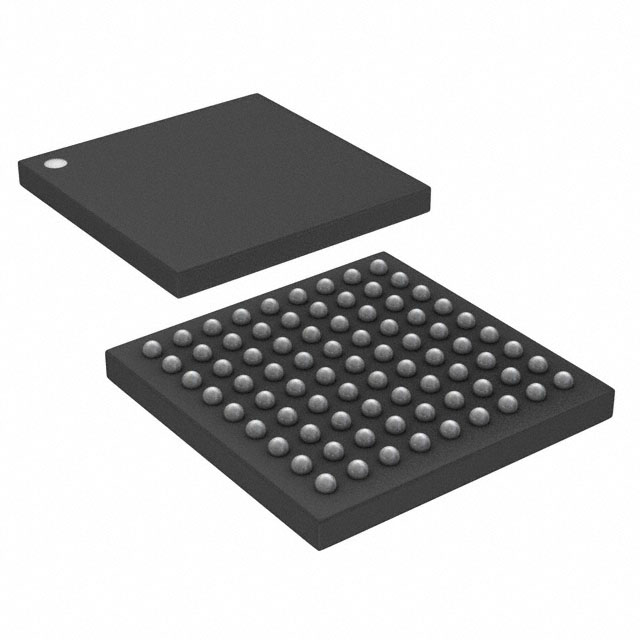

• Package & Mounting Available in an 81-WFBGA (CSBGA) package and listed supplier device package 81-CSP (5×5); surface-mount mounting type simplifies PCB assembly in space-constrained boards.
• Environmental & Temperature Commercial operating temperature range of 0 °C to 70 °C and RoHS compliance for and international environmental requirements.

Typical Applications

• Compact Embedded Systems Use as programmable logic for control, timing and interfacing within space-limited commercial electronic products.
• Interface and Glue Logic Implement protocol bridging, signal conditioning and peripheral interfacing using available I/O and logic resources.
• Low-Voltage Designs Integrate into systems that operate on 1.14 V–1.575 V rails to match modern power architectures.

Unique Advantages

• Balanced Logic Capacity: 768 logic elements and ~30,000 gates offer a mid-range resource set for a broad set of commercial applications.
• Compact, Surface-Mount Packaging: 81-CSP (5×5) / 81-WFBGA package options enable high-density board layouts and simplified assembly.
• Low-Voltage Operation: 1.14 V to 1.575 V supply range allows integration with modern low-voltage systems and rails.
• Commercial-Grade Suitability: Rated for 0 °C to 70 °C operation, appropriate for typical commercial electronic environments.
• RoHS Compliant: Meets RoHS requirements for environmentally conscious product designs.

Why Choose AGL030V2-CSG81?

The AGL030V2-CSG81 delivers a practical combination of mid-range logic capacity, moderate I/O count and compact packaging for commercial embedded designs. Its low-voltage operation and surface-mount CSP/WFBGA package make it a strong candidate where board space and power constraints are priorities.

Backed by Microchip Technology as the manufacturer and specified for RoHS compliance, this part is suitable for teams needing a programmable logic device for commercial applications that demand reliable, compact, and low-voltage-capable solutions.

Request a quote or submit an inquiry to check pricing and availability for the AGL030V2-CSG81 and to discuss how it fits your design requirements.
