AGL125V5-CSG196I

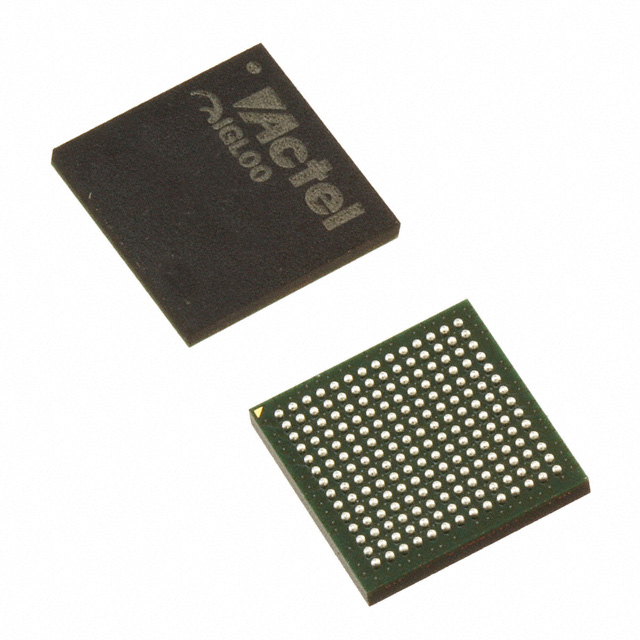

The AGL125V5-CSG196I is an IGLOO Field Programmable Gate Array (FPGA) IC designed for industrial applications. It provides a balance of logic capacity, on-chip memory, and I/O resources in a compact 196-TFBGA (CSBGA) package.

With 3,072 logic elements, 36,864 bits of embedded RAM and 133 I/O pins, this device targets designs that require moderate programmable logic, flexible interfacing, and operation across an industrial temperature range while operating from a defined core voltage rail.

Key Features

• Core Logic  3,072 logic elements delivering 125,000 equivalent gates for implementing custom digital logic and control functions.
• Embedded Memory  36,864 bits of on-chip RAM (approximately 0.037 Mbits) for buffering, state storage, and small lookup tables.
• I/O Resources  133 available I/O pins to support multiple peripheral interfaces and board-level connectivity.
• Power  Defined supply range of 1.425 V to 1.575 V for the device core to simplify power-supply design and integration.
• Package and Mounting  196-TFBGA, CSBGA package (supplier device package: 196-CSP 8×8) in a surface-mount form factor for compact PCB layouts.
• Temperature and Grade  Industrial-grade operation from –40°C to 85°C to meet common industrial environmental requirements.
• Compliance  RoHS-compliant to support lead-free manufacturing processes.

Typical Applications

• Industrial Automation  Implement custom control logic, signal processing, and I/O interfacing within industrial systems that require industrial temperature operation.
• Embedded System Integration  Provide glue logic, protocol bridging, and custom peripheral control using available logic elements and 133 I/Os.
• Test and Measurement Equipment  Use on-chip memory and programmable logic for data buffering, real-time processing, and custom measurement functions.

Unique Advantages

• Compact, high-density package: The 196-TFBGA CSBGA footprint enables a small PCB footprint while maintaining substantial logic and I/O resources.
• Balanced logic and memory: 3,072 logic elements paired with 36,864 bits of embedded RAM support a wide range of mid-scale designs without external RAM.
• Defined core voltage: A narrow supply range (1.425 V–1.575 V) simplifies power-supply selection and system integration.
• Industrial temperature rating: Operation from –40°C to 85°C supports deployment in typical industrial environments.
• RoHS-compliant: Suitable for lead-free manufacturing processes and modern assembly workflows.

Why Choose AGL125V5-CSG196I?

The AGL125V5-CSG196I positions itself as a practical, industrial-grade FPGA solution for designs needing a moderate number of logic elements, on-chip memory, and substantial I/O in a compact surface-mount package. Its defined core voltage and industrial temperature range make it suitable for engineers focused on reliable deployment in industrial and embedded systems.

This device is appropriate for customers who require scalable programmable logic with predictable power and footprint characteristics, helping to reduce BOM complexity and streamline board-level integration.

Request a quote or submit an inquiry to receive pricing and availability information for the AGL125V5-CSG196I. Our team can assist with part selection and ordering details.
