AGLN010V5-UCG36

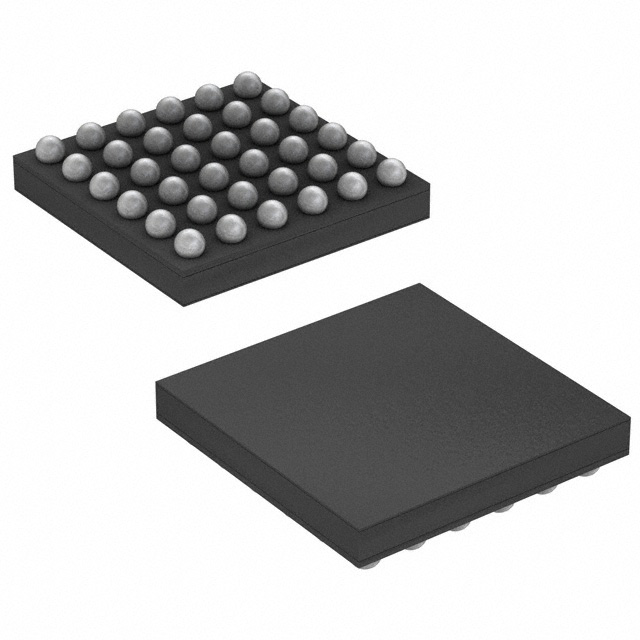

The AGLN010V5-UCG36 is a Microchip Technology IGLOO nano Field Programmable Gate Array (FPGA) provided in a compact 36‑WFBGA (36‑UCSP, 3×3) surface‑mount package. It delivers a small, commercial‑grade programmable logic element with a low-voltage supply and a limited I/O count for space‑constrained embedded designs.

With 260 logic elements (approximately 10,000 gates), 23 I/O pins, and a supply range of 1.425 V to 1.575 V, this device is positioned for commercial embedded applications that require a compact, low‑voltage FPGA solution within an operating range of −20 °C to 85 °C.

Key Features

• Core & logic capacity — 260 logic elements and approximately 10,000 equivalent gates provide basic programmable logic capability for small-scale functions and control logic.
• I/O count — 23 user I/O pins suitable for low‑pin‑count interfacing and signal control in compact designs.
• On‑chip memory — Total on‑chip RAM: 0 bits (no embedded RAM).
• Power — Operating supply voltage range of 1.425 V to 1.575 V to match low‑voltage system rails.
• Package & mounting — 36‑WFBGA (36‑UCSP, 3×3) surface‑mount package for compact PCB integration and reduced board area.
• Grade & temperature — Commercial grade device rated for −20 °C to 85 °C operation.
• Environmental compliance — RoHS compliant.

Typical Applications

• Commercial embedded systems — Compact programmable logic for control, sequencing, and glue‑logic tasks in commercial products.
• Space‑constrained electronics — Small 3×3 UCSP package and surface‑mount mounting make it appropriate for designs with strict board‑area limits.
• Low‑voltage systems — Integration into systems operating near 1.5 V rails where a low‑voltage FPGA is required.

Unique Advantages

• Compact footprint: 36‑UCSP (3×3) package minimizes PCB area for tight layouts.
• Low‑voltage operation: Narrow supply range (1.425 V to 1.575 V) aligns with low‑voltage system rails.
• Appropriate logic sizing: 260 logic elements and ~10,000 gates deliver right‑sized programmable capacity for small control and glue‑logic functions.
• Commercial temperature rating: Specified for −20 °C to 85 °C operation to match typical commercial application environments.
• RoHS compliant: Meets standard environmental requirements for modern electronics manufacturing.

Why Choose AGLN010V5-UCG36?

The AGLN010V5-UCG36 is a compact, commercial‑grade IGLOO nano FPGA from Microchip Technology designed for applications that require a small surface‑mount programmable device with low‑voltage operation. Its combination of 260 logic elements, 23 I/Os, and a 36‑UCSP package makes it well suited for space‑limited embedded designs that need modest programmable logic capacity.

Choose this device when a concise, RoHS‑compliant FPGA is needed to integrate control logic in commercial electronics within an operating window of −20 °C to 85 °C and a supply rail near 1.5 V.
