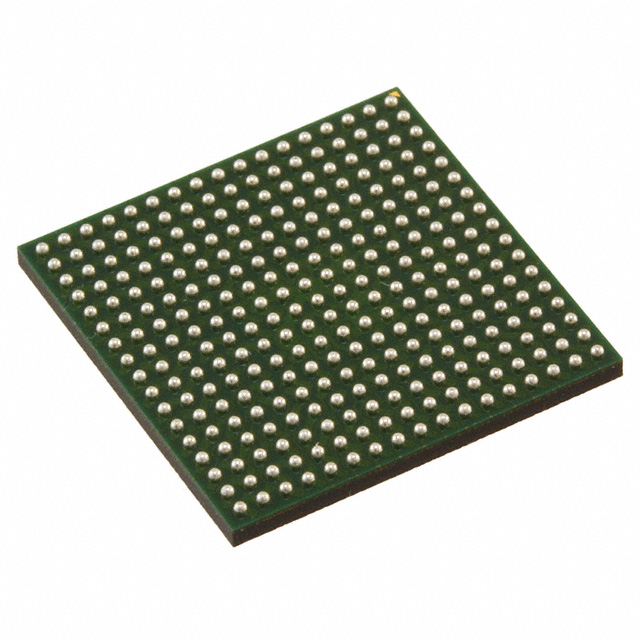

AGLP060V5-CSG289I
| Part Description |
IGLOO PLUS Field Programmable Gate Array (FPGA) IC 157 18432 1584 289-TFBGA, CSBGA |
|---|---|
| Quantity | 354 Available (as of May 5, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 289-CSP (14x14) | Grade | Industrial | Operating Temperature | -40°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 289-TFBGA, CSBGA | Number of I/O | 157 | Voltage | 1.425 V - 1.575 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | RoHS Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 1584 | Number of Logic Elements/Cells | 1584 | ||
| Number of Gates | 60000 | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 18432 |
Overview of AGLP060V5-CSG289I – IGLOO PLUS FPGA, 60,000 System Gates, 289-TFBGA
The AGLP060V5-CSG289I is an IGLOO PLUS flash-based Field Programmable Gate Array (FPGA) from Microchip Technology. Built on a 130 nm flash process, this device delivers 60,000 system gates with 1,584 logic elements and approximately 18 kbits of embedded RAM in a compact 289-TFBGA (289-CSP, 14×14) surface-mount package.
Targeted at industrial applications, the device combines nonvolatile flash configuration, low-power modes (including Flash*Freeze), and flexible I/O for mixed-voltage systems, making it suitable for designs that require reprogrammability, low standby power, and robust thermal range from −40 °C to 100 °C.
Key Features
- Core & Logic — 60,000 system gates with 1,584 logic elements (versatiles/D‑FF resources) supporting reprogrammable FPGA designs and medium-density logic implementation.
- Embedded Memory — Approximately 18 kbits (18,432 bits) of on-chip SRAM organized in true dual-port blocks and supported SRAM/FIFO configurations for data buffering and state storage.
- Nonvolatile Flash Configuration — Flash-based configuration stores design data on-chip and enables Instant On behavior; includes 1 kbit of on-chip reprogrammable FlashROM for user storage.
- Low-Power Modes — Flash*Freeze technology enables ultra-low power retention; AGLP060 devices specify ~10 μW typical in Flash*Freeze and support low-power active/static idle modes for system power management.
- I/O Flexibility — 157 user I/Os with bank-selectable voltages and support for mixed 1.2V/1.5V/1.8V/2.5V/3.3V signaling and programmable output drive and slew control.
- Clock Conditioning & Performance — Integrated clock conditioning circuitry with PLL support; device family performance includes up to 250 MHz in 1.5V systems (device-level performance per system conditions).
- Security & In-System Programming — ISP capability with on-chip 128-bit AES decryption via JTAG and FlashLock feature for protecting FPGA contents.
- Industrial Grade Packaging & Temperature — Surface-mount 289-TFBGA (289-CSP, 14×14) package with operating temperature range −40 °C to 100 °C and RoHS compliance.
Typical Applications
- Industrial Control and Automation — Implement motor control logic, state machines, and deterministic I/O interfacing while meeting industrial temperature and packaging requirements.
- Low-Power Embedded Systems — Use Flash*Freeze and low-power active modes to retain configuration and minimize standby energy for battery-assisted or energy-conscious designs.
- Secure In-System Updates — Leverage on-chip AES ISP and FlashLock protection to update firmware and configuration securely over JTAG in the field.
- Mixed-Voltage Sensor and I/O Hubs — Aggregate and condition signals from varied voltage domains with bank-selectable I/O support and programmable drive strength.
Unique Advantages
- Reprogrammable Nonvolatile Memory: Flash-based configuration retains the programmed design when powered off, enabling Instant On and field reprogramming.
- Low Standby Power: Flash*Freeze mode reduces retention power to approximately 10 μW, supporting systems that require minimal idle power consumption.
- Compact, High‑I/O Package: 289-TFBGA (14×14) package provides 157 user I/Os in a small surface-mount footprint, helping reduce PCB area and BOM complexity.
- Industrial Temperature Range: Rated for −40 °C to 100 °C operation, suitable for demanding environments where thermal robustness is required.
- Integrated Security and ISP: On-chip 128-bit AES decryption for JTAG-based ISP and FlashLock technology protect IP and enable secure field updates.
Why Choose AGLP060V5-CSG289I?
The AGLP060V5-CSG289I positions itself as a medium-density, low-power FPGA optimized for industrial designs needing nonvolatile configuration, secure in-system updates, and mixed-voltage I/O flexibility. With 60k system gates, 1,584 logic elements, approximately 18 kbits of embedded RAM, and Flash*Freeze low-power capability, it is well suited for control, monitoring, interface aggregation, and security-conscious embedded applications.
Designed and manufactured by Microchip Technology and delivered in a compact 289-TFBGA surface-mount package, this device offers a balance of performance, integration, and long-term reprogrammability for engineers seeking a robust FPGA solution for industrial and embedded designs.
Request a quote or submit an inquiry for pricing and availability of the AGLP060V5-CSG289I.
