AGLP060V5-CS289

The AGLP060V5-CS289 is an IGLOO PLUS Field Programmable Gate Array (FPGA) manufactured by Microchip Technology, packaged in a 289-TFBGA/CSBGA (289-CSP, 14×14) surface-mount format. It provides programmable logic, embedded memory, and a substantial I/O count for compact digital designs.

Key device capacities include 1,584 logic elements, approximately 18,432 bits of on-chip RAM, and 157 I/O pins, with a supply voltage range of 1.425 V to 1.575 V and a commercial operating temperature range of 0 °C to 85 °C.

Key Features

• Core Logic 1,584 logic elements (logic cells) delivering roughly 60,000 gates of combinational/sequential logic capacity for custom digital functions.
• Embedded Memory Approximately 18,432 bits of on-chip RAM suitable for small buffers, state storage, and local data scratchpad.
• I/O Resources 157 general-purpose I/O pins provide flexible interfacing options for peripherals, sensors, and buses.

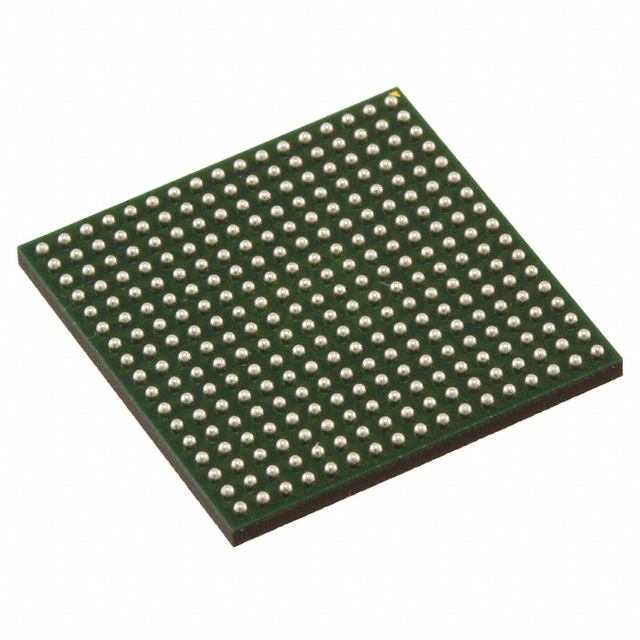

• Package & Mounting 289-TFBGA, CSBGA package (supplier device package: 289-CSP, 14×14) designed for surface-mount PCB assembly to support space-constrained layouts.
• Power Operates from a defined supply range of 1.425 V to 1.575 V to match targeted system power rails.
• Temperature & Grade Commercial grade device with an operating temperature range of 0 °C to 85 °C.
• Regulatory RoHS compliant.

Typical Applications

• Custom Logic Integration Implement bespoke digital functions and glue logic using the device's 1,584 logic elements and 60,000-gate capability.
• I/O-Intensive Interfaces Use the 157 I/O pins to aggregate signals and reduce external interface components.
• Embedded Buffering and State Storage Leverage approximately 18,432 bits of on-chip RAM for small FIFOs, buffers, or state machines.
• Compact Board Designs The 289-TFBGA (14×14) surface-mount package supports dense PCB layouts where board space is constrained.

Unique Advantages

• Right-sized logic capacity: Provides 1,584 logic elements and about 60,000 gates for moderate-complexity digital designs without excess overhead.
• Ample I/O availability: 157 I/O pins enable direct connectivity to numerous peripherals and reduce dependence on external multiplexing.
• Compact, manufacturable package: 289-TFBGA/CSBGA (289-CSP, 14×14) surface-mount format supports automated assembly and dense board integration.
• Predictable power envelope: Narrow supply range (1.425–1.575 V) simplifies power-supply selection and margin planning.
• Commercial-temperature operation: Rated for 0 °C to 85 °C, suitable for a wide range of commercial and industrial-adjacent applications.
• RoHS compliant: Meets common environmental compliance requirements for electronic assemblies.

Why Choose AGLP060V5-CS289?

AGLP060V5-CS289 combines a balanced set of programmable logic resources, embedded memory, and a high I/O count in a compact 289-TFBGA surface-mount package. Its defined supply range and commercial temperature rating make it suitable for designs that need reliable, medium-density FPGA capability from a reputable manufacturer, Microchip Technology.

This part is well suited to engineers and procurement teams designing compact boards that require integrated logic, modest embedded memory, and extensive I/O, offering a focused solution that aligns device capability with system-level needs.

Request a quote or submit an inquiry to purchase AGLP060V5-CS289 through your preferred distributor or Microchip sales channels.
