AGLP125V5-CSG289I

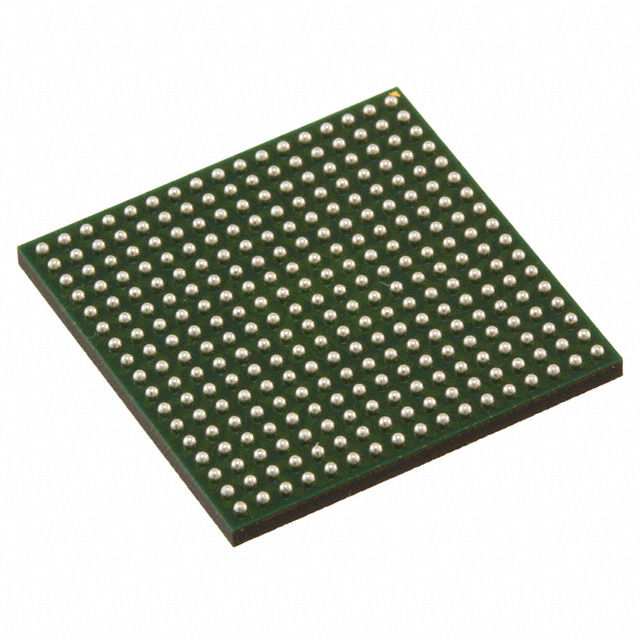

The AGLP125V5-CSG289I is an IGLOO PLUS Field Programmable Gate Array (FPGA) supplied in a 289-TFBGA (CSBGA) package. It provides a moderate logic capacity with 3,120 logic elements, approximately 36,864 bits of embedded memory and support for 212 I/O pins, making it suitable for industrial embedded designs that require configurable logic and substantial I/O integration.

Designed for surface-mount assembly, this industrial-grade device operates from a core supply range of 1.425 V to 1.575 V and across an operating temperature range of –40 °C to 100 °C, enabling deployment in temperature-demanding environments while maintaining compact BGA packaging.

Key Features

• Core Logic  3,120 logic elements providing reconfigurable logic capacity with an overall gate equivalent count of 125,000 gates for mid-density designs.
• Embedded Memory  Approximately 36,864 bits of on-chip RAM for buffering, small tables, and state storage within the FPGA fabric.
• I/O  212 I/O pins to support multi-signal interfaces and flexible board-level connectivity.
• Power  Core voltage supply specified at 1.425 V to 1.575 V for reliable power domain definition and system integration.
• Package & Mounting  289-TFBGA (CSBGA) surface-mount package; supplier device package noted as 289-CSP (14×14) for compact PCB footprint.
• Temperature & Grade  Industrial grade operation with an ambient range of –40 °C to 100 °C suitable for temperature-challenging deployments.

Unique Advantages

• Balanced logic and memory density: 3,120 logic elements with approximately 36,864 bits of embedded RAM supports mid-range programmable tasks without excessive board-level memory.
• High I/O count: 212 programmable I/Os enable integration of multiple external interfaces and signals directly to the FPGA fabric.
• Industrial temperature rating: Specified operation from –40 °C to 100 °C for designs targeting harsher environmental conditions.
• Compact BGA footprint: 289-TFBGA/289-CSP (14×14) packaging allows dense PCB layouts while maintaining surface-mount assembly compatibility.
• Defined power domain: Narrow core supply range (1.425 V–1.575 V) simplifies power supply selection and regulator design.

Why Choose AGLP125V5-CSG289I?

The AGLP125V5-CSG289I positions itself as a mid-density, industrial-grade FPGA option where a balance of logic elements, embedded RAM, and a high I/O count is required. Its specified operating temperature range and compact 289-TFBGA package make it appropriate for embedded systems that demand configurability and robust thermal performance.

Choose this device for designs that require a reprogrammable logic element with substantial I/O capability, a controlled core voltage domain, and an industrial operating envelope. Its combination of on-chip resources and BGA packaging supports compact, reliable implementations in industrial electronics and embedded control systems.

Request a quote or submit an inquiry to receive pricing and availability for the AGLP125V5-CSG289I.
