AGLP125V5-CS289I

The AGLP125V5-CS289I is an IGLOO PLUS Field Programmable Gate Array (FPGA) from Microchip Technology offering 3,120 logic elements, 36,864 bits of on-chip RAM, and up to 212 I/O. Provided in a 289-TFBGA (CSBGA) package and specified for industrial use, it targets embedded designs that require a compact, I/O-capable FPGA with defined logic and memory resources.

With an operating temperature range of −40 °C to 100 °C and a narrow supply voltage window, this device is suited to industrial environments where predictable electrical and thermal behavior is required.

Key Features

• Logic Capacity — 3,120 logic elements providing a fixed resource set for implementing custom logic, state machines, and small to medium-scale combinational/sequential functions.
• Embedded Memory — Total on-chip RAM of 36,864 bits (approximately 36.9 Kbits) for local data storage, buffering, and small lookup-table requirements.
• I/O Density — Up to 212 I/O pins suitable for dense peripheral interfacing, sensor connections, and multi-channel digital I/O tasks.
• Gate Count — Approximately 125,000 gates to describe overall device scale and integration potential.
• Power — Single supply voltage specified from 1.425 V to 1.575 V for core operation, enabling defined power-domain planning in system designs.

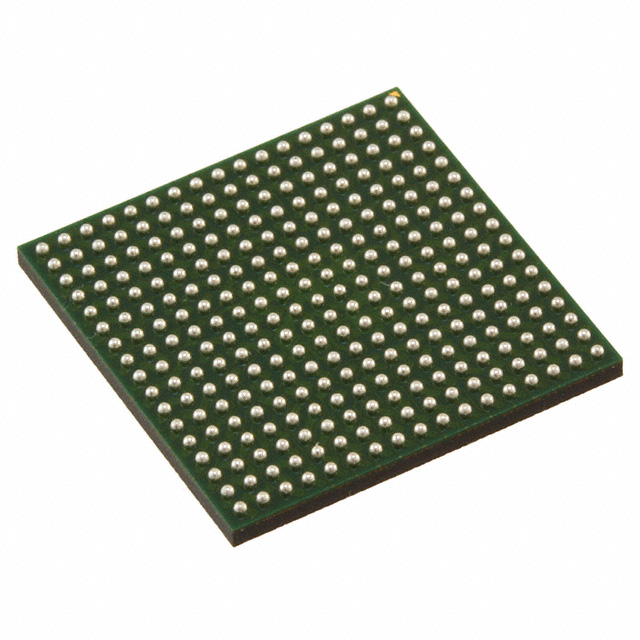

• Package and Mounting — 289-TFBGA (CSBGA) supplier device package 289-CSP (14×14), surface-mount mounting type for compact PCB integration.
• Industrial Temperature Range — Rated for operation from −40 °C to 100 °C to meet industrial thermal requirements.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Industrial Control — Implement control logic, I/O aggregation, and interface bridging in industrial automation where reliable temperature and supply specifications are required.
• Embedded System Integration — Use the on-chip RAM and 3,120 logic elements to implement glue logic, protocol adaptation, or custom peripheral functions within compact embedded products.
• Sensor and I/O Aggregation — Leverage up to 212 I/O pins to gather and preprocess signals from multiple sensors or channels before passing data to a host processor.

Unique Advantages

• Deterministic Resource Set: Known counts for logic elements, RAM bits, gates, and I/O simplify capacity planning and design partitioning.
• Industrial Specification: Rated −40 °C to 100 °C, enabling deployment in thermally demanding industrial environments.
• Compact Surface-Mount Package: 289-TFBGA (14×14) package supports high-density PCB layouts while providing ample I/O for integration.
• Defined Low-Voltage Core: 1.425 V to 1.575 V supply range allows precise power-domain design and predictable electrical behavior.
• RoHS Compliant: Meets environmental requirements for lead-free assembly and regulatory compliance in many regions.

Why Choose AGLP125V5-CS289I?

The AGLP125V5-CS289I positions itself as an industrial-grade IGLOO PLUS FPGA suited for designs that require a predictable, compact programmable logic device with moderate logic, memory, and high I/O count. Its clearly defined resources and operating limits help engineers scope and implement control, interfacing, and embedded logic functions with confidence.

Backed by Microchip Technology, this FPGA is appropriate for teams and projects that prioritize deterministic hardware resources, compact packaging, and operation across a wide industrial temperature range.

Request a quote or submit an inquiry to receive pricing and availability information for the AGLP125V5-CS289I.
