AGLP125V5-CS289

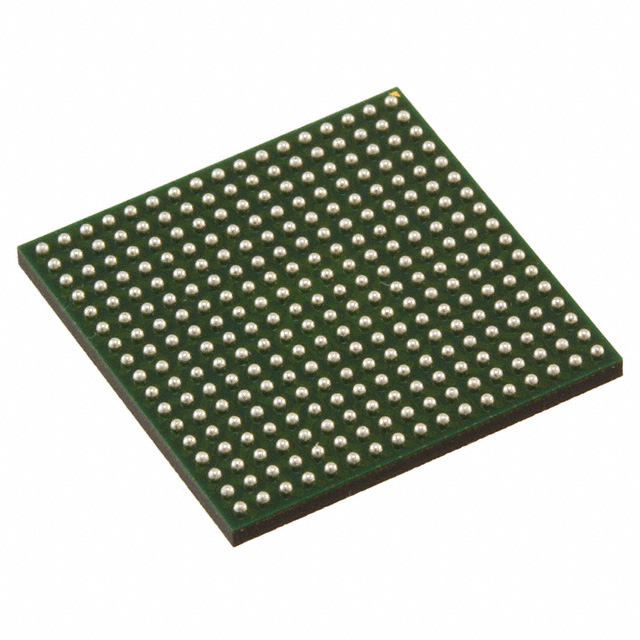

The AGLP125V5-CS289 is an IGLOO PLUS Field Programmable Gate Array (FPGA) IC from Microchip Technology. It delivers a moderate logic capacity with 3,120 logic elements, 36,864 bits of on-chip RAM and a high I/O count, packaged in a compact 289-TFBGA/CSBGA footprint.

Designed for commercial-grade embedded designs, the device provides configurable logic, on-chip memory and extensive I/O capability while operating within a 1.425 V to 1.575 V supply range and a 0 °C to 85 °C temperature window.

Key Features

• Core Logic  3,120 logic elements (cells) supporting custom digital logic implementation across a range of applications.
• Embedded Memory  36,864 bits of on-chip RAM for data buffering, state storage and small lookup tables.
• I/O Density  212 user I/O pins to support extensive peripheral interfacing and parallel connectivity.
• Gate Equivalent  Approximately 125,000 gates of logic capacity for medium-complexity designs.
• Power  Specified supply voltage range of 1.425 V to 1.575 V for core operation.
• Package and Mounting  289-TFBGA (CSBGA) / 289-CSP (14 × 14) supplier device package optimized for surface-mount assembly.
• Operating Range  Commercial temperature grade rated for 0 °C to 85 °C operation.
• Compliance  RoHS compliant for regulatory environmental alignment.

Typical Applications

• Custom Logic Implementation  Implement glue logic, protocol converters or state machines using the device’s 3,120 logic elements.
• I/O Expansion and Interface Bridging  Use the 212 I/O pins to connect and translate between multiple digital peripherals and buses.
• On‑Chip Data Buffering  Leverage 36,864 bits of embedded RAM for small data FIFOs, buffering and lookup storage.
• Compact Embedded Systems  Deploy in space-constrained boards where the 289-TFBGA/CSBGA package and surface-mount mounting are preferred.

Unique Advantages

• Balanced Logic and Memory:  3,120 logic elements combined with 36,864 bits of RAM provide a balanced platform for medium-complexity digital designs.
• High I/O Count:  212 available I/O pins reduce the need for external multiplexers or port expanders, simplifying board-level design.
• Compact Package:  289-TFBGA / 289-CSP (14 × 14) packaging enables high-density placement in compact systems while supporting surface-mount assembly.
• Defined Supply and Temperature Window:  Clear supply voltage range (1.425 V–1.575 V) and commercial temperature rating (0 °C–85 °C) simplify power and thermal planning.
• Regulatory Alignment:  RoHS compliance supports environmentally conscious manufacturing processes.
• Manufacturer Support:  Produced by Microchip Technology, providing access to established manufacturer documentation and resources.

Why Choose AGLP125V5-CS289?

The AGLP125V5-CS289 is positioned for commercial embedded designs that require a moderate amount of configurable logic, substantial I/O availability and on-chip RAM in a compact surface-mount package. Its 3,120 logic elements, 36,864 bits of RAM and 212 I/O pins make it well suited for designs that need flexible digital customization without excessive board-level complexity.

Backed by Microchip Technology and offered in a RoHS‑compliant 289-TFBGA/CSBGA package, this FPGA provides a practical balance of integration and deployability for engineering teams focusing on commercial-grade applications with defined supply and thermal requirements.

Request a quote or submit an inquiry to obtain pricing and availability for the AGLP125V5-CS289.
