AGLP125V2-CSG289I

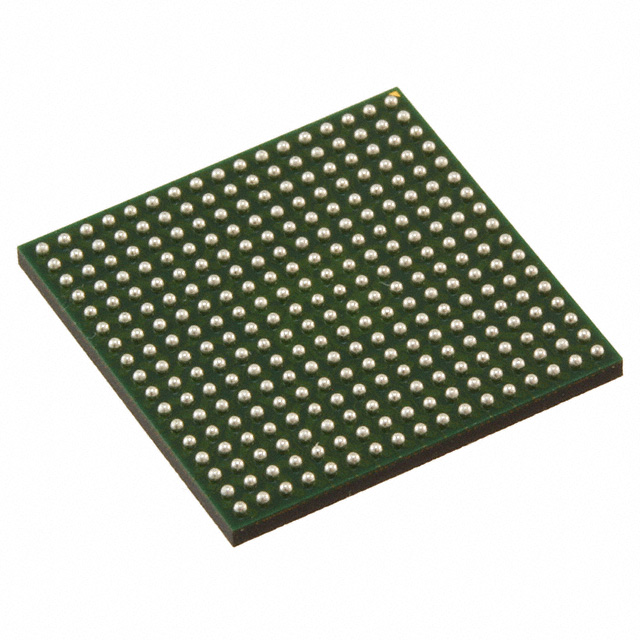

The AGLP125V2-CSG289I is an IGLOO PLUS field programmable gate array (FPGA) IC from Microchip Technology. It provides 3,120 logic elements and 36,864 bits of embedded RAM in a compact surface-mount 289-TFBGA / 289-CSP (14×14) package.

Designed for industrial-grade use, the device offers a broad operating voltage range and wide temperature tolerance to meet demanding board-level designs that require configurable logic, on-chip memory, and a high count of I/O signals.

Key Features

• Core Logic 3,120 logic elements (cells) enable configurable digital logic implementation for custom functions and control logic.
• Embedded Memory 36,864 bits of on-chip RAM provide local storage for state machines, buffers, and small data structures.
• I/O Density 212 general-purpose I/O pins support extensive external interfacing and signal routing directly from the FPGA.
• Gate Count Approximately 125,000 gates for mapping moderately complex logic and glue-logic tasks.
• Power Operates over a supply range of 1.14 V to 1.575 V to match a variety of system power rails.
• Package & Mounting Available in a 289-TFBGA, CSBGA / 289-CSP (14×14) supplier device package for surface-mount PCB assembly.
• Industrial Temperature Range Rated for operation from −40 °C to 100 °C to support extended-temperature applications.
• Regulatory RoHS compliant.

Typical Applications

• Custom Logic and Control Implement state machines and glue logic using 3,120 logic elements and on-chip RAM for compact, board-level solutions.
• High-Density I/O Manage multiple external signals and peripherals with 212 I/O pins, simplifying PCB routing and reducing external components.
• Embedded System Integration Use the device’s gate capacity and embedded memory to consolidate discrete logic and small buffering functions into a single FPGA package.

Unique Advantages

• Balanced Logic and Memory Combines 3,120 logic elements with 36,864 bits of RAM to support integrated logic and local data storage without relying on external memory.
• High I/O Count 212 I/Os reduce the need for external I/O expanders and streamline connections to peripherals and sensors.
• Compact Surface-Mount Package The 289-TFBGA / 289-CSP (14×14) package delivers a high-pin-count solution in a space-efficient footprint for dense PCB layouts.
• Industrial Temperature Rating −40 °C to 100 °C operation provides robustness for designs deployed in extended-temperature environments.
• Flexible Supply Range 1.14 V to 1.575 V support enables compatibility with a variety of system power architectures.
• RoHS Compliant Meets environmental directives for lead-free assembly processes.

Why Choose AGLP125V2-CSG289I?

The AGLP125V2-CSG289I positions as a compact, industrial-grade IGLOO PLUS FPGA that blends a practical logic element count, on-chip RAM, and a high I/O count in a space-conscious BGA package. Its electrical and thermal specifications make it suitable for engineers seeking a configurable silicon building block that integrates logic, memory, and significant I/O directly on-board.

This part is well suited for customers who need a reliable, RoHS-compliant FPGA solution with moderate logic capacity and dense I/O in a surface-mount form factor, delivering long-term value through a balance of integration and rugged operating range.

Request a quote or submit an inquiry to receive pricing and availability for the AGLP125V2-CSG289I.
