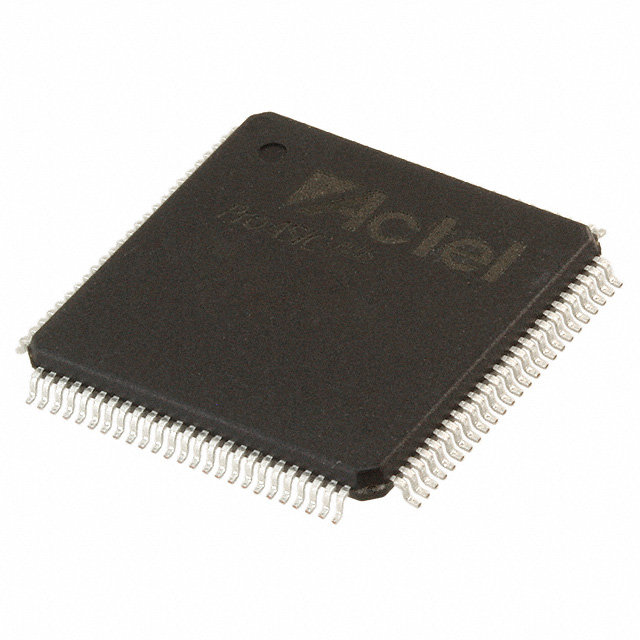

APA150-TQ100

The APA150-TQ100 is a ProASICPLUS Field Programmable Gate Array (FPGA) IC from Microchip Technology, offering a compact, surface-mount solution for programmable logic integration. It provides a balance of logic density, embedded memory, and I/O count suitable for commercial embedded designs that require programmable customization.

With 6,144 logic elements, approximately 0.037 Mbits of on-chip RAM (36,864 bits), 66 I/O pins and a 150,000-gate equivalent logic capacity, this device targets applications that need moderate logic resources in a 100-pin LQFP/TQFP footprint.

Key Features

• Logic Capacity — 6,144 logic elements (approximately 150,000 gates) to implement mid-range programmable logic functions.
• Embedded Memory — Total on-chip RAM of 36,864 bits (approximately 0.037 Mbits) for small data buffering and state storage.
• I/O — 66 user I/O pins to support peripheral interfacing and custom signal routing.
• Supply Voltage — Operates from 2.3 V to 2.7 V, simplifying power-rail planning for compatible systems.
• Package & Mounting — 100-LQFP package case with supplier device package listed as 100-TQFP (14 × 14 mm); surface-mount mounting type for compact PCB integration.
• Operating Range & Grade — Commercial grade with operating temperature range of 0 °C to 70 °C.
• Environmental — RoHS compliant for regulatory alignment in mainstream electronic products.

Typical Applications

• Embedded Control and Glue Logic — Use the APA150-TQ100 to consolidate interface logic and custom control functions in compact electronic systems.
• Prototyping and Development — Implement and validate custom finite-state machines and interfacing logic during product development cycles.
• I/O Expansion and Protocol Bridging — Leverage 66 I/O pins for signal routing, protocol translation, and peripheral aggregation on space-constrained PCBs.
• Low-to-Medium Complexity Signal Processing — Deploy the device for simple filtering, serialization/deserialization, or data-handling tasks that fit within its logic and memory resources.

Unique Advantages

• Balanced Logic and Memory: 6,144 logic elements paired with 36,864 bits of RAM provide a practical mix of resources for many mid-level FPGA tasks.
• Compact Surface-Mount Package: 100-pin LQFP/TQFP footprint enables dense PCB layouts while maintaining accessible I/O counts.
• Straightforward Power Requirements: Narrow supply range (2.3 V–2.7 V) simplifies power-supply design for compatible systems.
• Commercial Temperature Rating: Designed for mainstream consumer and industrial-adjacent electronics with a 0 °C to 70 °C operating range.
• Regulatory Compliance: RoHS compliant to support environmental and manufacturing requirements.

Why Choose APA150-TQ100?

The APA150-TQ100 delivers a pragmatic combination of logic density, embedded memory and I/O capability in a compact 100-pin package, making it well suited for designers who need flexible programmable logic without moving to larger, higher-cost devices. Its commercial-grade temperature range and RoHS compliance align it with mainstream electronic product requirements.

This FPGA is a solid choice for embedded engineers and procurement teams seeking a reliable, mid-capacity programmable device for tasks such as control logic, protocol bridging, and moderate signal-processing workloads where footprint and predictable supply requirements are important.

Request a quote or submit an inquiry to obtain pricing, availability, and ordering information for APA150-TQ100.
