APA150-TQG100

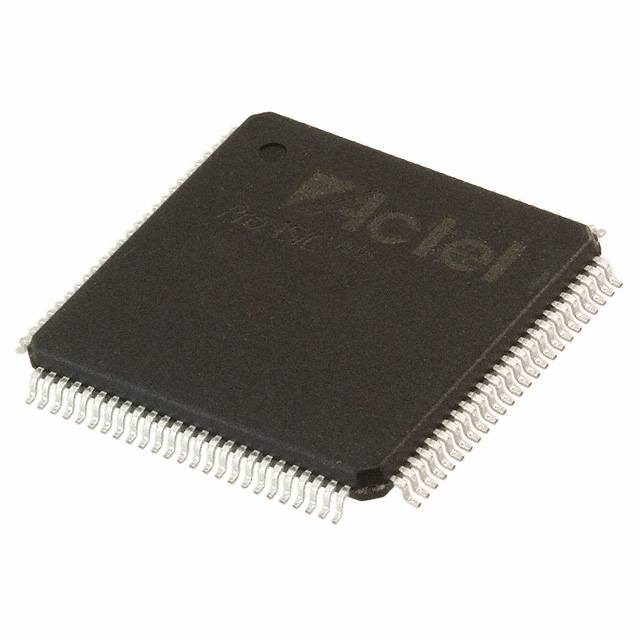

The APA150-TQG100 is a ProASICPLUS Field Programmable Gate Array (FPGA) IC from Microchip Technology. It provides 6,144 logic elements and a total of 36,864 bits of on-chip RAM (approximately 0.037 Mbits), enabling implementation of custom digital logic in a compact package.

Designed for commercial-grade designs, the device offers 66 I/O pins, an estimated 150,000 gates, surface-mount 100-LQFP packaging, RoHS compliance, a 2.3 V–2.7 V supply range and an operating temperature range of 0 °C to 70 °C.

Key Features

• Core Logic 6,144 logic elements and an estimated 150,000 gates provide a mid-range FPGA fabric for implementing custom combinational and sequential logic.
• Embedded Memory Total on-chip RAM of 36,864 bits (approximately 0.037 Mbits) to support small buffers, state machines, and temporary data storage.
• I/O Density 66 general-purpose I/O pins for interfacing to peripherals, sensors, and external logic.
• Supply Voltage Operates from 2.3 V to 2.7 V, allowing integration into low-voltage commercial systems.
• Package & Mounting 100-LQFP (supplier device package: 100-TQFP, 14 × 14 mm) in a surface-mount form factor for PCB-level integration.
• Temperature & Grade Commercial grade operation across 0 °C to 70 °C suitable for standard commercial applications.
• Environmental Compliance RoHS compliant to support regulatory requirements for electronic assemblies.

Typical Applications

• Commercial Embedded Systems — Implement custom logic functions and glue logic in commercial electronic products using the device’s 6,144 logic elements and 66 I/O pins.
• Prototyping and Development — Evaluate and validate mid-range digital designs where compact LQFP packaging and on-chip RAM are appropriate.
• I/O-Intensive Control — Use the available I/O and logic capacity for control interfaces and peripheral aggregation in commercial equipment.

Unique Advantages

• Balanced Logic Capacity: 6,144 logic elements provide a midpoint between small CPLDs and larger FPGAs, simplifying partitioning of mid-complexity designs.
• Integrated On-Chip RAM: 36,864 bits of embedded RAM enable local buffering and state storage without external memory.
• Compact Surface-Mount Package: 100-LQFP (14 × 14 mm) package supports high-density PCB layouts while keeping board footprint modest.
• Low-Voltage Operation: 2.3 V–2.7 V supply range aligns with common commercial power rails for easy integration.
• Commercial Temperature Range: Rated 0 °C to 70 °C for standard commercial deployments and environments.
• RoHS Compliant: Meets environmental compliance requirements for lead-free assembly processes.

Why Choose APA150-TQG100?

The APA150-TQG100 delivers a practical balance of logic resources, I/O count, and compact packaging for commercial-grade digital designs. Its combination of 6,144 logic elements, approximately 36,864 bits of embedded memory, and 66 I/O pins makes it well suited to mid-complexity applications that require on-chip logic and moderate peripheral interfacing.

For engineers and procurement teams building commercial products, the APA150-TQG100 offers predictable electrical and thermal characteristics (2.3 V–2.7 V, 0 °C–70 °C), surface-mount 100-LQFP packaging, and RoHS compliance, supporting efficient integration and long-term maintainability.
